English 7 Assembling the Lawn Mower

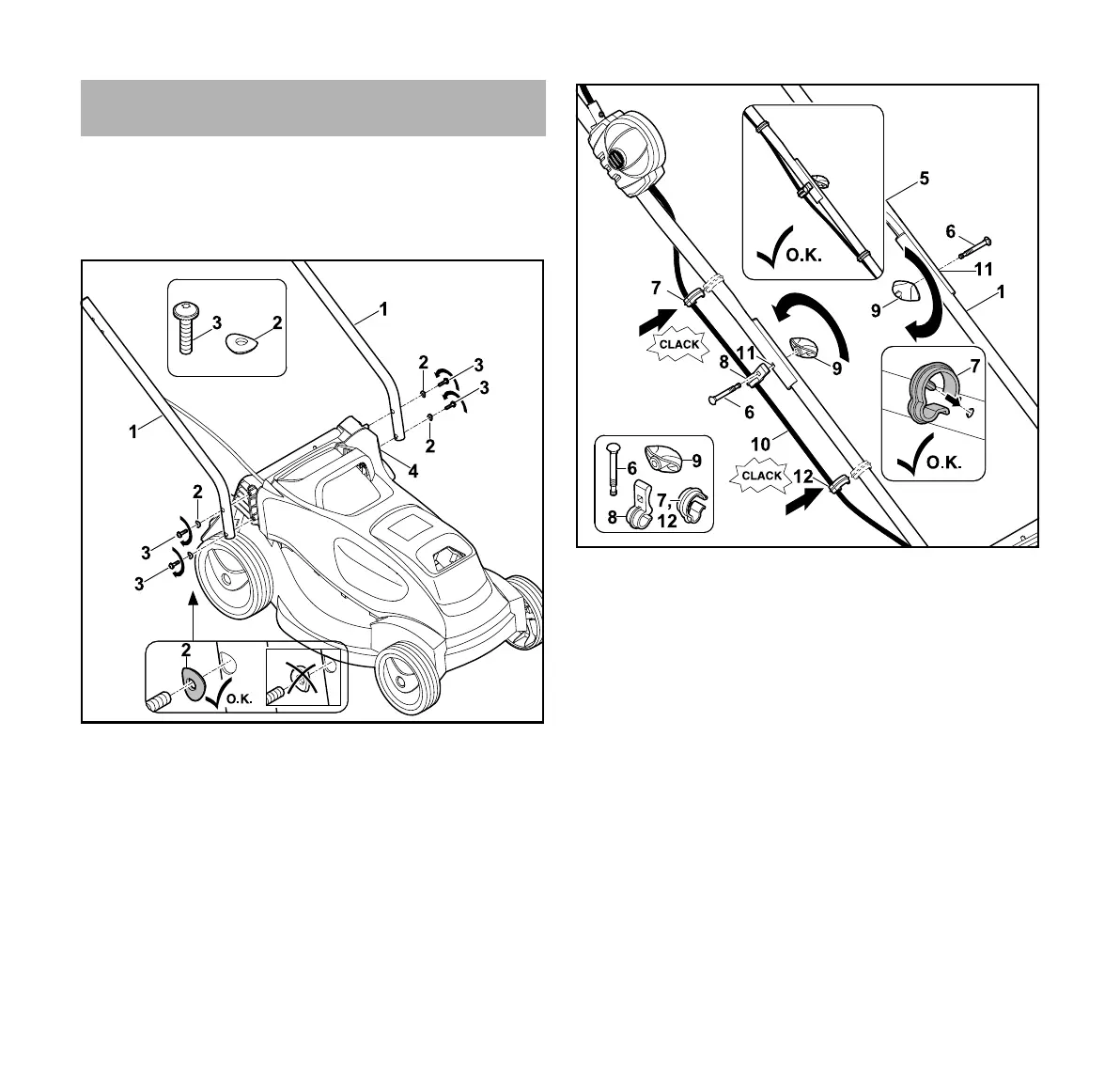

7.1 Attaching the Handlebar
► Switch the lawn mower off, pull out the activation key and
remove the battery.
► Place the lawn mower on a level surface.
► Hold lower handlebars (1) against the lawn mower so the
bores align.
► Push screws (3) together with washers (2) through the
bores in lower handlebar (1) and lawn mower (4) from the
outside inwards, screw in and tighten to 3 Nm.
Both lower handlebars (1) are firmly attached to lawn
mower (4).
► Hold upper handlebar (5) against lower handlebars (1) so
the bores align.
► Place cable (10) into cable clip (8).
► On the side with the cable, push screw (6) through
bores (11) in cable clip (8), upper handlebar (5) and lower
handlebar (1) from the outside inwards.
► On the other side, push screw (6) through bores (11) in
upper handlebar (5) and lower handlebar (1) from the
outside inwards.
► Fit rotary knob (9) onto screws (6) on both sides and
screw in.
Upper handlebar (5) is firmly attached to lower
handlebars (1).
► Place the cable in cable clips (7, 12).
► Press cable clip (7) onto upper handlebar (5) and allow to
engage.
► Press cable clip (12) onto lower handlebar (1) and allow to
engage.
7 Assembling the Lawn Mower

Stihl RMA 235 Specifications

General

Type	Walk behind lawn mower
Cutting width	330 mm
Grass catcher	Yes
Product color	Black, Grey, Orange
Uncertainty K	0.9 m/s²
Housing material	Plastic
Number of wheels	4 wheel(s)
Rotational speed	3400 RPM
Maximum lawn area	- m²
Mulching function	-
Sound power level	89 dB
Handle(s) features	Foldable
Standard deviation	2 dB
Vibration emission	1.8 m/s²
Sound pressure level	87.9 dB
Maximum cutting height	60 mm
Minimum cutting height	25 mm
Grass collecting volume	30 L
Number of height positions	5
Power source	Battery
Power consumption (typical)	450 W

Weight and Dimensions

Weight	14000 g
