0478-131-9541-A
44
español

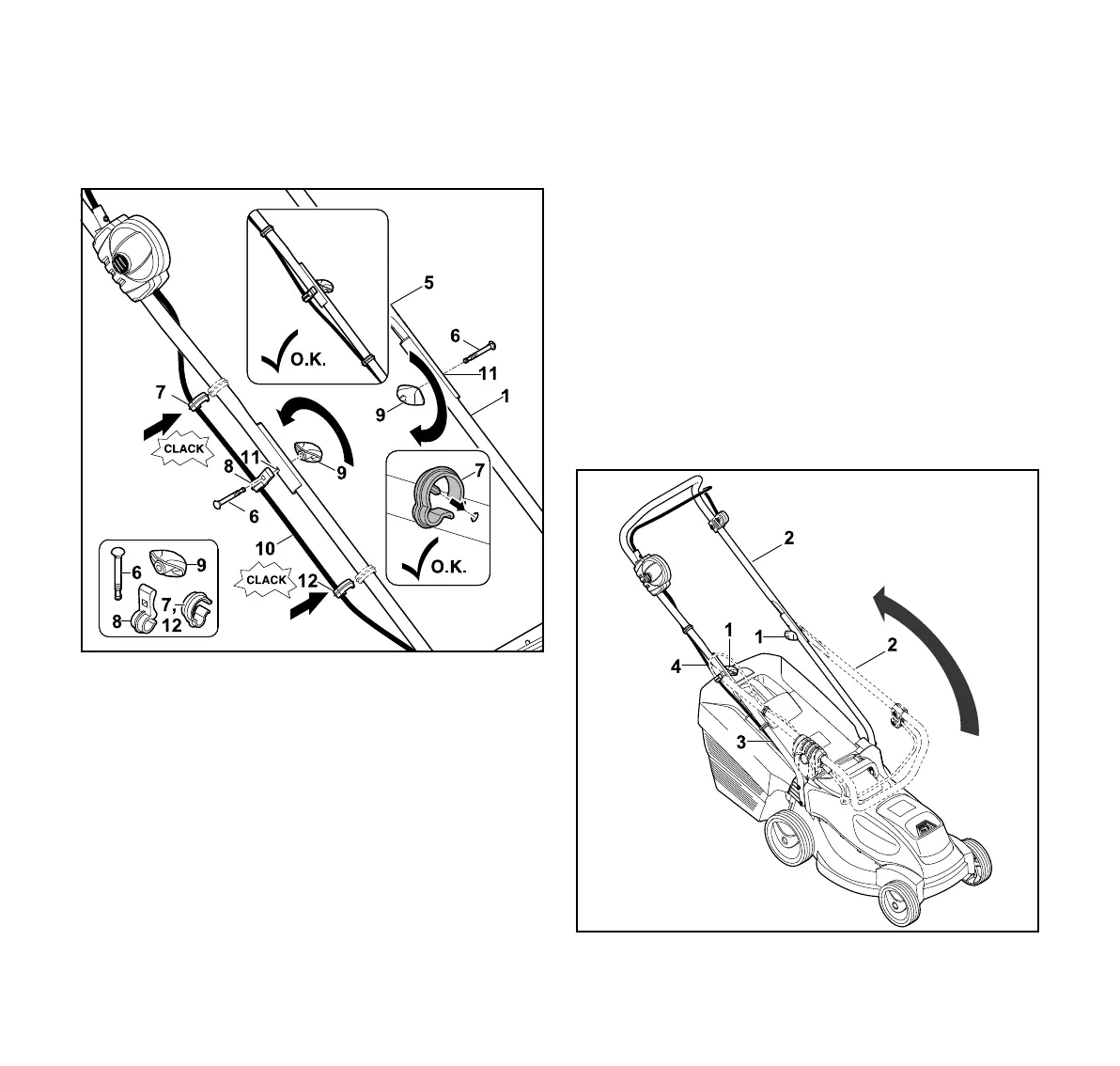

7 Ensamblar el cortacésped
Introducir los tornillos (3) junto con las arandelas (2) de
afuera hacia dentro por los orificios de la parte inferior del
manillar (1) y del cortacésped (4), y apretarlos a 3 Nm.
Ambas partes inferiores del manillar (1) están firmemente
unidas al cortacésped (4).
Sostener la parte superior del manillar (5) al lado de sus
partes inferiores (1) de tal manera que coincidan los
orificios.
Colocar el cable (10) en el clip (8).
En el lado en el que se encuentra el cable, introducir el
tornillo (6) de afuera hacia dentro por los orificios (11) del
clip de cable (8), de la parte superior del manillar (5) y de
la parte inferior del manillar (1).
En el otro lado, introducir el tornillo (6) de afuera hacia
dentro por los orificios (11) de la parte superior (5) e
inferior (1) del manillar.
Colocar el botón giratorio (9) en ambos lados sobre los
tornillos (6) y enroscarlo.
La parte superior del manillar (5) está firmemente unida a
sus partes inferiores (1).
Colocar el cable en los clips (7).
Presionar el clip de cable (7) sobre la parte superior del
manillar (5) hasta que encaje.
Presionar el clip de cable (12) sobre la parte inferior del
manillar (1) hasta que encaje.
El manillar no se tiene que desmontar otra vez.
7.2 Desplegar y plegar el manillar
7.2.1 Desplegar el manillar
Apagar el cortacésped, retirar la llave de seguridad y
sacar la batería.
Colocar el cortacésped sobre una superficie llana.
