Stihl RMA 235 User Manual

0478-131-9541-A
14
English 7 Assembling the Lawn Mower
The handlebar must not be dismantled again.

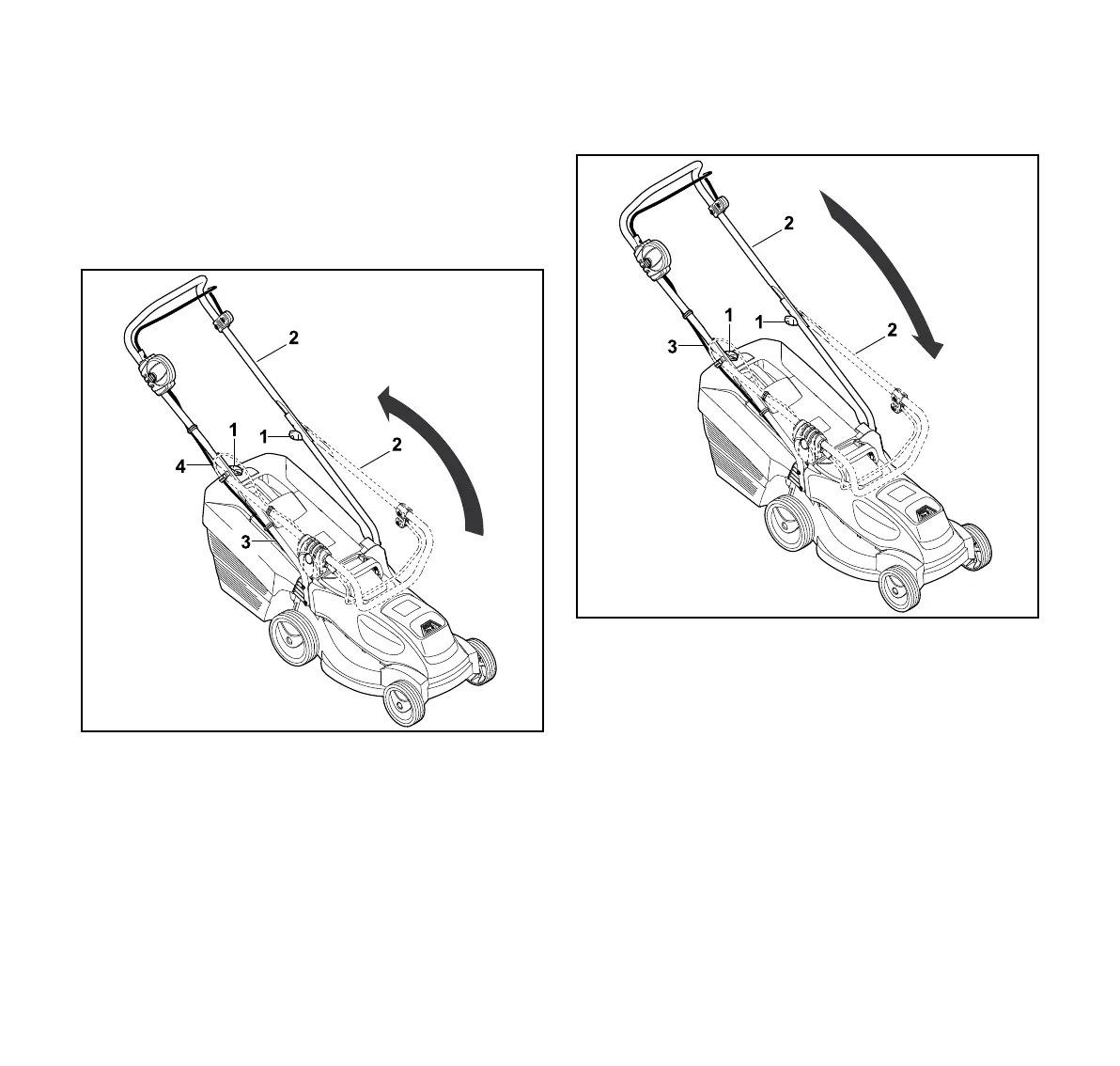

7.2 Folding Up and Folding the Handlebar
7.2.1 Folding Up the Handlebar
► Switch the lawn mower off, pull out the activation key and
remove the battery.
► Place the lawn mower on a level surface.
► Fold up upper handlebar (2) and hold with one hand.
Make sure that cable (4) is not damaged.
► Tighten rotary handles (1).
Handlebar (2) is firmly attached to the lawn mower.
Upper handlebar (2) is firmly attached to lower
handlebar (3).
7.2.2 Folding the Handlebar
The handlebar can be folded for space-saving transport or
storage.
► Switch the lawn mower off, pull out the activation key and
remove the battery.
► Place the lawn mower on a level surface.
► Unscrew rotary handles (1) until they turn freely.
► Fold down upper handlebar (2) forwards, ensuring that
cable (3) is not damaged.

Stihl RMA 235 Specifications

General

Type	Walk behind lawn mower
Cutting width	330 mm
Grass catcher	Yes
Product color	Black, Grey, Orange
Uncertainty K	0.9 m/s²
Housing material	Plastic
Number of wheels	4 wheel(s)
Rotational speed	3400 RPM
Maximum lawn area	- m²
Mulching function	-
Sound power level	89 dB
Handle(s) features	Foldable
Standard deviation	2 dB
Vibration emission	1.8 m/s²
Sound pressure level	87.9 dB
Maximum cutting height	60 mm
Minimum cutting height	25 mm
Grass collecting volume	30 L
Number of height positions	5
Power source	Battery
Power consumption (typical)	450 W

Weight and Dimensions

Weight	14000 g
