Stihl RMA 339 C User Manual

0478 131 8327 B - EN
14

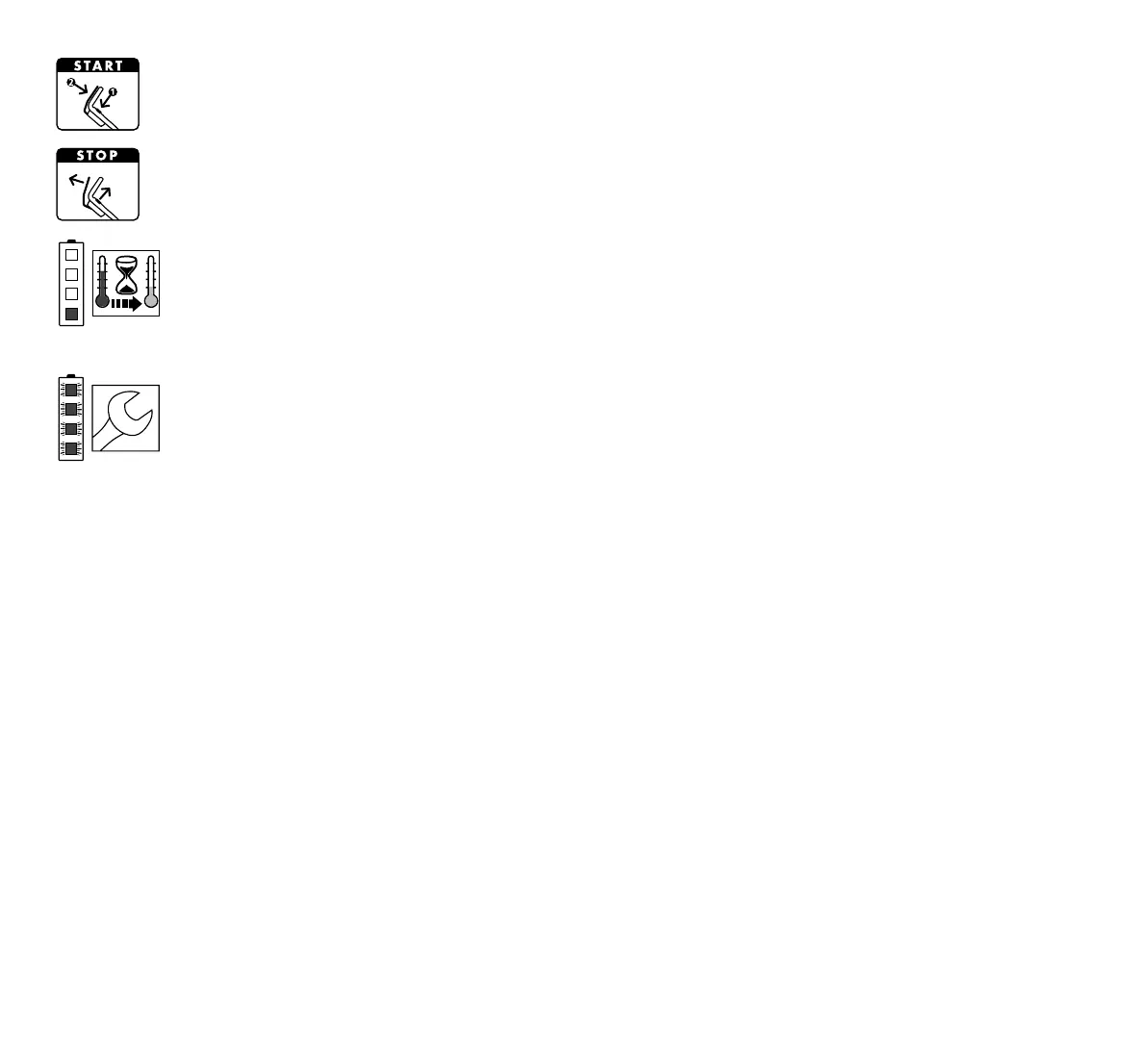

RMA 339 C:
Start the motor.
RMA 339 C:
Switch off the motor.
Battery is overheated.
Charging starts after the
cooling-down period or
the battery can only be
used after the cooling-
down period.
The battery is faulty and
must be replaced.

Stihl RMA 339 C Specifications

General

Type	Walk behind lawn mower
Cutting width	370 mm
Grass catcher	Yes
Product color	Black, Green, Orange
Uncertainty K	0.8 m/s²
Cutting system	Rotary blades
Number of wheels	4 wheel(s)
Rotational speed	3350 RPM
Maximum lawn area	- m²
Mulching function	-
Sound power level	90 dB
Handle(s) features	Foldable
Vibration emission	1.6 m/s²
Rear wheels diameter	180 mm
Sound pressure level	89.4 dB
Front wheels diameter	150 mm
Maximum cutting height	70 mm
Minimum cutting height	30 mm
Grass collecting volume	40 L
Suitable for slope up to	25 °
Power source	Battery
Battery voltage	36 V
Power consumption (typical)	900 W

Weight and Dimensions

Width	420 mm
Height	1070 mm
Weight	16000 g
