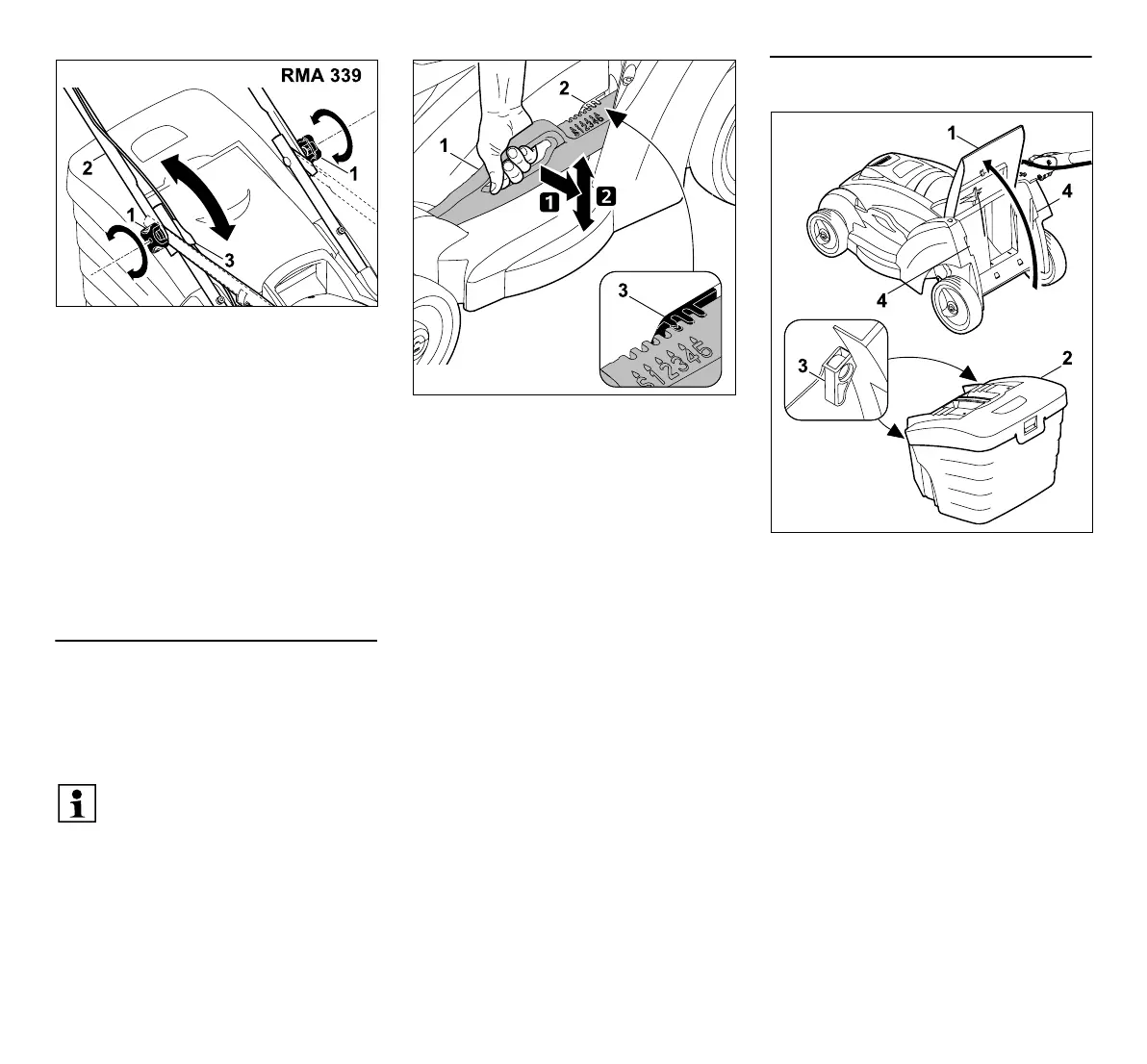

Transport position (for cleaning, for
space-saving transport and for storage of
the machine):
● Loosen rotary handles (1) until they turn
freely.
● Fold down upper handlebar (2)
forwards.
Working position (to push machine):
● Fold up upper handlebar (2) rearwards
and hold with one hand.
● Tighten rotary handles (1). Ensure
correct position of cable guide (3).
9.6 Central cutting height adjustment
Six cutting heights can be selected.
Level S = 20 mm
Level 5 = 70 mm
Setting the cutting height:
● 1 Push height adjustment lever (1)
away from the lawn mower slightly until
the lever is released from locating
lugs (2).
● 2 Raise or lower the lawn mower.
Increasing the cutting height: Raise
the lawn mower using height
adjustment lever (1) (push lever
forwards).
Decreasing the cutting height:
Lower lawn mower using height
adjustment lever (1) (push lever
rearwards).
● Push height adjustment lever (1)
towards the lawn mower slightly until
locating lugs (2) engage in the lever.
The selected cutting height can be read
off at front locating lug (3).
9.7 Grass catcher box
Attaching:
● Open discharge flap (1) and hold it
open.
● Attach grass catcher box (2) to
mountings (4) on the rear of the
machine by means of locating lugs (3).
● Close discharge flap (1).
Detaching:
● Open discharge flap (1) and hold it
open.
● Lift grass catcher box (2) and remove
rearwards.
● Close discharge flap (1).
In order to prevent damage, the
lowest cutting height must only be
used on even lawns (without
bumps).
