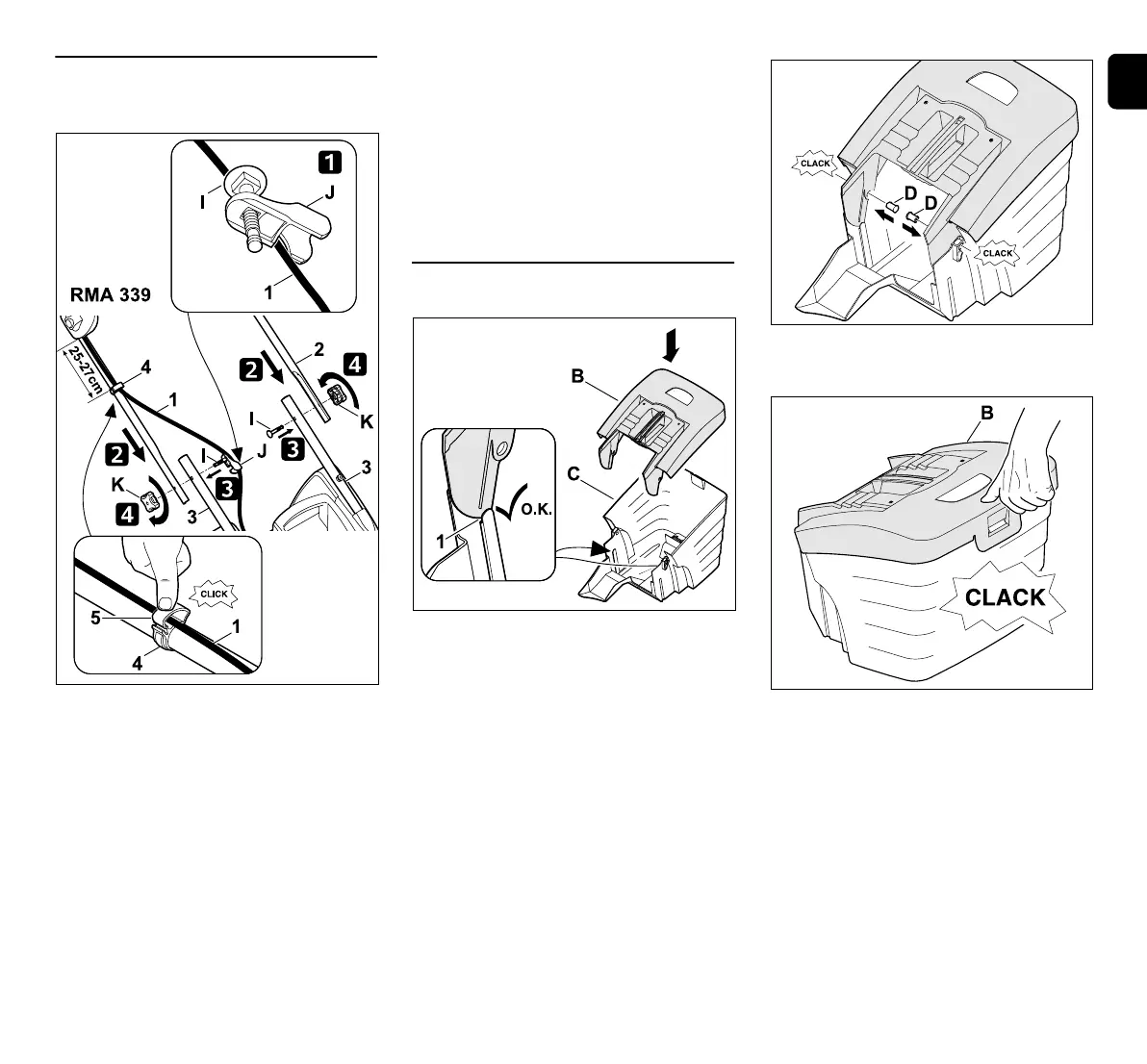

7.3 Installing the dual handlebar
(RMA 339)
Installing the upper handlebar:
1 Insert flat head bolt (I) through cable
guide (J) and attach electric cable (1).
2 Fit dual handlebar (2) onto both
lower handlebar sections (3).
3 Insert flat head bolts (I) – on right
with cable guide (J), on left without –
through the bores from the inside
outwards.
4 Tighten with rotary handles (K).
Installing cable clip:
Install cable clip (4) on the upper
handlebar. Insert electric cable (1) as
shown.
Close tab (5) and allow it to engage.
Distance between the cable clip and
switch:
25 - 27 cm
7.4 Assembling the grass catcher box
Fit upper part of grass catcher box (B)
onto lower part of grass catcher
box (C). Ensure correct location in the
guides.
Push stud (D) through the bores
provided from the inside.
Allow upper part of grass catcher
box (B) to engage in the lower part of
the grass catcher box using slight
pressure.
Attach the grass catcher box (Ö 9.7).
