TS 350 25
Replacing the starter rope
First remove the three screws which retain the fan
housing. Then take off the fan housing.
Use a screwdriver or a suitable pair of pliers to carefully
remove the spring slip (1) from the starter post. Now take
off the thrust washer (2) and pawl (3) and pull the rope
rotor (4) off the starter post. Remove remaining rope from
the rotor and starter grip (5).
Thread the new rope - Part No. 1122 190 2900 - through
the top of the starter grip and down through the guide
bush (6). Pull the rope through the rotor and secure it with
a simple overhand knot.
Slide rotor onto the starter post and turn it back and forth
until the rewind spring's anchor loop (7) engages.

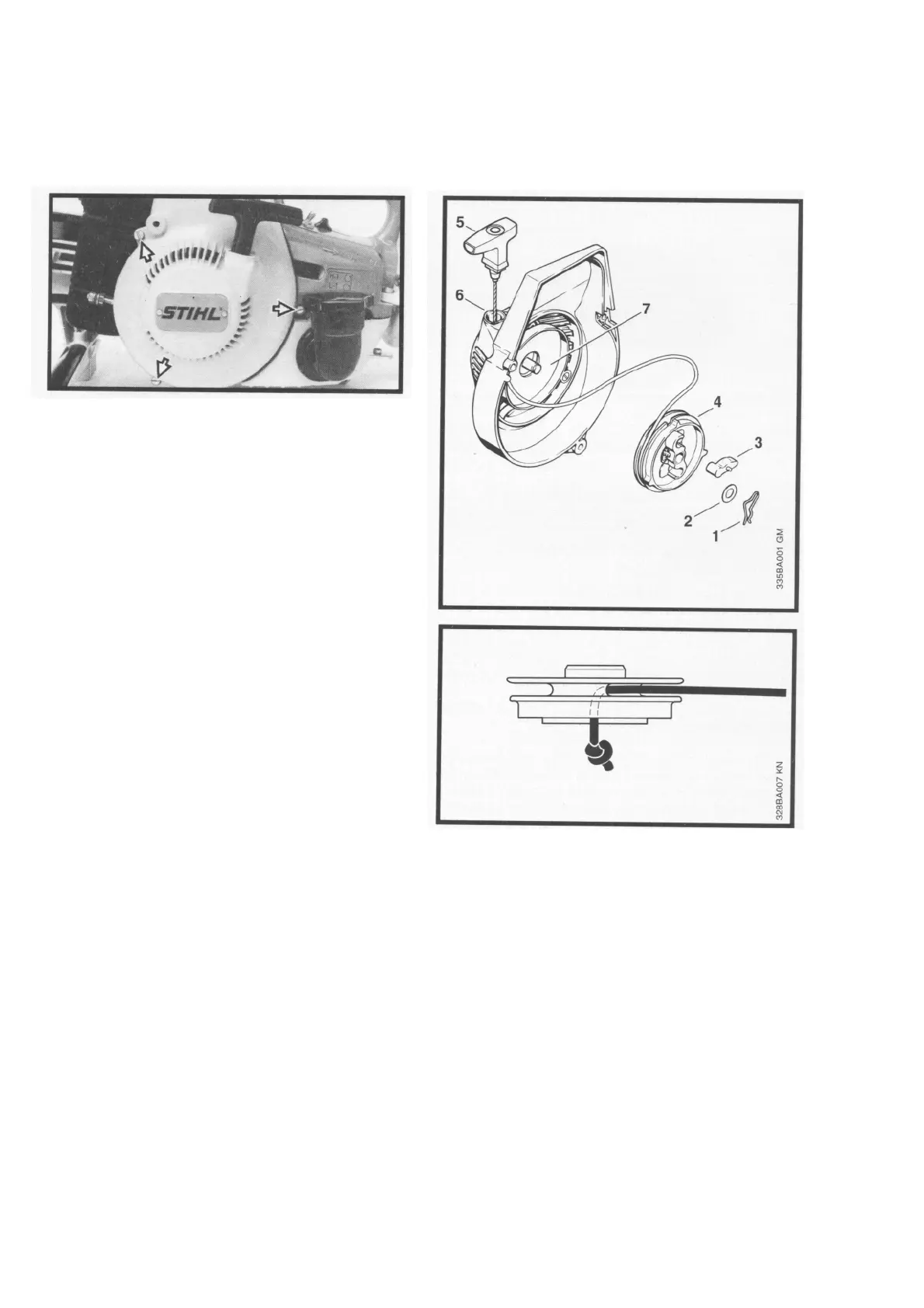

Top: Possible special knots
Bottom: Component parts of the starter assembly
