TS 350 27
Changing the V-belt

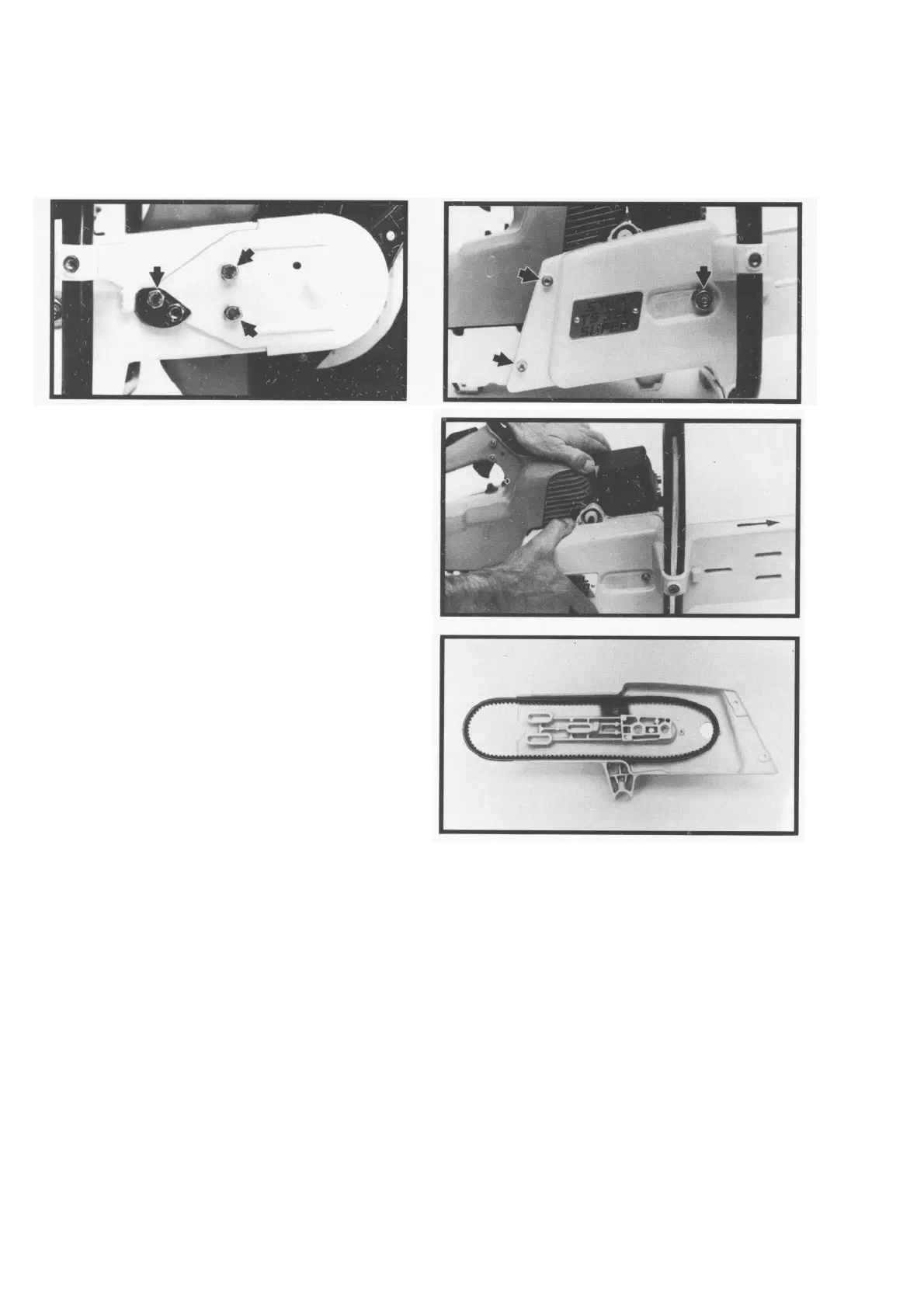

Arbor bearing and guard mounting screws
To change the V-belt, first remove the arbor bearing and
abrasive wheel guard. To do this, unscrew the three
mounting screws, take off the V-belt guard and lift the
arbor bearing and abrasive-blade guard away from the V-
belt.
Now remove the three mounting screws from the cast
arm. Push the engine slightly to one side and take off the
cast arm.
Place the new V-belt in the cast arm (see illustration) and
reassemble. Check the position and freedom of move-
ment of the V-belt before finally tightening the mounting
screws. Refit the arbor bearing and abrasive wheel guard
- refer to "Assembling the Arbor Bearing and Guard" and
"Tensioning the V-belt".
Top: Mounting screws on cast arm
Center: Removing cast arm
Bottom: Cast arm with V-belt
