Stihl TS 420 Original Instruction Manual

Working safely with cut-off machines
English
12
ridges that hold the part that is to be
separated in position. Break these
ridges later
Cutting wheels are exposed to
extremely high loads especially during
freehand cutting.
The cutting wheels, which have been
developed by STIHL in cooperation with
renowned manufacturers of abrasive
wheels, are of high quality and tailored
precisely to the respective intended use
as well as the engine performance of the
cut-off machine.
They are of consistently outstanding
quality.
Transport and storage
– Do not expose cutting wheels to
direct sunshine or other thermal
stresses during transport and
storage
– Avoid jolting and impacts
– Stack cutting wheels flat on a level
surface in the original packaging in
a dry place where the temperature
is as constant as possible
– Do not store cutting wheels in the
vicinity of aggressive fluids
– Store cutting wheels in a frost-free
place
The proper selection and use of
composite resin cutting wheels ensures
economical use and avoids accelerated
wear. The code on the
– label
– of the packaging (table with
recommendations for use) is an aid
to selection
STIHL composite resin cutting wheels
are suitable, depending on the version,
for cutting the following materials:
– Asphalt
– Concrete
– Stone
– ductile cast iron pipes
– Steel
STIHL composite resin cutting wheels
are not suitable for cutting railway
tracks.

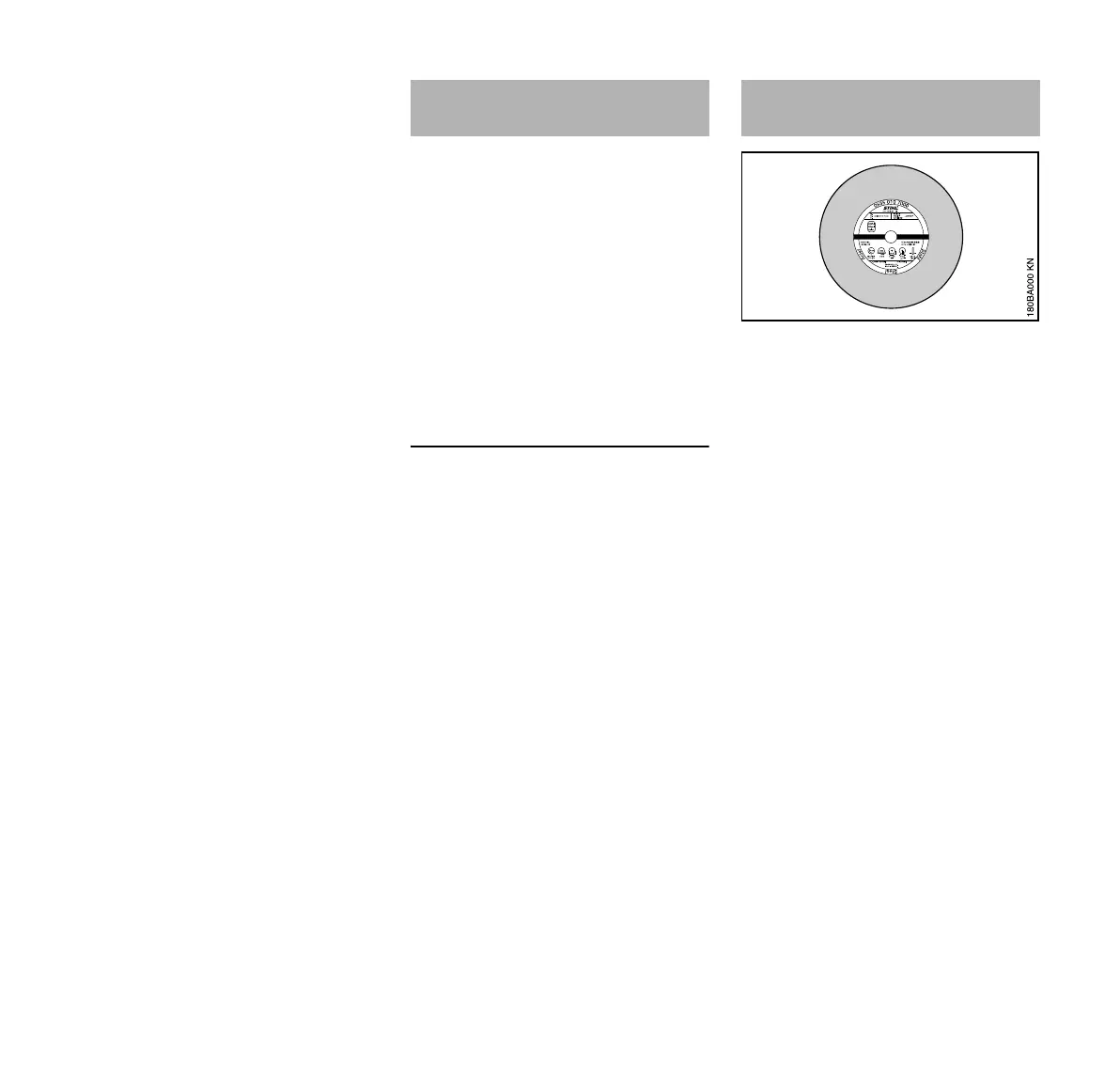

Cutting wheels Composite resin cutting
wheels

Stihl TS 420 Specifications

General

Engine Power	4.4 bhp
Weight	21.2 lbs
Arbor Size	20 mm
Maximum Wheel Size	350 mm
Maximum Cutting Depth	125 mm
Displacement	66.7 cc (4.1 cu. in.)
Fuel Capacity	710 cc
