Stihl TS 420 Original Instruction Manual

Working safely with cut-off machines
English
13

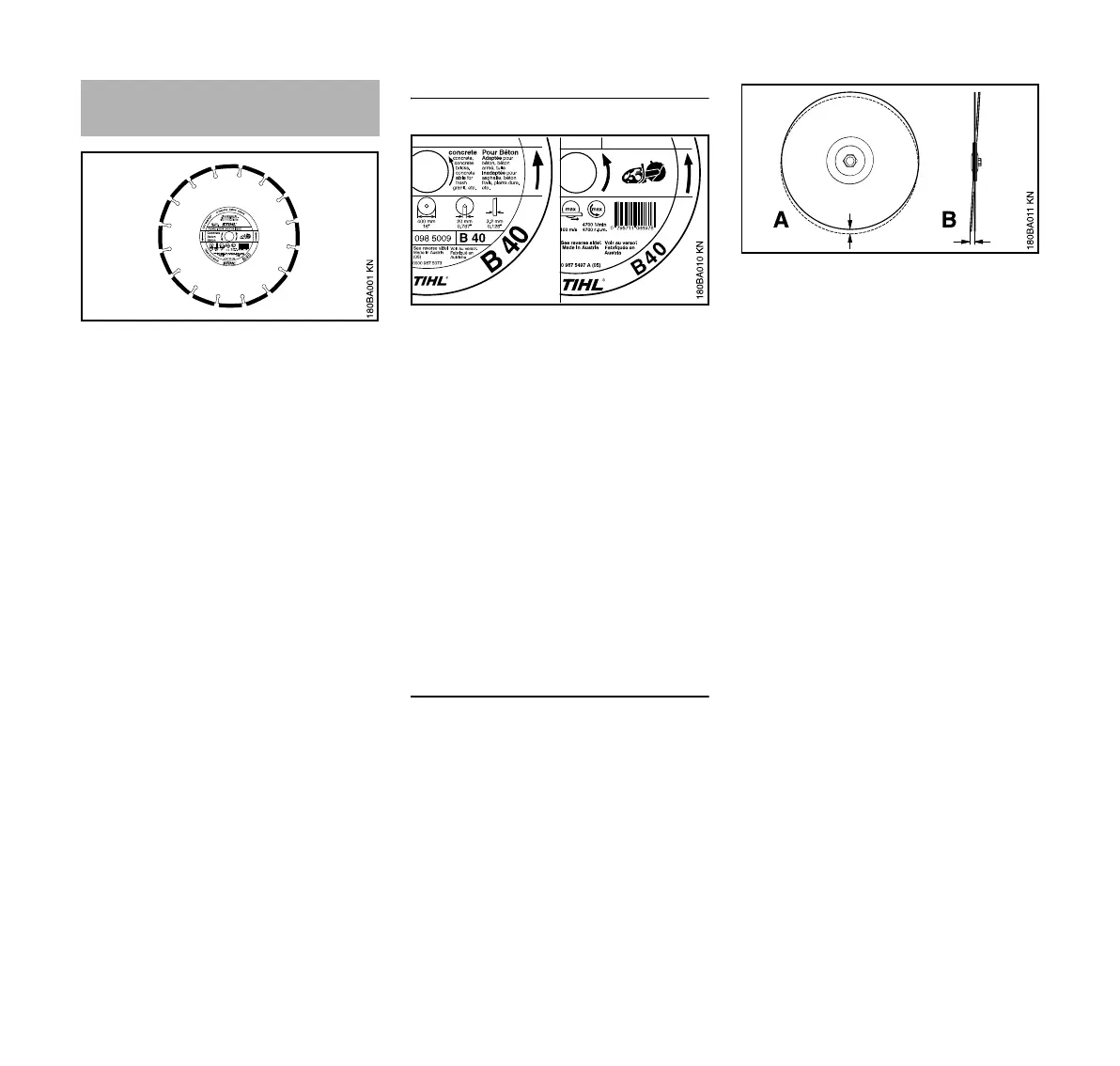

The proper selection and use of
diamond cutting wheels ensures
economical use and avoids accelerated
wear. The code on the
– label
– of the packaging (table with
recommendations for use) is an aid
to selection
STIHL diamond cutting wheels are
suitable, depending on the version, for
cutting the following materials:
– Asphalt
– Concrete
– Stone (hard stone)
– abrasive concrete
– Fresh concrete
– Clay brick
– Clay pipe
STIHL diamond cutting wheels are not
suitable for cutting metal.
Product Codes
The product code is a combination of
one to four letters and numbers:
– the letters denote the main field of
application of the cutting wheel
– the numbers denote the
performance class of the STIHL
diamond cutting wheel
Axial and radial run-out
A faultless spindle bearing of the cut-off
machine is necessary for a long service
life and efficient functioning of the
diamond cutting wheel.
Using the cutting wheel on a cut-off
machine with a faulty spindle bearing
can lead to deviations in radial and axial
run-out.
An excessively high radial run-out
deviation (A) overloads individual
diamond segments, which overheat in
the process. This can lead to stress
cracks in the parent wheel or to
annealing of individual segments.
Deviations in axial run-out (B) result in
higher thermal loading and wider cuts.
Diamond cutting wheels
Letter Main field of
application
A Asphalt
B Concrete
BA Concrete, asphalt
S Stone (hard stone)
SB Hard stone, concrete

Stihl TS 420 Specifications

General

Engine Power	4.4 bhp
Weight	21.2 lbs
Arbor Size	20 mm
Maximum Wheel Size	350 mm
Maximum Cutting Depth	125 mm
Displacement	66.7 cc (4.1 cu. in.)
Fuel Capacity	710 cc
