Working safely with cut-off machines
English
18
1 Rear handle
2 Throttle trigger interlock
3 Throttle trigger
4 Slide control
5 Starter grip
6 Carburetor adjusting screws
7 Filler cap
8 Water attachment
9 Tensioning nut
10 Adjusting lever
11 Cutting wheel
12 Front thrust washer
13 Deflector
14 Muffler
15 Spark arresting screen (present
only in some countries)
16 Handlebar
17 Decompression valve
18 Cap for spark plug boot
19 Choke lever
20 Fuel pump
21 Filter cover
# Serial number

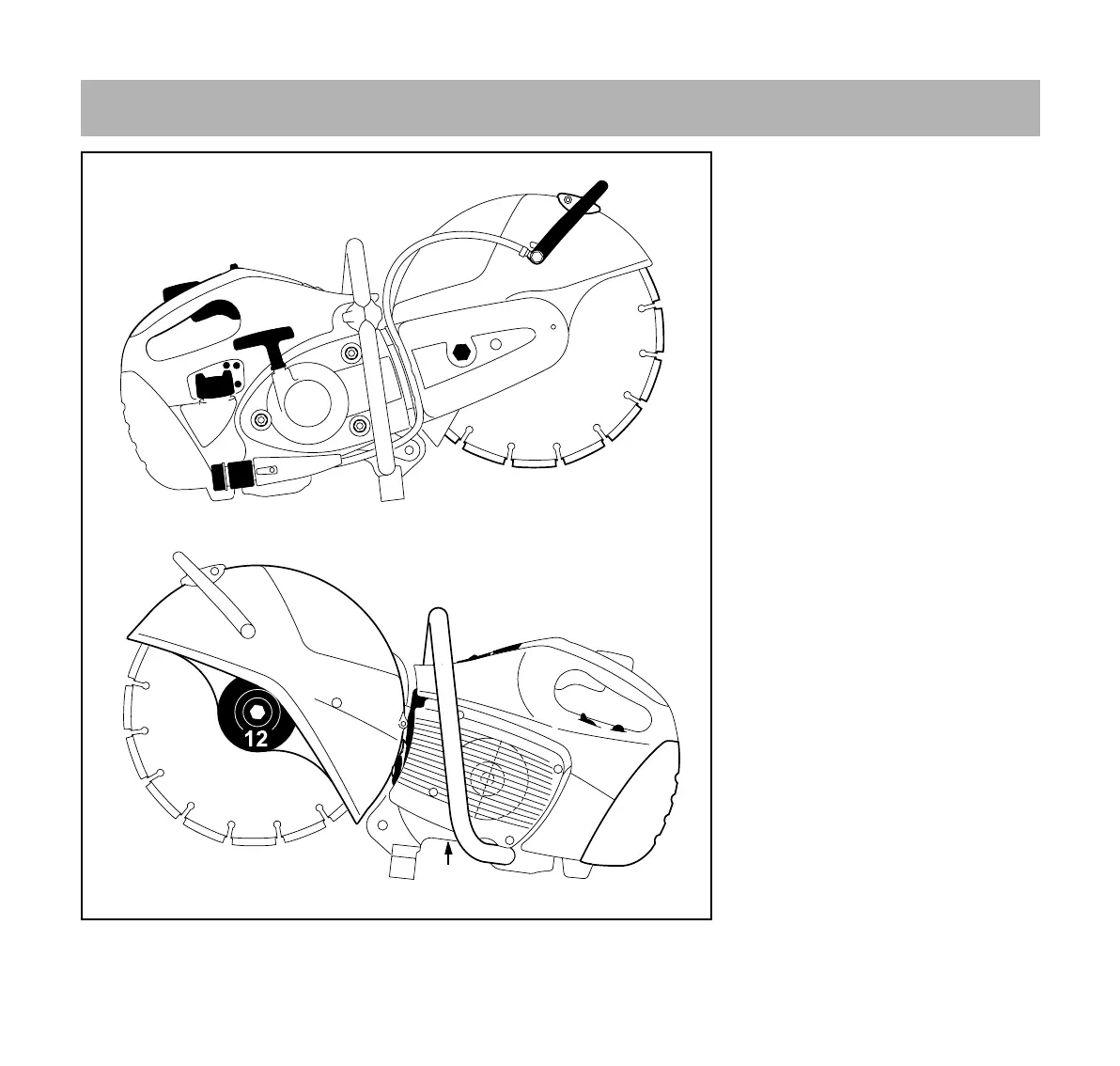

Main Parts
7
6
3
2
5
8
10
9
11
4
1
19
15
16
13
20
21
17
18
#
14
370BA046 KN

Stihl TS 420 Specifications

General

Engine Power	4.4 bhp
Weight	21.2 lbs
Arbor Size	20 mm
Maximum Wheel Size	350 mm
Maximum Cutting Depth	125 mm
Displacement	66.7 cc (4.1 cu. in.)
Fuel Capacity	710 cc
