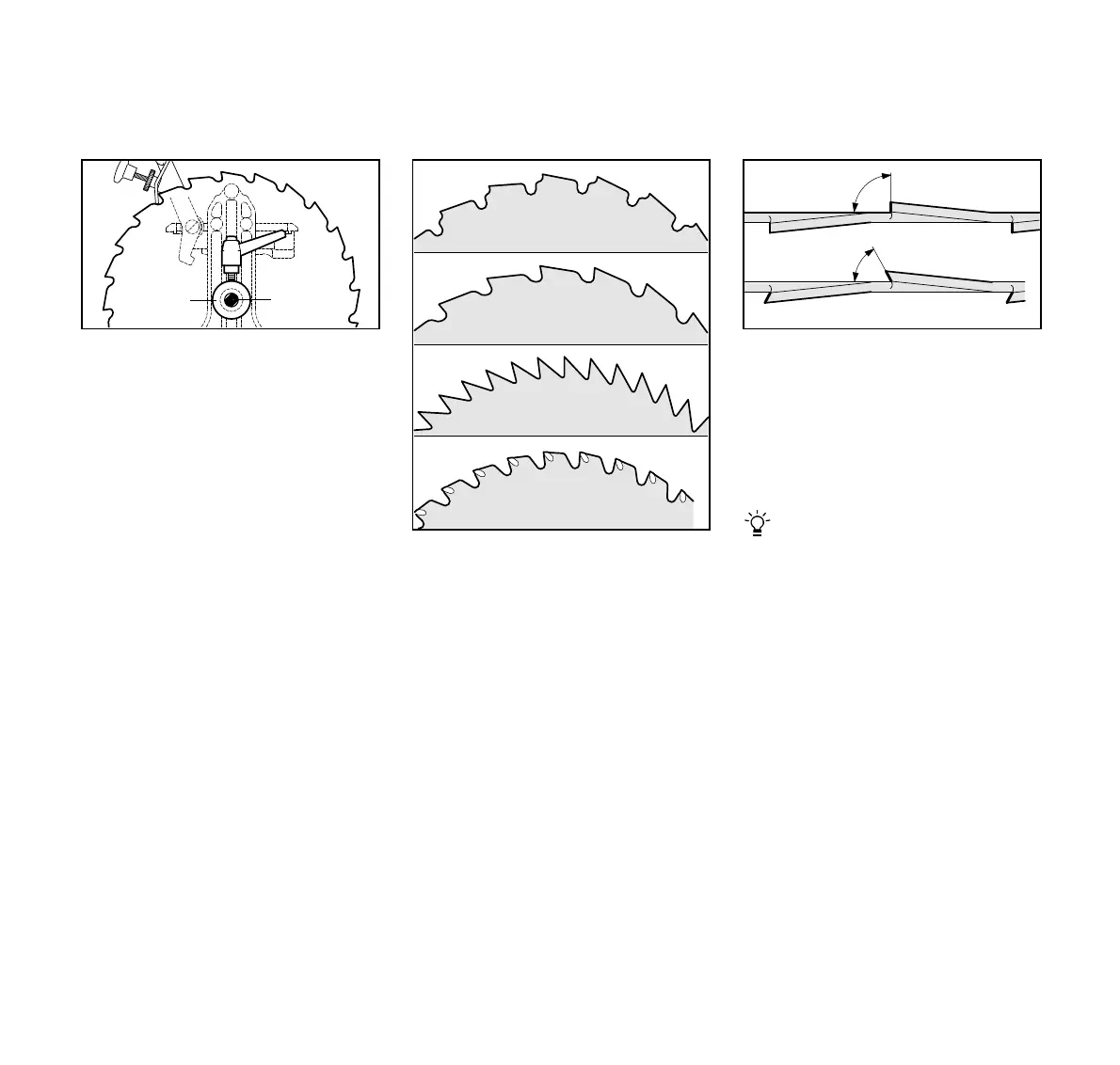

: Position the saw blade (2) on the
shoulder stud (1) so that the cutting
edges point to the left (counter-
clockwise).
: Fit the locator (4) over the shoulder
stud and push it home – this centers
the saw blade.
: Tighten down the clamp lever (5)
firmly.
The saw blade must now locate against
the retaining plate free from play, but it
must still be possible to turn the blade by
hand.
Setting the Scales
The settings depend on the type of saw
blade:
Chisel tooth, standard (1)
Chisel tooth, special (2)
Scratcher tooth (3)
Carbide tipped blade (4)
There are saw blades with
square ground teeth (5)
(scale C = 0) and
bevel ground teeth (6)
In the case of bevel ground teeth,
mark the teeth that have the same
sharpening angle (every second
tooth). Marking them helps avoid
accidentally sharpening a tooth on
the other side of the blade.
4
5
1
523BA123 KN
2
523BA124 KN
1
2
3
4
523BA125 KN
5
6
