29USG
English
: Set angles as specified in the
following table.
1)
Depending on type of wood, set
between +5° (for hardwood) and
+15° (for soft wood)
2)
Scratcher tooth saw blade with 80
teeth cannot be sharpened with the
USG

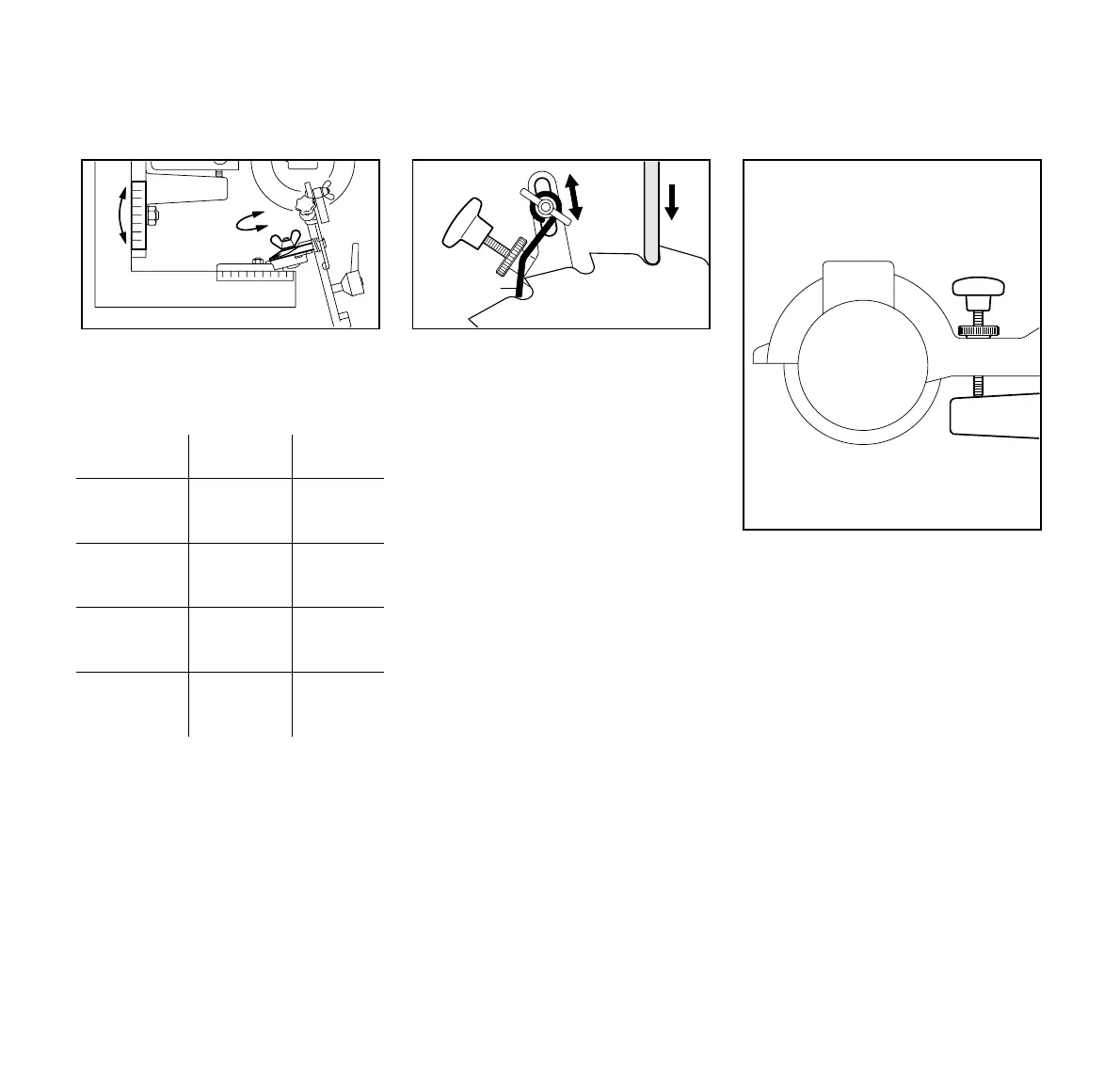

Adjusting the Stop
Adjusting the lateral stop
: Swing the motor arm down.
: Use the adjusting screw (1) to move
the stop (2) so that the side plate of
the tooth to be sharpened butts
against the grinding wheel – make
sure the stop locates firmly against
the back of one tooth.
: The stop can be moved in the
slot (3) to suit the saw blade.
Adjusting sharpening depth
: Swing the motor arm down until the
required sharpening depth is
reached – see "Sharpening
profiles".
: Screw home the travel limiting
screw (1) until it butts against the
stop lug (2).
: Tighten down the knurled nut (3)
firmly.
Type of tooth Scale
A
Scale
C
Chisel tooth,
standard +5°...+15°
1)
+15°/ -15°
Chisel tooth,
special +5°...+15°
1)
+15°/ -15°
Scratcher
tooth
2)
0° 0°
Carbide
tipped blade
7° +5°/-5°
-
+
A
C
-
+
523BA126 KN
2
1
523BA127 KN
3
1
3
523BA101 KN
2
