Internal accessibility
DANGER
It is prohibited to use the truck with the covers open.
In order to use the truck, the covers for access to the
inner parts must be closed and secured properly.
DANGER
Before accessing the inner parts of the truck,
carefully follow the instructions given in Chapter
5, entitled "Maintenance".

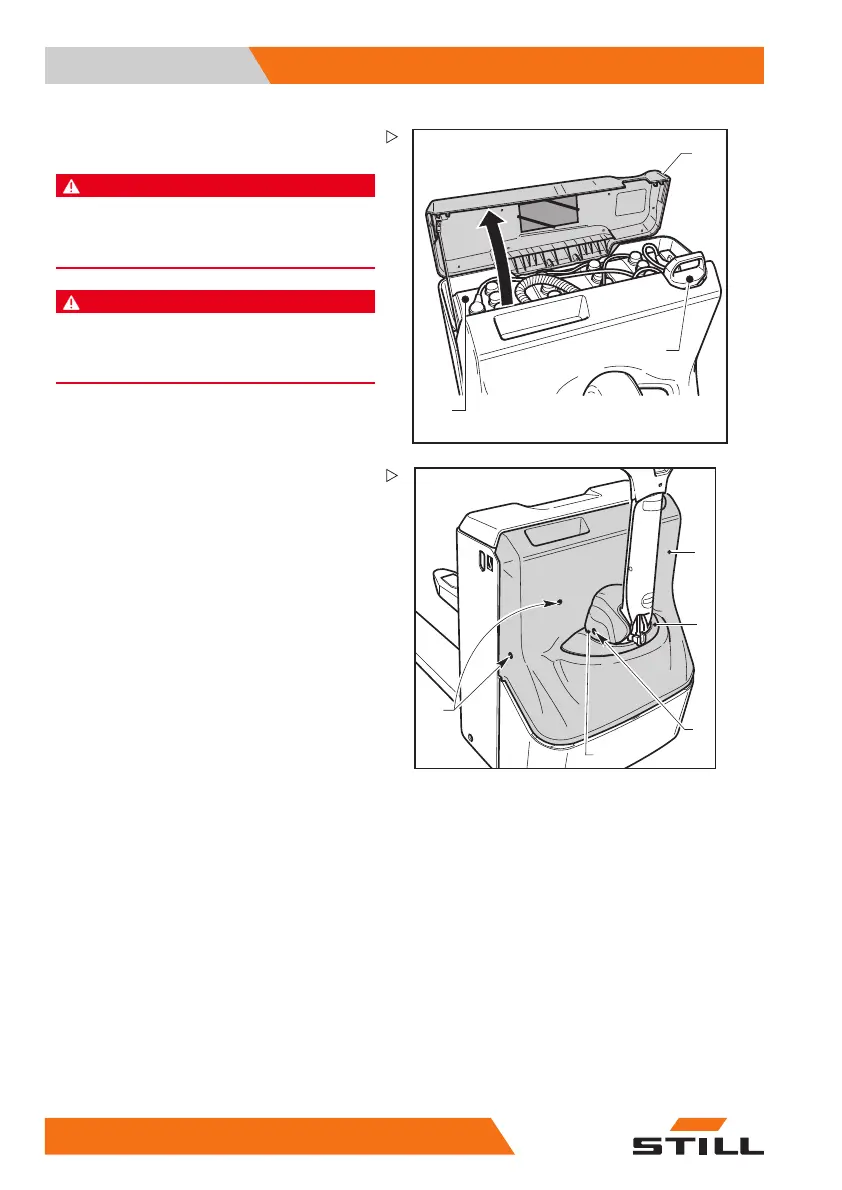

– To access the battery (1) and respective
plug/outlet (2), raise the battery compart-
ment cover (3).
OM1771
1
2
C
B
A
– To access the inner parts of the forklift
(electronic, electric and mechanical parts),
remove the covers (A), (B), (C).
– Unscrew the 2 screws (2) on the cover (A).
– Remove the cover (A)
– Use a screwdriver to remove the hood (B)
– Unscrew the 4 screws (1) on the cover (C)
– Remove the cover (C)
– For reassembly, proceed in the reverse
order
