Still LTX 50 - Location of LTX50 Labels

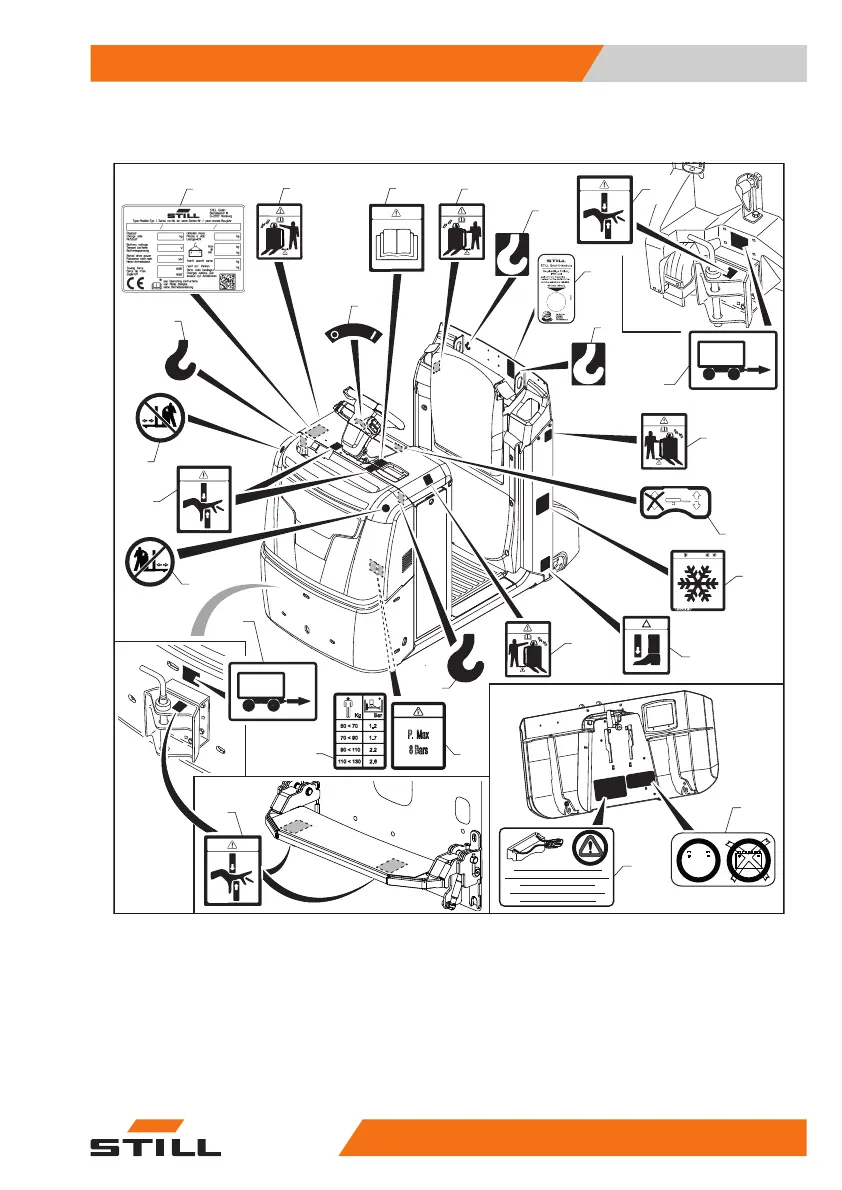

Location of LTX50 labels
19
Qmax=5000 kg F=1000 N
18
2352
!
2
3
4
8
9
13
3
7
Pb+Sb
11
12
1
10
13
5
6
17
17
16
15
15
1
1
14
16
Qmax=1000 kg F=800 N
GEL
"Danger of crushing hands" label
"Operating and maintenance manual" label
"Hook" symbol
"Yearly safety inspection" label (Germany
only)
"Nominal value" designation plate
Label "ON/OFF"
"Cold store" label (for cold-store equipment
only)
"Danger of crushing feet" label
"Maximum permissible pressure" label
1
2
3
4
5
6
7
8
9
"Operator platform capacity schematic view"
label
"Battery warning" label
Version set up for gel batteries
"Hook" symbol
"Handling trailers" label
"Positioning yourself in front of the truck is
prohibited" label (only in pedestrian mode
with steering wheel option)
10
11
12
13
14
15
