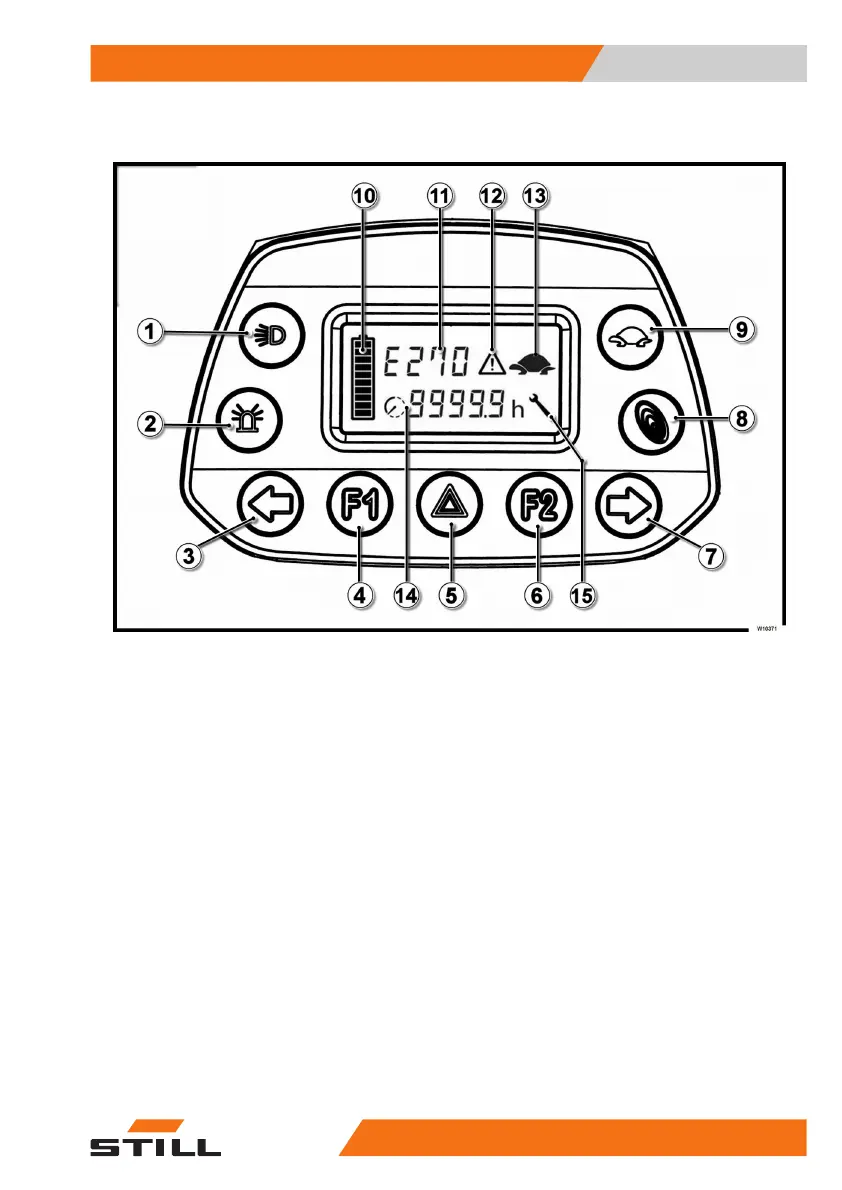

Steering wheel controls - Part 3
Dipped-beam headlights
Flashing beacon
Left indicator (where present)
F1 - Indicator light
Hazard warning signal (where present)
F2 - Indicator light
Right indicator (where present)
Blue-Q function
1
2
3
4
5
6
7
8
Tortoise function
Battery charge level indicator
Type of alarm
Warning triangle
Tortoise indicator
Hour meter
Service reminder
9
10
11
12
13
14
15
Description of the keys
●
(1) Dipped-beam headlights
The dipped-beam headlights are optional.
The button (1) is always present but only
works if the optional dipped-beam head-
lights are fitted.
When the key (1) is pressed, the button
lights up and the dipped beam-headlights
turn on.
When the key (1) is pressed again, the but-
ton and the dipped-beam headlights turn
off.
●
(2)Flashing beacon
The flashing beacon is optional. The button
(2) is always present but only works if the
optional flashing beacon is fitted.
When the key (2) is pressed, the button
lights up and the beacon starts to flash.
When the key (2) is pressed again, the but-
ton and the flashing beacon turn off.
●
(3)Left indicator (where present)
The button (3) is only present on certain
truck versions.
When the key (3) is pressed, the button
lights up and the left indicator turns on.
When the key (3) is pressed again, the but-
ton and the left indicator turn off.
Turn on the indicator (3) before turning left.
Overview
3
Instruments and controls
7545878043344 EN - 11/2021 - 12
