Still LTX 50 - Electrical Socket for Trailer Lighting (Optional)

Electrical socket for trailer lighting (optional)
P
2401
2
3
4
5
6
7
1

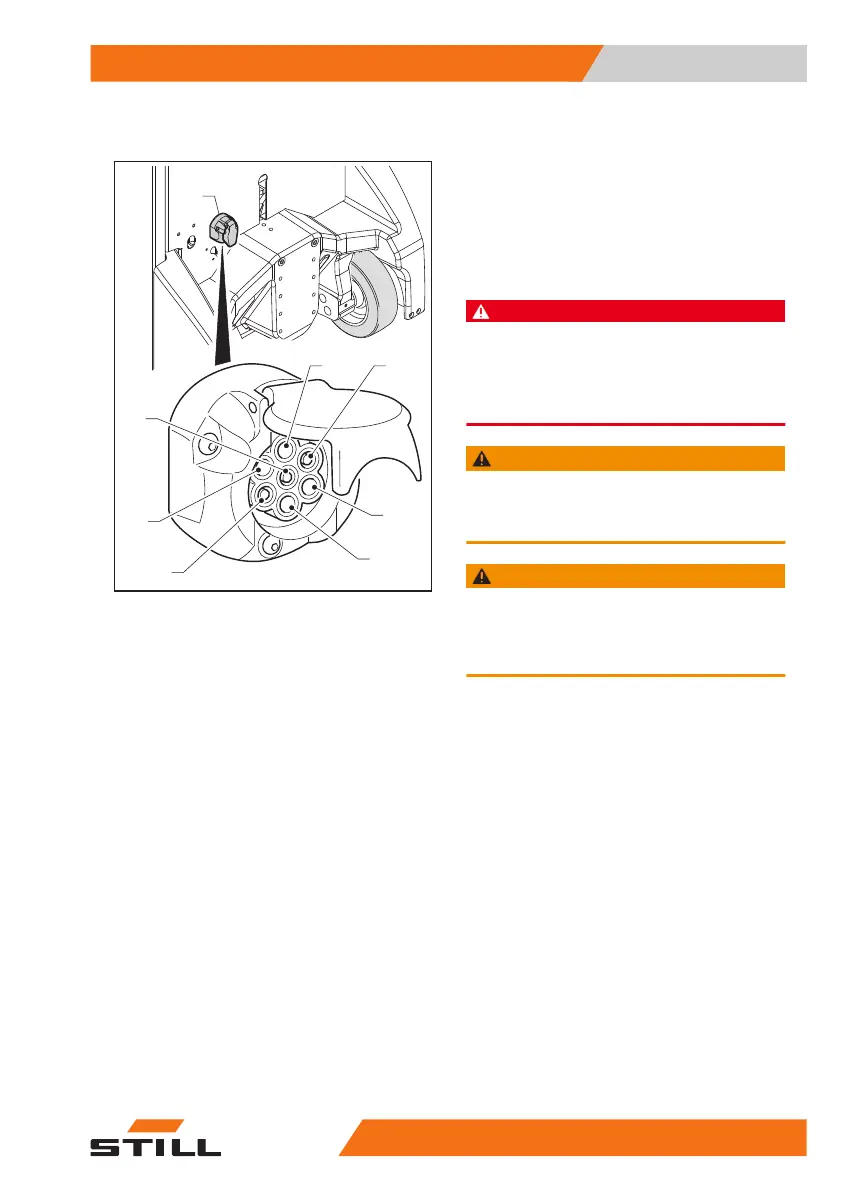

Electrical socket for trailer lighting
Electrical contact for the left-hand indicator
Electrical contact for the rear lights of the
trailer
Earth/battery electrical contact
Electrical contact for the left-hand indicator
Electrical contact for the right-hand side light
Electrical contact for the brake lights
Electrical contact for the left-hand side light
P
1
2
3
4
5
6
7
The electrical socket (P) is fitted to the rear
part of the truck. Technical features of the
socket:
●
7 pins
●
12 V
●
ISO 1724/3732 standard
DANGER
Risk of short circuit
Before you connect the trailer plug to the socket (P),
and before use in any case, check that the socket
and the plug are fully intact and do not show any
signs of damage.
WARNING
If you are not using the socket (P), protect it from the
weather, dust, etc. by keeping the cap closed.
Do not leave the socket (P) uncovered.
WARNING
Risk of malfunction
The socket (P) can provide up to 10 A at 12 V. Light-
ing operation is not guaranteed for trailers that have
lighting with energy consumption exceeding 10 A
