01
Frame and Counterweight
3

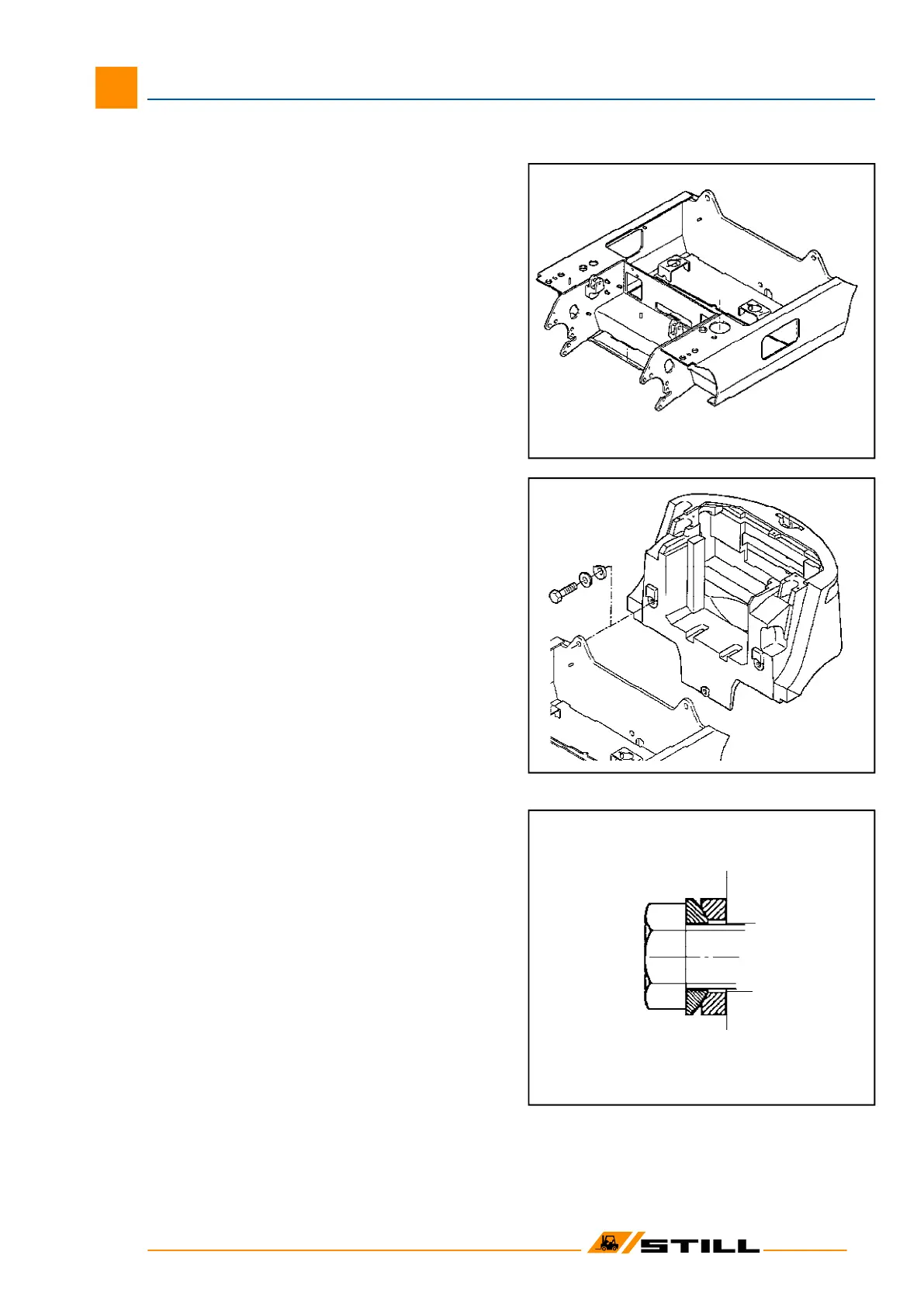

Frame
The welded steel frame is of unit construction and
has a bolt-on cast iron counterweight.
The hydraulic oil tank serves as a frame cross-
member located underneath the floor plate.
Counterweight
The removable rear counterweight is secured to
the frame by three bolts (see sketch).
1 = hex hd bolt M 24 x 85 / 8.8
2 = spherical washer
3 = ball cup
The three counterweight bolts (item 1) should be
torqued to 660 Nm.
Weight of the counterweights :
7052 / 7054 —> 940 kgs
7056 / 7058 —> 1080 kgs
Workshop Manual 7052/56/74-76, 7054/58/77-79
