CAUTION:
Before jacking up the truck :
Apply the parking brake !
To carry out certain maintenance tasks the truck must
be jacked up and securely chocked into position.
Always make sure only jacks of suitable capacity
are used.
Before jacking up the truck, position it on level ground
and secure against slipping or rolling.

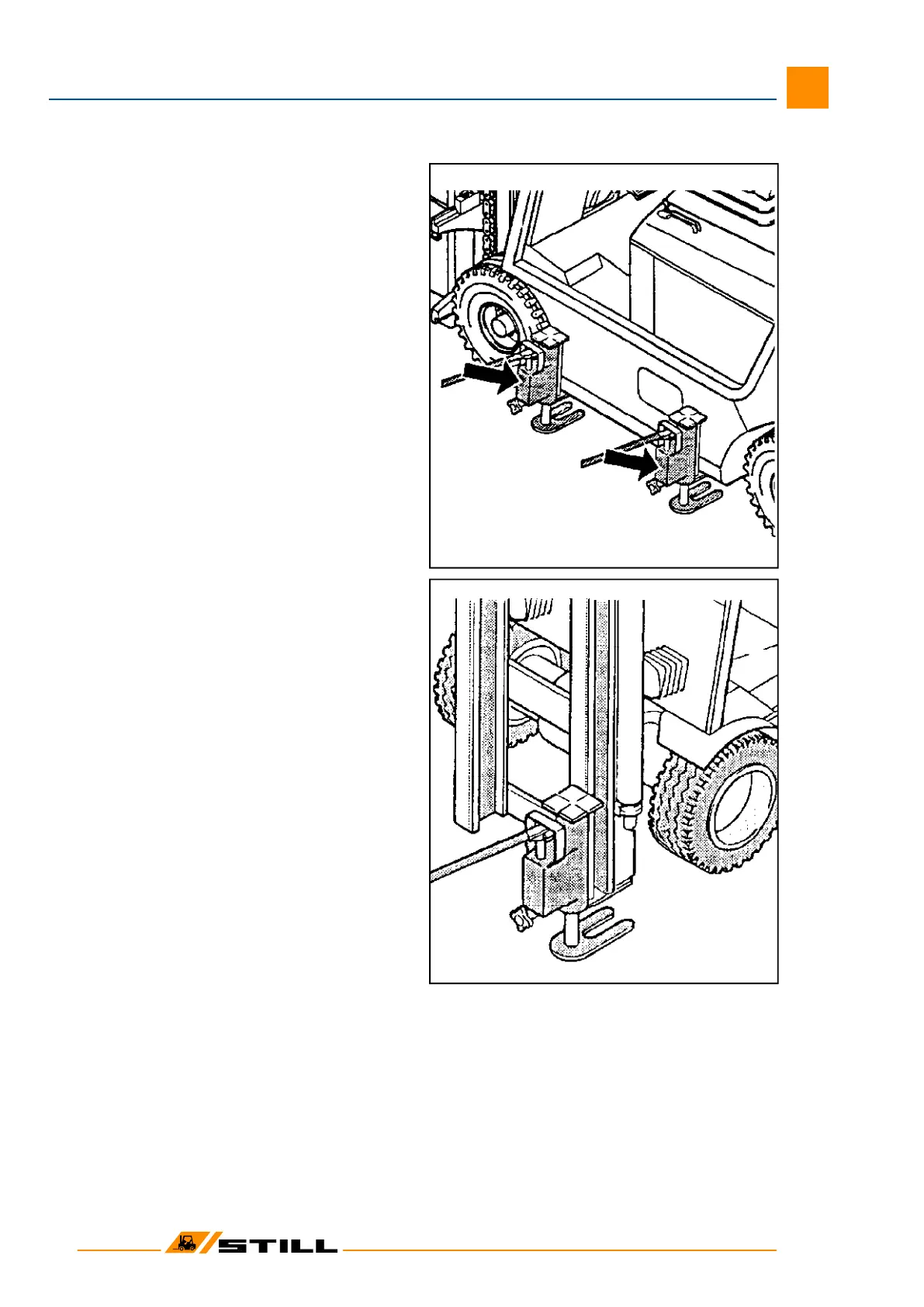

Jack up the truck by placing a jack at locations shown
in the figures, i.e. beneath the mast right or left and
beneath the frame at the front or at the rear.
Never jack up the truck at rear counterweight !
When jacking up the truck observe safety rules
covering maintenance and service jobs on the mast.
01
Jacking up the truck
4
Workshop Manual 7052/56/74-76, 7054/58/77-79
