Storz AIDA Interface II - Page 17

10
Aufstellen und
Bedienungshinweise
Installation and
operating instructions
Montaje e
instrucciones operativas
KARL STORZ AIDA
®
interface II
200921 32
2
Console
2
AIDA Control
2
OR1 Control
Power
12 VDC
FS
1
2
3
4
ACC
SCBlink
®
RS232 (COM1)
Printer
PC interconnection
200903 74
VGA (RGB)Mouse Keyboard
KARL STORZ OR1
TM
control
200970 20-1
Mouse
PC interconnection
200903 74
Mouse
RS232 (COM1)
Parallel port cable
200904 75
VGA (RGB)
KARL STORZ AIDA
®
control
200906 20
Touch Screen
Mounting
DC power
VGA
DVI
RS232
VGA (RGB)
Keyboard
Touch Screen
Mounting
DC power
VGA
DVI
RS232
OR1™-RGB Interface
W20419
front back
INPUT
BUFFERED LOCAL
MONITOR OUTPUT
R G B
H V S
OUTPUT
VGA (RGB)
VGA (RGB)
Keyboard
RS232
RS232
RS232 (COM2)
RS232 (COM2)

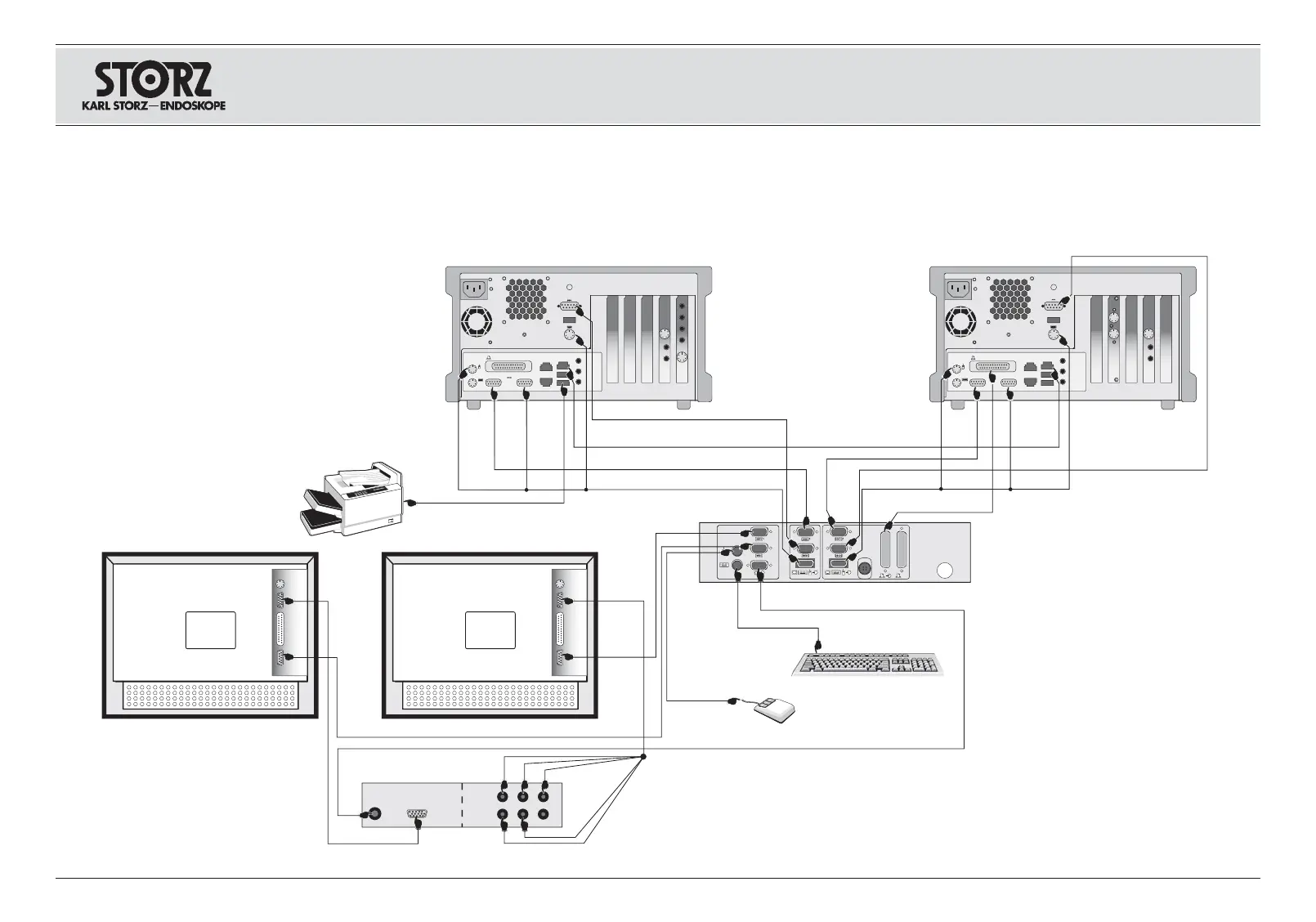

Variante 2 mit zwei Monitoren:
Version 2 with two monitors:
Variante 2 con dos monitores:
