1 ______ 20.37
15A Primary Circuit Breakers (24)
(Fully magnetic)
AMX192 Control Input
AMX192 Control Output
Power Light
Air Outlet Vent
Dimmer Pack Select
est Controller
nalog Input (ANA/MPX units only)
TEST/NORMAL Switch
MPX/ANA Switch (MPX/ANA uinits only)
Cover for access with 4 flat head screws
(See exploded view for options)

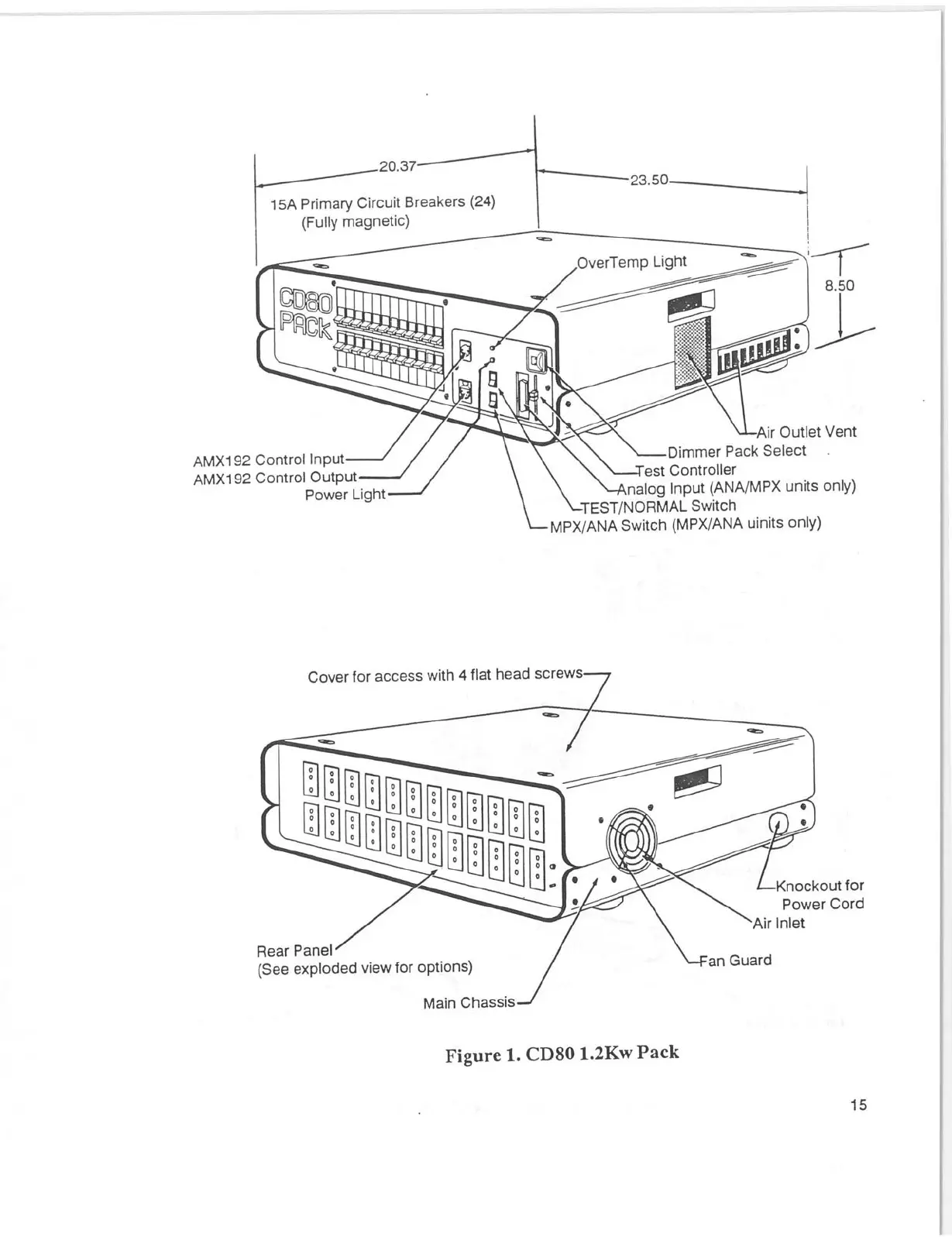

Figure 1. CD80 1.2Kw Pack
Knockout for
Power Cord
Air Inlet
an Guard
15
