Rear Panel Assembly
1 3 Pole 20A Pin Conn. (3-283359-01-0)
2 3 Pole 15A GTL Conn. i3-283369-01 b)
2 3 Pole 20A GTL Conn. 3-283355-010)
3 3 Pole 20A U-Ground -283356-010
4 Teminal
- Hard Wired 3-283357 -01 o
Removable
Control Panel
(Multiplex
- 3-283358-010)
(Analog/MPX
- 3-283360-010)
1.2Kw Choke /Breaker Ass'y
(3-169006-01 0)
Fan w/Fan Guard
(4" dia., 100CFM)
(1-260014-000)
Main Chassis Assem
(2-190137-010)
I
Power Input
Terminal Block
-----
Cover Ass'y (3-151004-010)
-----
-----
-------J

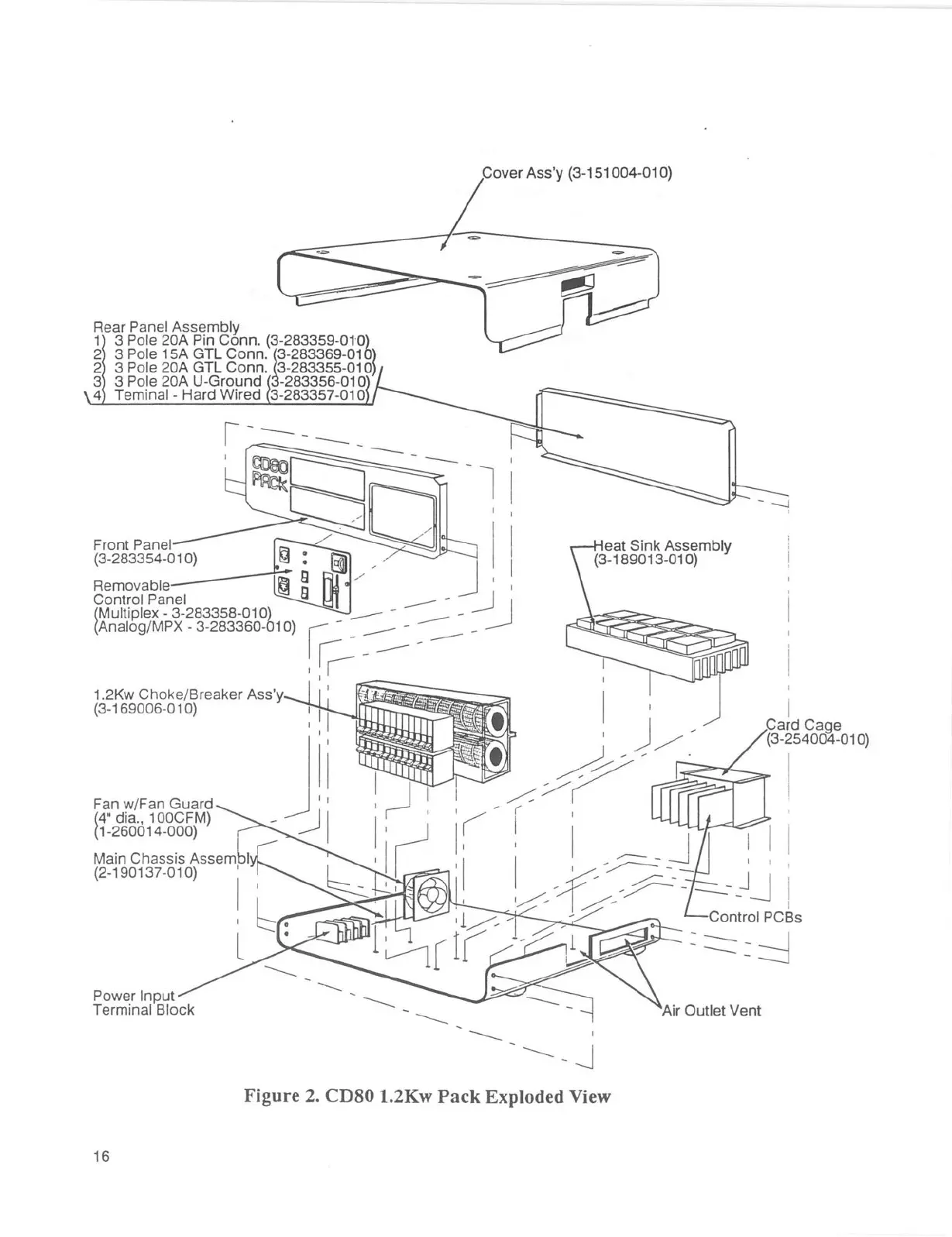

Figure 2. CD80 1.2Kw Pack Exploded View
16
I
Card Cage
(3-254004-010)
I
I
I
Control PCBs
To Next Page
