Stratus ftServer 2600 - Figure 2-2. Pdus Connected Directly to AC Power

AC Power and HVAC Service Requirements
Electrical Power Planning 2-7

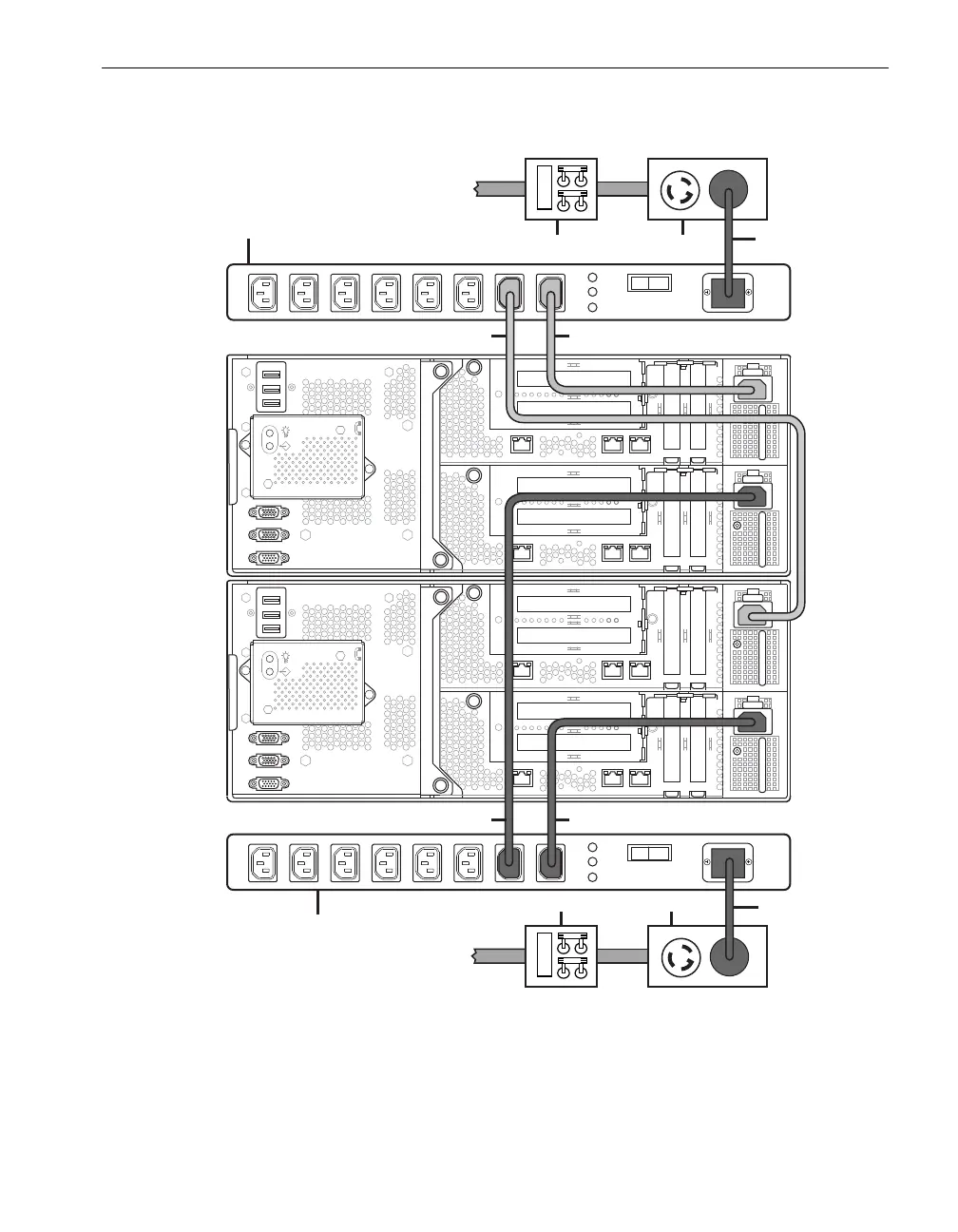

Figure 2-2. PDUs Connected Directly to AC Power
1 A-side PDU 5 PDU power cords
2 B-side PDU 6 AC power outlets
3 B-side jumper cables 7 Circuit breakers (maximum of 20A)
4 A-side jumper cables
5
5
67
7
6
1
2
4
4
3
3
dco043a
