2-12 Stratus ftServer 2600, 4500, and 6300 Systems: Site Planning Guide (R638)
Connecting a System Directly to a UPS
You can connect the A-side power connectors of your system directly to a UPS, as
shown in Figure 2-4.

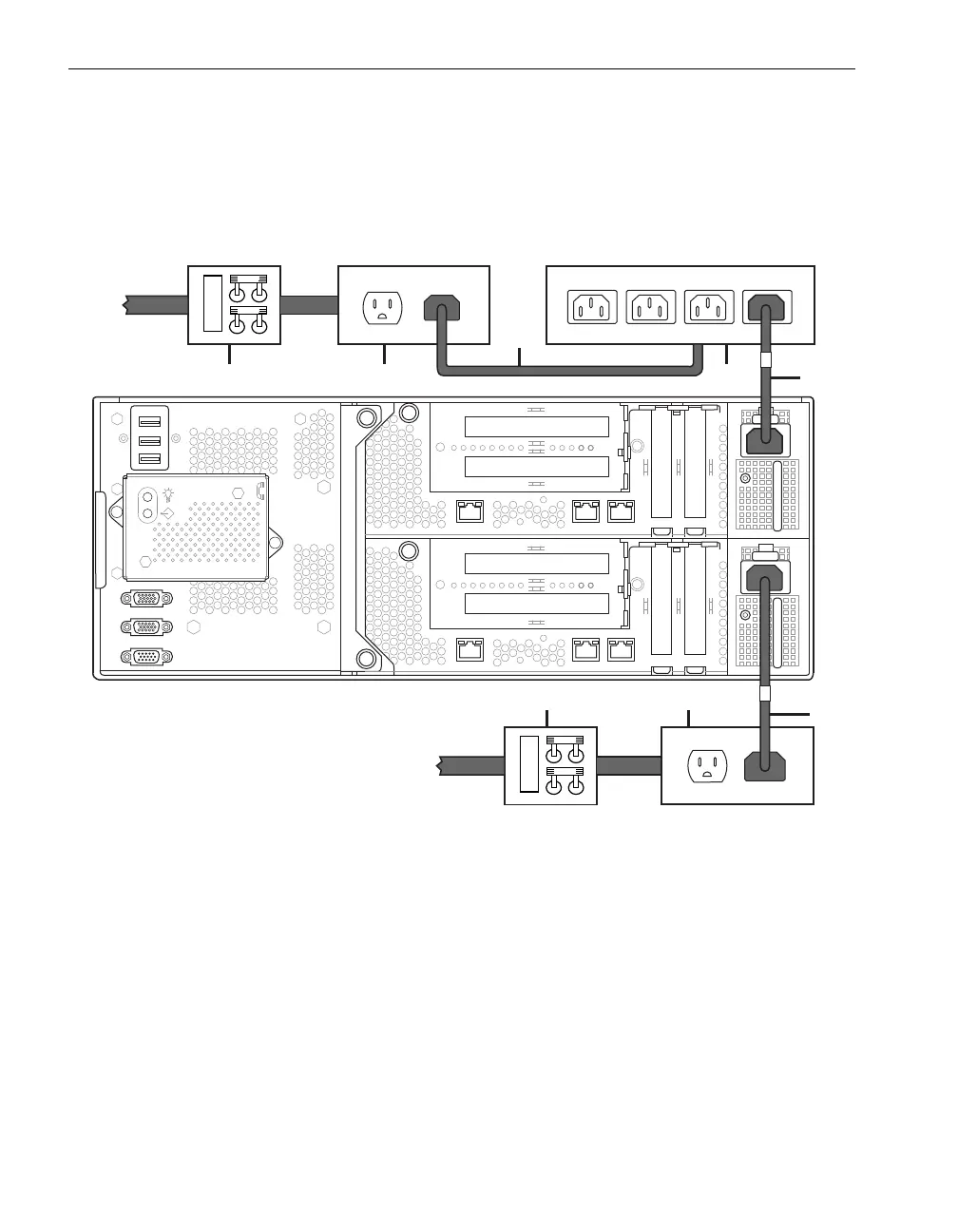

Figure 2-4. Rack-Mountable Systems: A-Side Power Connected Directly to a UPS
1 A-side system power cord
2 B-side system power cord
3UPS
4 UPS power cord
5 AC power outlets
6 Circuit breakers (maximum of 20A)
1
3
6
5
4
B
A
2
56
dco041
