System Specifications
A-2 Stratus ftServer 2600, 4500, and 6300 Systems: Site Planning Guide (R638)

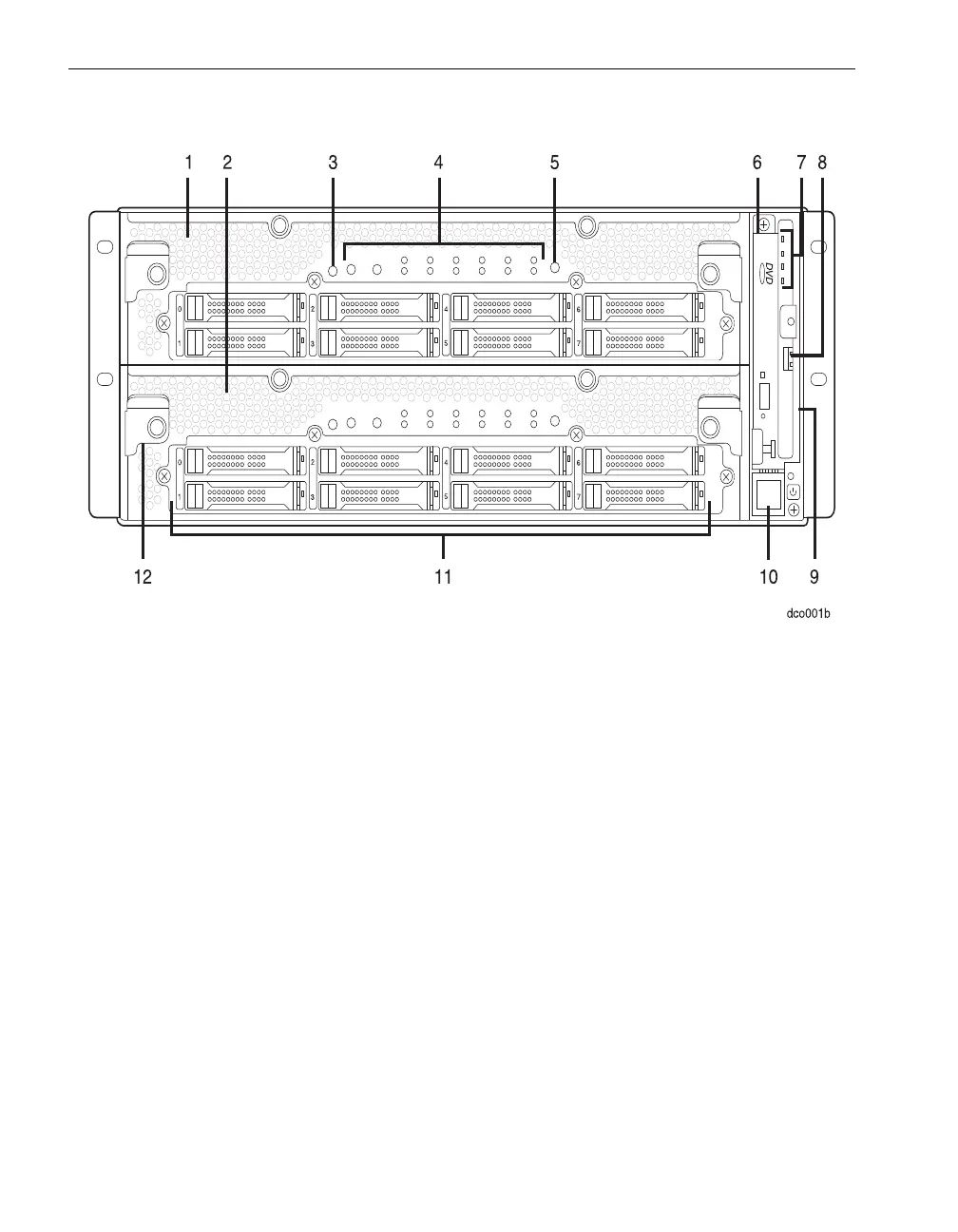

Figure A-1. ftServer 2600, 4500, or 6300 System: CPU-IO Enclosures: Front View
1 CPU-I/O 0 7 Front panel LEDs
2 CPU-I/O 1 8 USB port
3 CPU ID button (magnifying glass icon) 9 Front panel
4 System LEDs 10 Power button
5 NMI (dump) button 11 Internal disk drives (16) or disk drive
blanks
6 DVD drive 12 Release levers (4)
