Stratus ftServer 2600 - Figure A-2. Ftserver 2600, 4500, or 6300 System: Rear View

System Specifications
System Specifications A-3

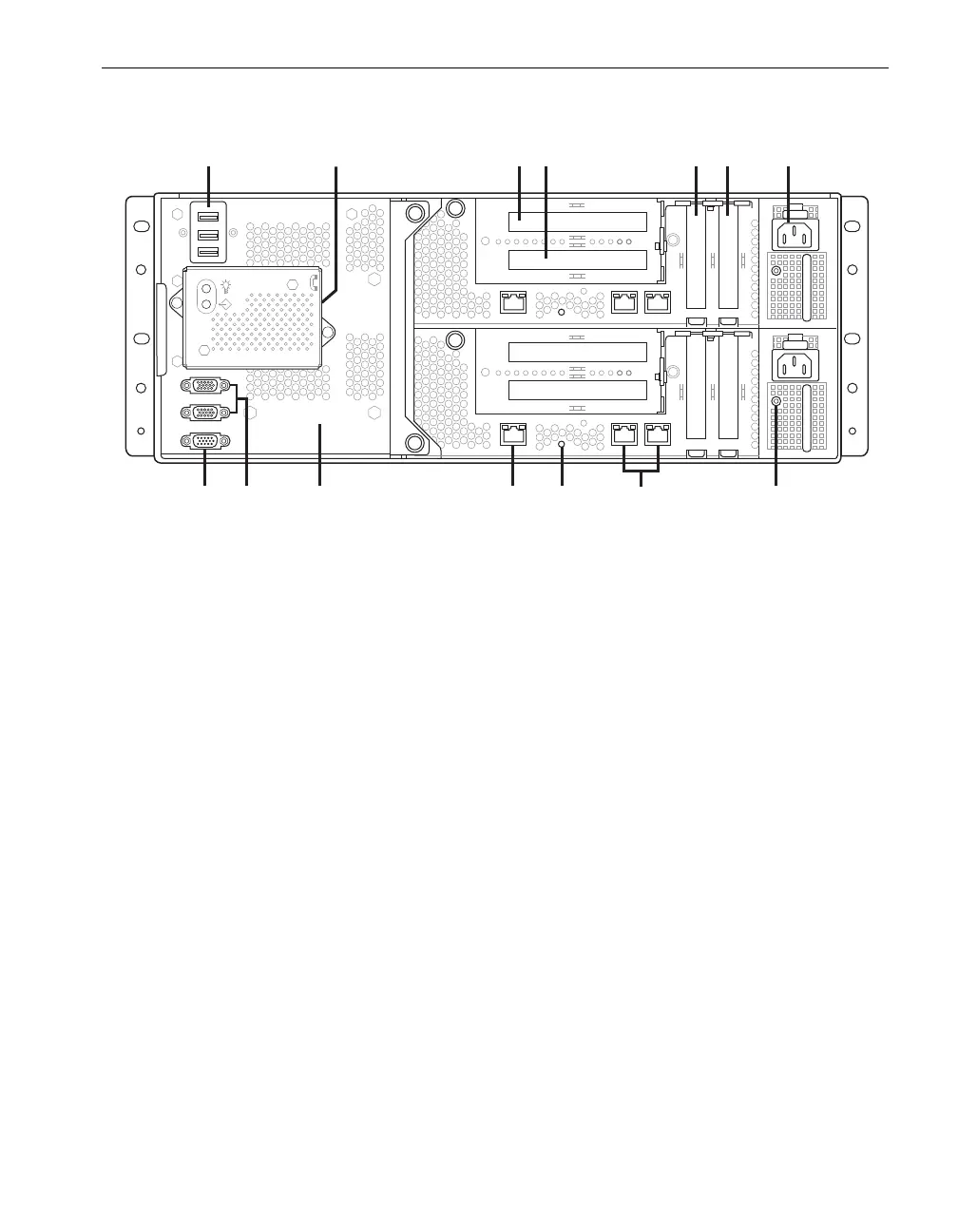

Figure A-2. ftServer 2600, 4500, or 6300 System: Rear View
1 USB ports (3) 8 Power supply LEDs (2)
2 Modem and telephone port 9 Embedded 10/100/1000-Mbps Ethernet
ports (4)
3 PCI adapter slot 3 (PCIe or PCI-X,
full-height). Not available on ftServer
2600 systems.
10 CPU-I/O enclosure blue
identification LEDs (2)
4 PCI adapter slot 4 (PCIe or PCI-X,
full-height). Not available on ftServer
2600 systems.
11 VTM Ethernet ports (2)
5 PCI adapter slot 1 (PCIe, low profile) 12 System backplane
6 PCI adapter slot 2 (PCIe, low profile) 13 Serial (COM) ports (2)
7 Power receptacles (2) 14 VGA (monitor) port
dco002b
12 34 567
911
10 81314 12
