Stratus ftServer 2600 - Figure B-5. Single-Phase 240 V AC Circuit Connection

Circuit Wiring Diagrams
Electrical Circuit and Wiring Information B-5
Figure B-5 shows a single-phase 240V AC circuit connection. Note that this application
requires a single-pole circuit breaker.

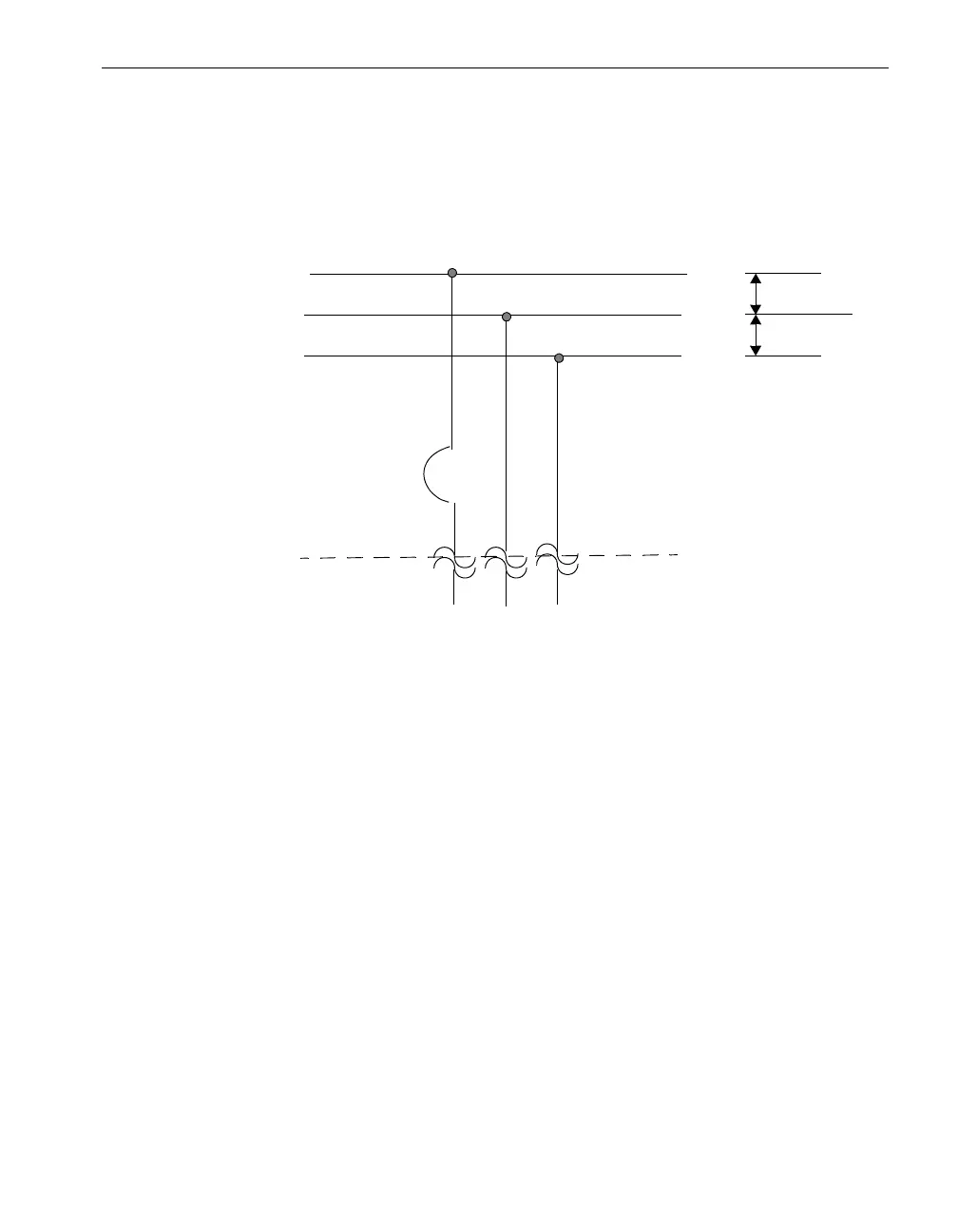

Figure B-5. Single-Phase 240V AC Circuit Connection
Circuit A or B
X Y G (PE)
To power input A or B
Wall
Power Cord
L
N
G (PE)
0V
Single system: 20A maximum
240V
PDU: 20A maximum
