Strautmann EK 1107 - Page 31

Remedying Faults in PP 1207–Klöckner Möller
Remedying faults PP 1207
page 31 –April 2005

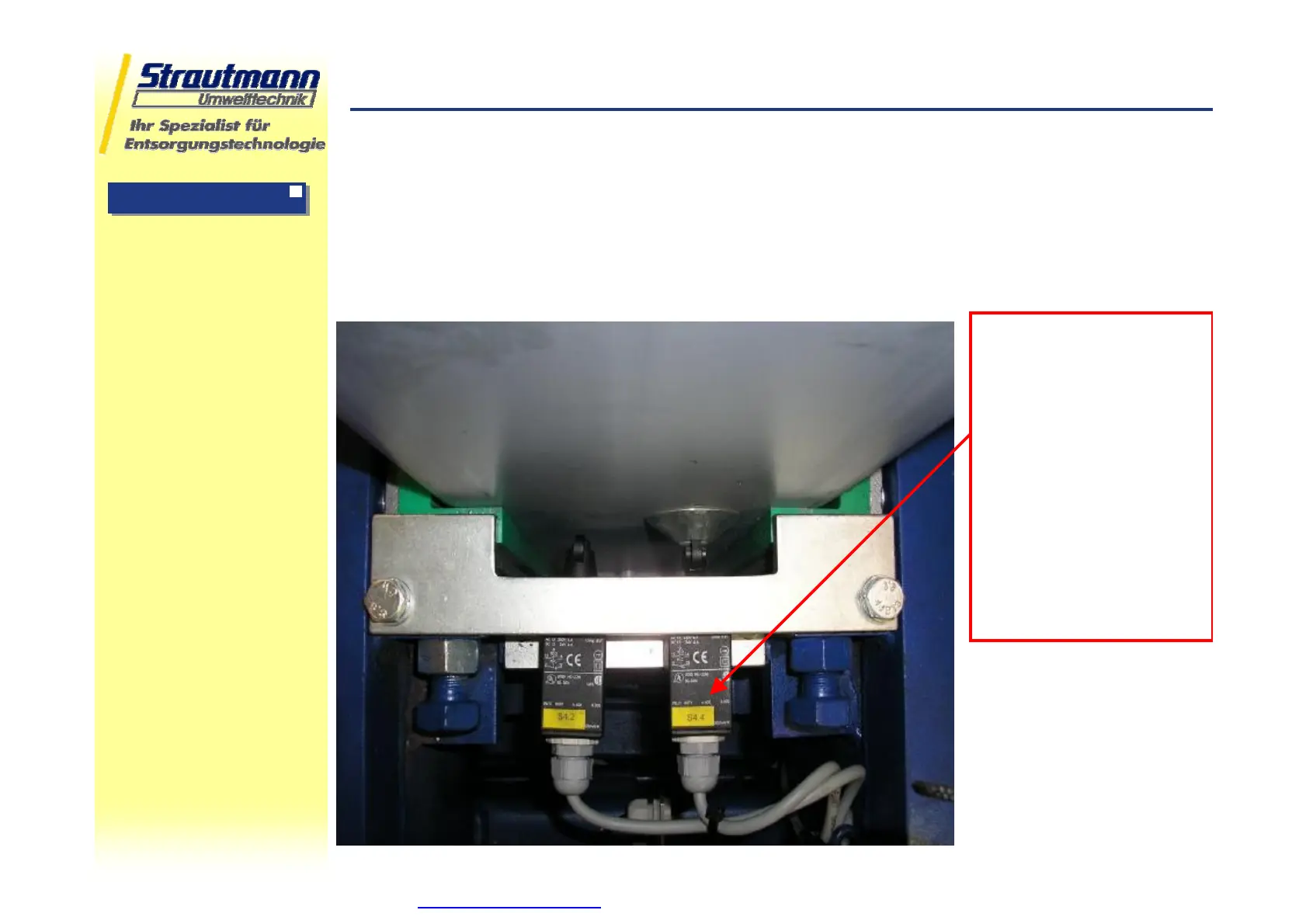

B. Check limit
switches (S4.4 ABB)
(S8 KLM). When
actuated :
On the ABB PCB the
terminals 12 and 13
must not have
continuity.
There must be 24V at
the KLM PCB terminal
X2.7.
4.1 Bale cannot be ejected
B. Top of press plate -limit switch faulty
