Testing the Toggle Switch
Note: There are procedures included for testing the toggle switch. However, the toggle switch
is not serviceable, and if it fails any test it must be replaced.
A. Disconnect the negative (-) battery lead.
B. Note the location of the toggle switch contacts in the photo below.
C. Place a multimeter into the Continuity Check position.
D. Place the toggle switch in the center position (off).
E. Place one meter lead on the center switch contact and the other lead on the right switch
contact. There should be no continuity. Push the toggle switch to the left. The meter
should indicate continuity. Push the toggle switch all the way to the right. There should
be no continuity.
F. Place one meter lead on the center switch contact and the other lead on the left switch
contact. There should be no continuity. Push the toggle switch to the right. The meter
should indicate continuity. Push the toggle switch all the way to the left. There should
be no continuity.

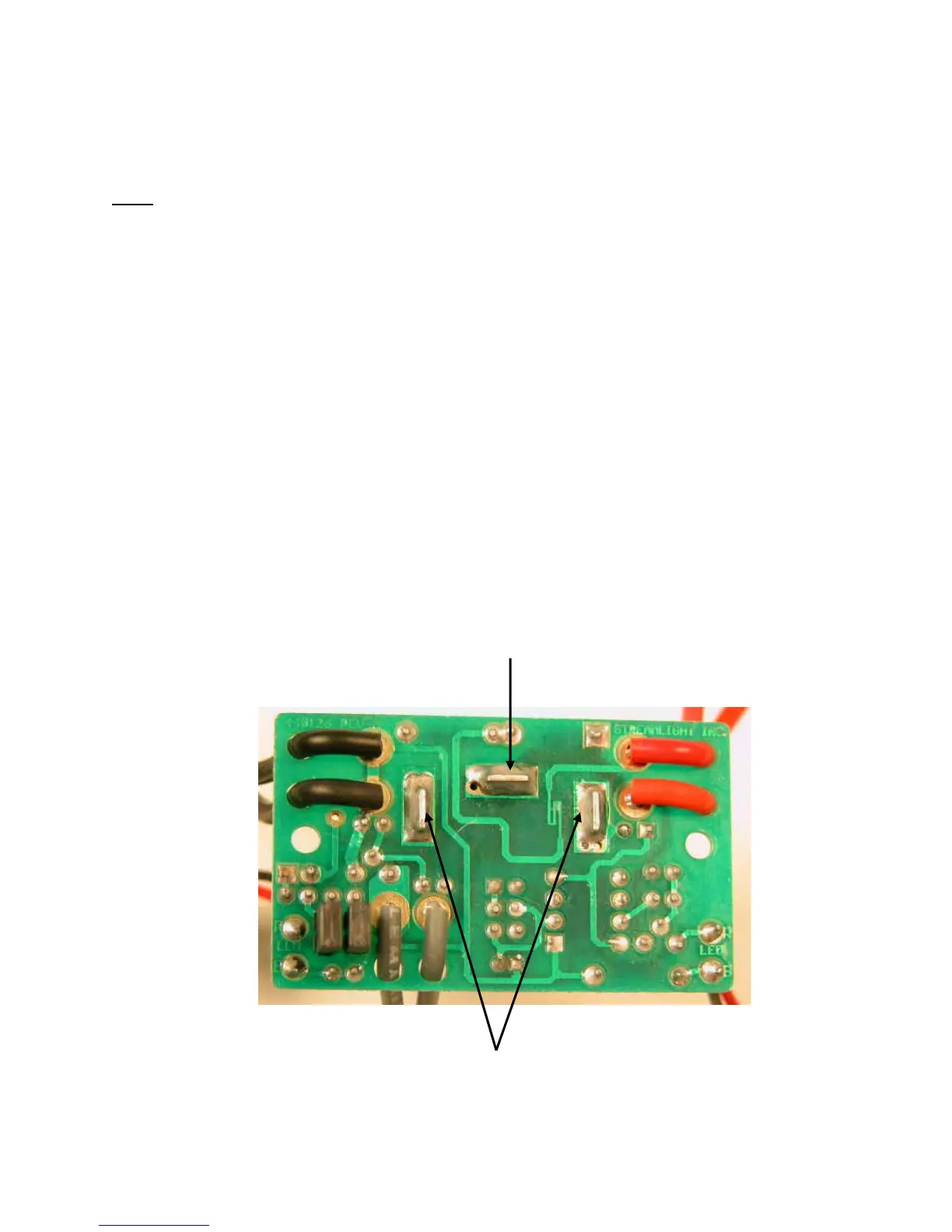

Center Switch Contact
Toggle Switch Contacts
- 37 -
