Height sensors
Checking the traverse path
1. After you have installed the sensors at all four wheel positions, you can check the
working area with the sensor tool in the control unit. Proceed carefully here so that
no damage occurs to the height sensors. Ideally, you should carry out the tests
in the rst step on the lifting platform and with the aid of the transmission jack.
The maximum voltage range of the sensors in the operating range is between 0.5 and 4.5 V.
These values must not be exceeded or undershot either when the chassis is completely raised or
completely lowered. Otherwise, the position of the sensors, the coupling rods or the length of the
coupling rods must be revised again.
Technical data - Height sensors
Product details
Product STREETEC autoleveling - Height sensors
Item number 9909 2 0027
Weight 55 g
Elektrische Details
Norminal voltage 5V
Dimensions (L x W x H) 109,5 mm x 42,5 mm x 40,5 mm
max. current 30 mA

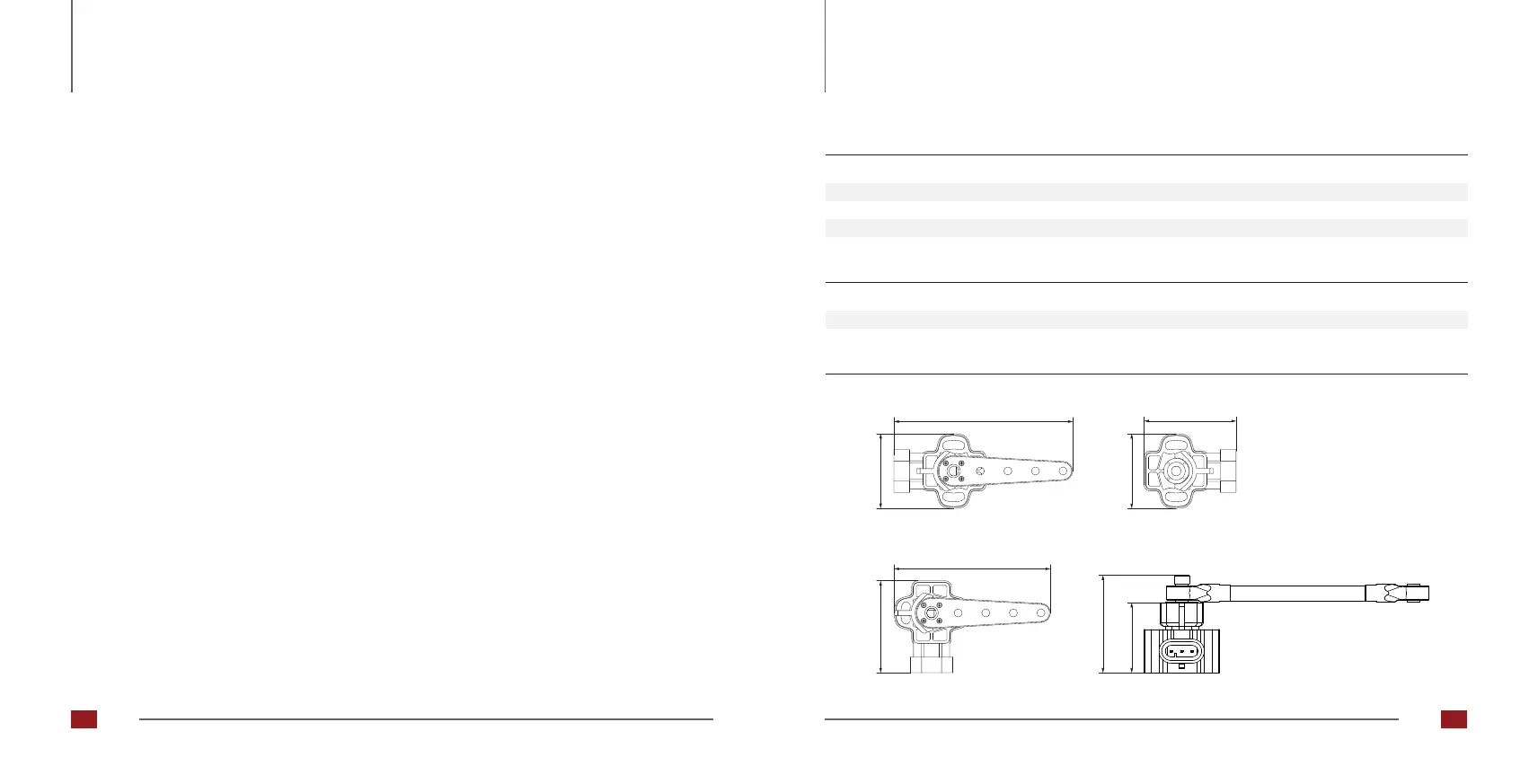

Dimensions
109,5 mm
42,5 mm40,5 mm
55,5 mm
55,5 mm
93,5 mm
55,5 mm 42,5 mm
