Strobel VEB100-1 - Direction of Rotation on Machine; Motor Drive Via V-Belts; Tensioning the V-Belt

11 BA_VEB100-1-2-2W-4-5_A3-1_180615_en
3.3
When facing the handwheel, turn it in a clockwise direction.
Direction of rotation on machine
3.4
3.4.1
Motor drive via V-belts
Tensioning the V-belt
Caution! Danger of injury!
When checking the belt tension, switch off the machine at
the mains. Do not operate the machine without the belt
guard. Otherwise there is a DANGER of crushing
fingers, of injuries to the body and of pulling in parts of
clothing.

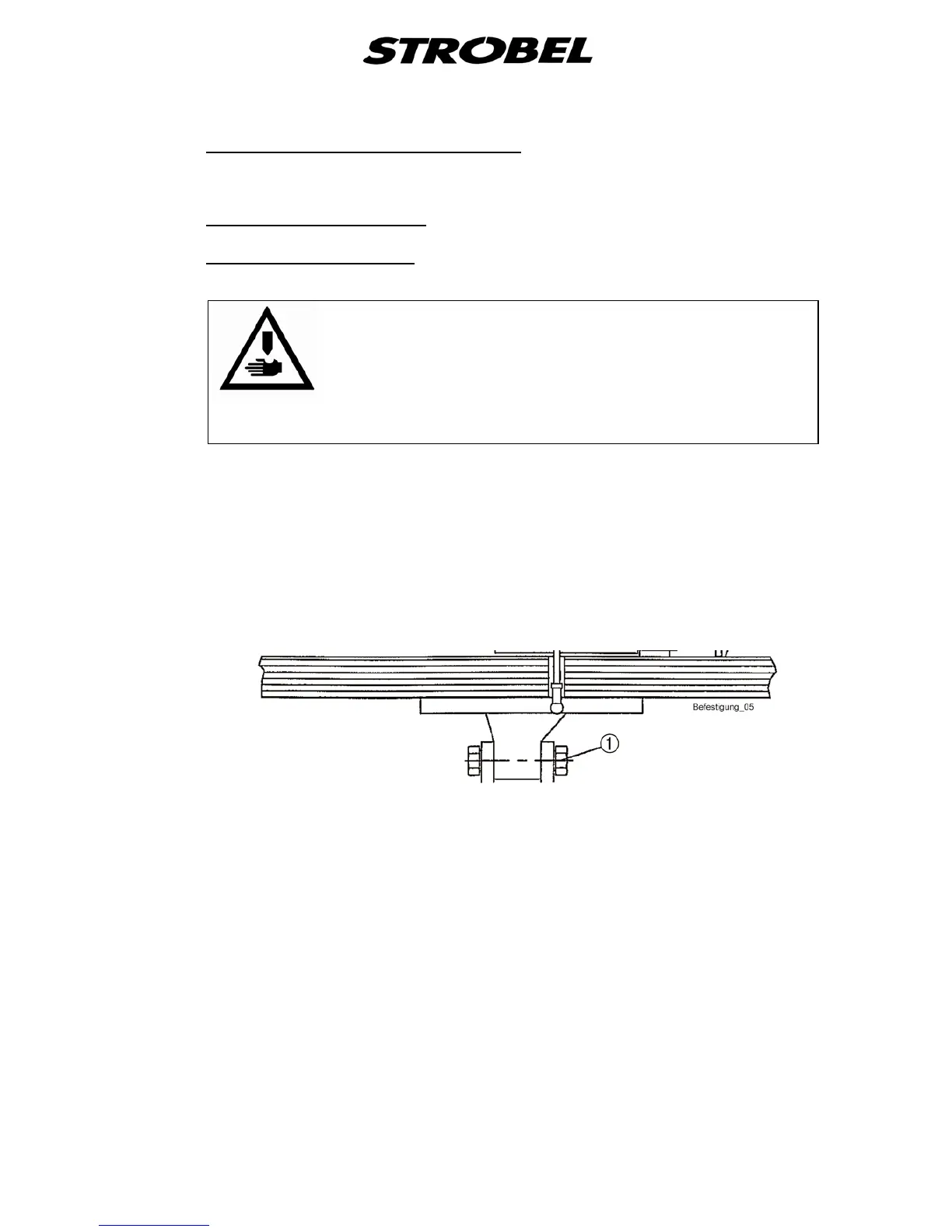

The tensioning of the V-belt is carried out by swivelling the motor underneath
the table plate after releasing the retaining nut with SW 24, (1) in Fig. 1.
The V-belt must not be tensioned too much, especially with the stop motor. You
should be able to compress it with light thumb pressure by about 2 cm.
Too little V-belt tensioning can impair the positioning of the machine and
therefore impair the function sequence.
Fig. 1
