3.4.2 Positions of the machine
Caution! Danger of injury!
Danger of crushing fingers and needle through stitching as
well as pulling in of parts of clothing.
Keep fingers and hands away from moving parts when
setting the position generator and checking the positions
with switched-on machine.
General:
Stop motors require a position generator, which takes the mechanical setting of
the machine from the main screw and transmits this to the control of the motor.
With this, for instance, the thread cutter can always be electrically approached
in exactly the same needle looper position. (Fig. 2)
The correct position of the position generator to the flange is marked with a spot
of paint.

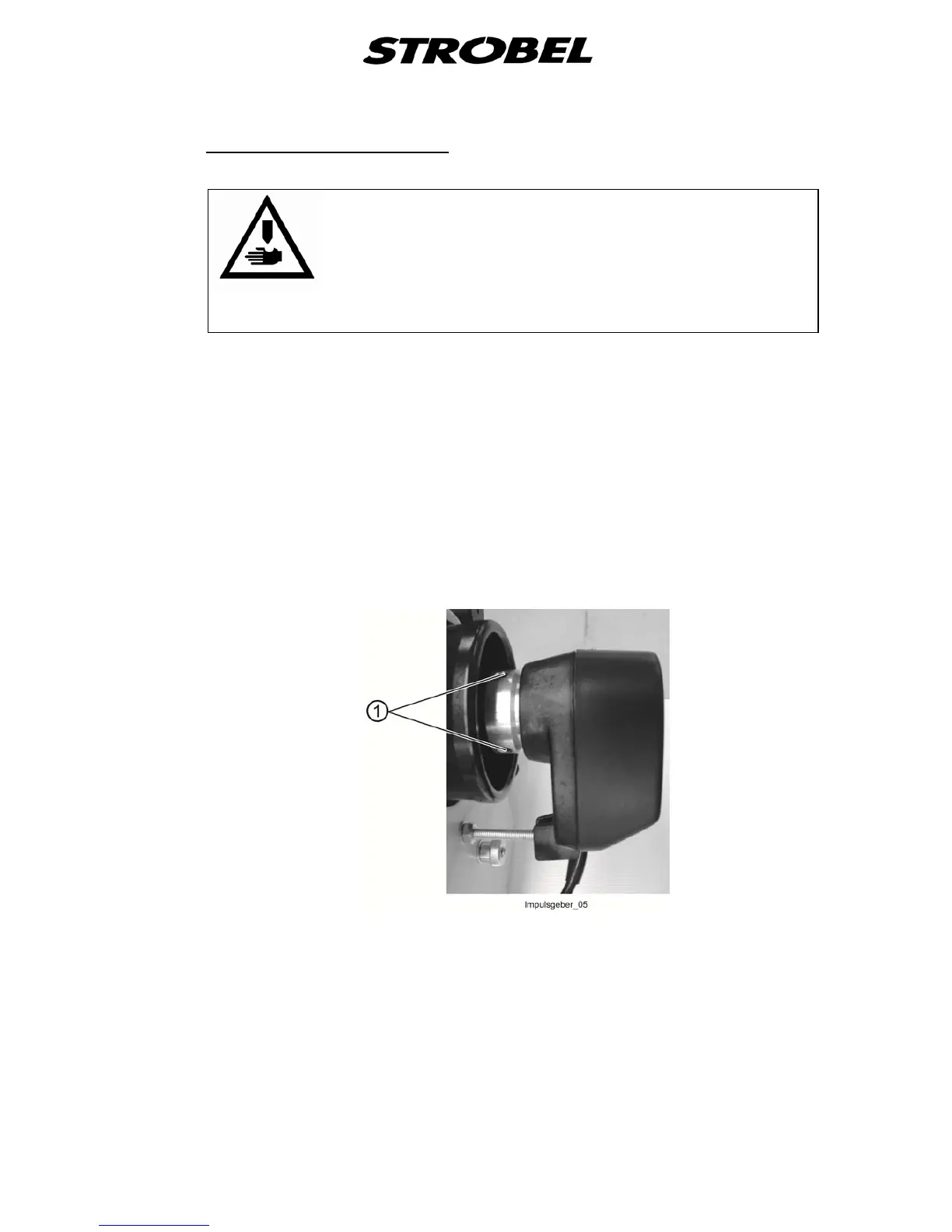

To adjust or to remove, release the two clamping screws (1), Fig. 2 tighten
these firmly prior to commissioning.
Fig. 2
With positioning with plunger reset, the motor reverses after thread cutting for a
certain value, to facilitate the insertion of the sewing matter. This does not affect
the setting of the position generator.
