21
MA_VEB100-2-4-5_
A5-3_230123_en.doc
3.1.1
Removing the stit
ch plate (Fig. 6
)
-
Switch off machine electrically.
-
Remove needle and needle lever.
-
Remove the thread trimmer's drive unit as described under “
3.9.1 Removing and
remounting of the thread trimmer drive (Fig.
22
)
” or pull the plug only.
-
Release stitch plate fastening screws (1) and
(2) and remove the com
p
lete stitch
plate unit to the front.

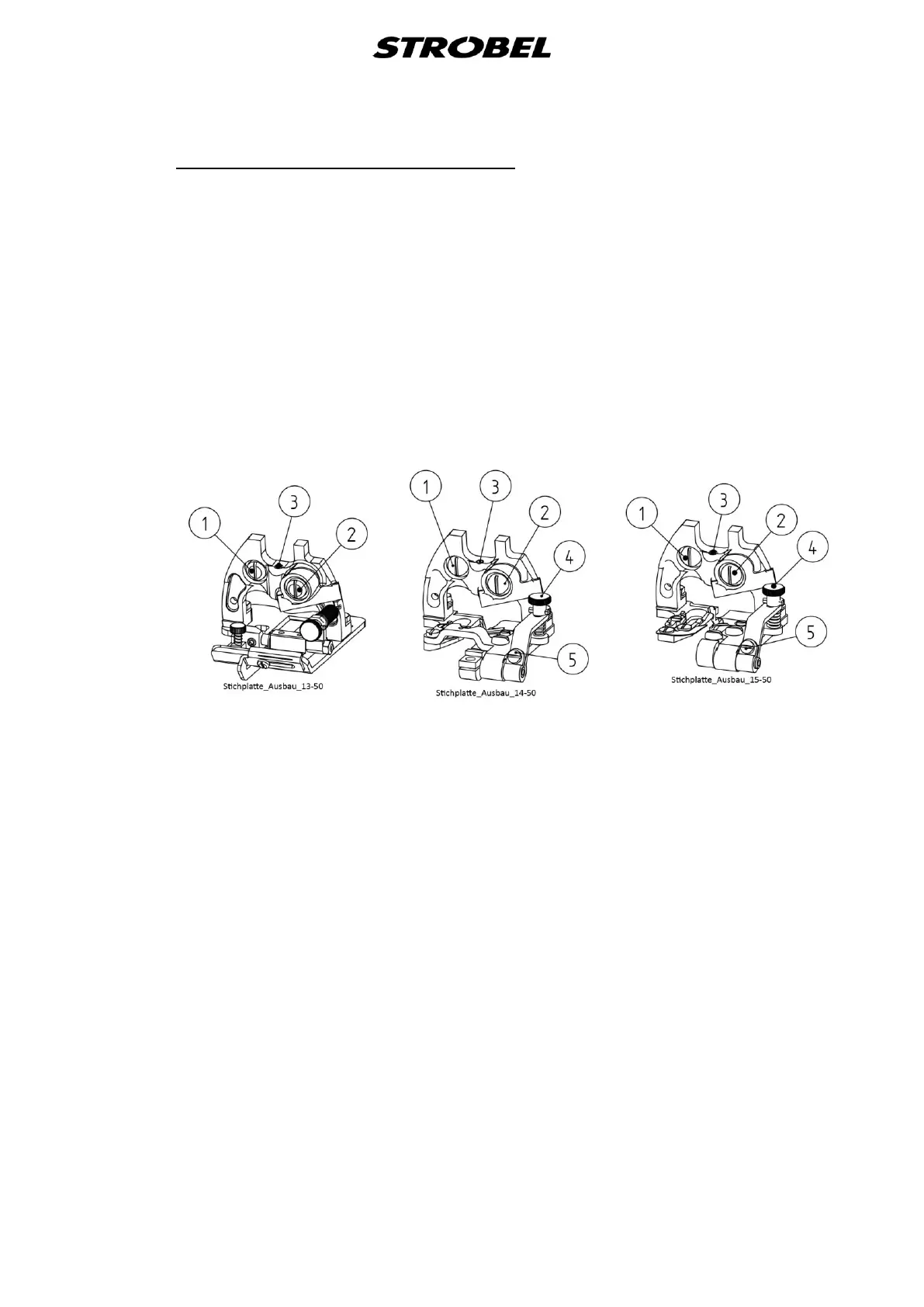

Fig. 6
a
b
c
Cl. VEB100-2
Cl. VEB100-5
Cl. VEB100-4
24
26
Table of Contents
Table of Contents
5
General Notes on Safety
7
General Notes
9
Operating Instructions
9
Class Description, Serial Number and Initial Basis for Description
9
Range of Application and Intended Use
9
Power Supply
10
General Notes
10
Mains Connection of the Machine
10
Mains Structure
10
Mains Voltage and Frequency
11
Mains Connection
11
Control Sockets
12
Motor Connection Cables
12
Sewing Lamp
13
General Notes
13
Function Sequence, Machine Class and Operating Concept
15
General Function Sequence
15
Technical Data of Machines
16
Class VEB100-2
16
Class VEB100-4
18
Class VEB100-5
20
Brief Setting Instruction
22
Class VEB100-2
22
Class VEB100-4
22
Class VEB100-5
23
Notes on Repair and Adjustments
24
Stitch Plate Assembly (Fig. 5)
24
Removing the Stitch Plate (Fig. 6)
25
Installing the Stitch Plate (Fig. 6)
26
Adjusting the Stitch Plate (Fig. 7)
26
Replacing the Needle Slide Plate (Fig. 8)
26
Adjusting the Cloth Retainer (Fig. 9)
27
Setting the Folder
28
Replacing the Folder
29
Needle Lever
30
Assembly
30
Adjusting the Needle Stroke (Fig. 12, Fig. 13 and Fig. 15)
31
Loop Stroke
33
Adjusting the Loop Stroke
33
Looper
34
Removal and Installation of the Looper Shaft
34
Looper Deflection (Fig. 14)
34
Adjusting the Looper (Fig. 15)
35
Feed Dogs
36
Adjusting the Feed Dog (Fig. 16)
36
Pressure Foot
37
Adjusting the Pressure Foot
37
Adjusting the Lifting for the Pressure Foot (Fig. 16)
37
Presser
38
Replacing the Presser Shaft (Fig. 17)
38
Adjusting the Presser (Fig. 18)
39
Adjusting the Material Support Arm
40
Setting the Pre-Tension of the Spring in Spring-Loaded Plungers
41
Pneumatic Lifting
41
Setting the Lifting
41
Thread Trimmer (Fig. 22)
42
Removing and Remounting of the Thread Trimmer Drive (Fig. 22)
43
Adjustment
43
Replacing the Knife (Fig. 22 und Fig. 23)
44
Interval Gear (Fig. 20)
44
Setting the Interval Gear (Fig. 20)
44
Operation and Settings of the Control Unit
45
Operating and Display Elements
45
DAC Classic Control for Strobel Machines
47
Setting the Parameters
48
General
48
Speed
49
Direction of Motor Rotation
49
Softstart
49
Sewing Foot Lifting
50
Thread Trimmer
51
Set the Reference Position
52
Cutting Position (Fig. 23)
53
Circuit Diagrams
54
Electric Connection Diagram VEB100-2, -4, -5
54
Electric Connection Diagram- Thread Trimmer VEB100-2, -4, -5
55
Pneumatic Circuit Diagram - Pneumatic Lifting VEB100-2, -4, -5
56
Pneumatic Construction Circuit Diagram- Pneumatic Lifting VEB100-2, -4, -5
57
