14 BA_VEB100-1-2-2W-4-5_A3-1_180615_en

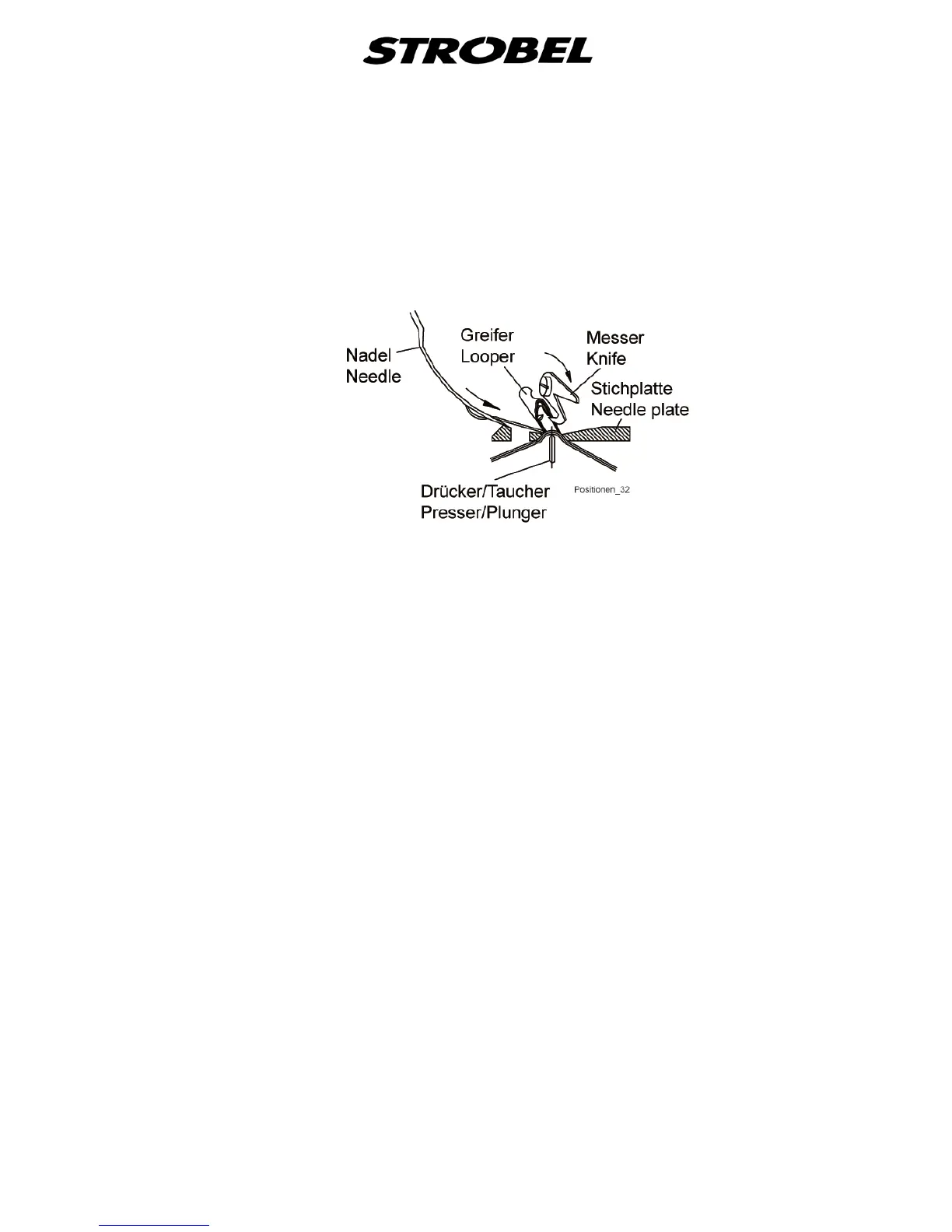

Needle position (when stopped within and outside of the stitch (Fig. 4))
(when using a thread trimmer):
Adjust the needle position so that when the machine is switched off, the
hook of the thread blade can reliably catch the thread loop above the
looper without touching it.
In conclusion, check this by manually actuating the thread trimmer.
Fig. 4
Notes for sewing drives with more than needle positions:
The needle position given above is suitable for sewing at position 2.
It is very important to set position 1 in accordance with the operating
instructions pertaining to the chosen mode of sewing.
