Controls/Functions

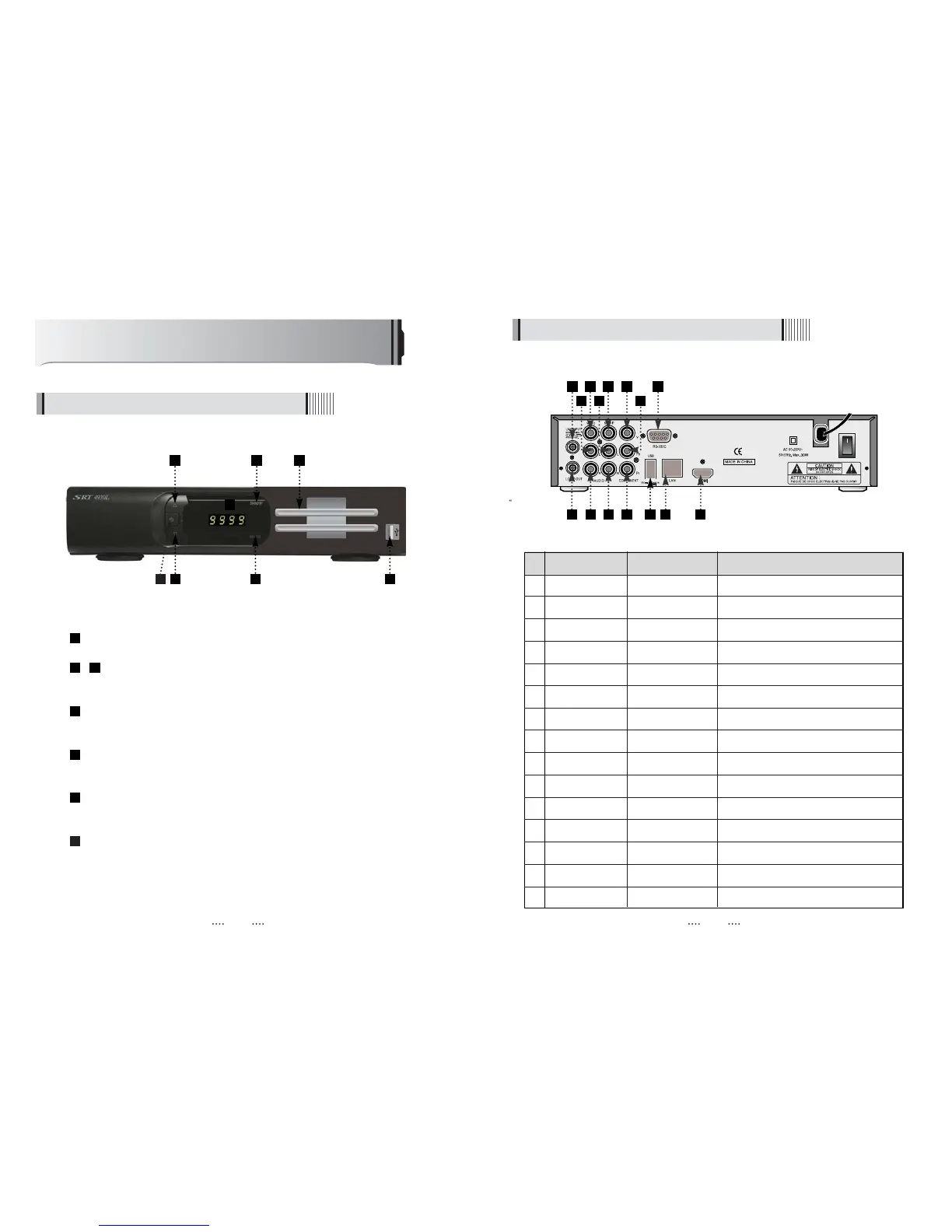

4.1 Front Panel
4.2 Rear Panel
Power : Switches the receiver between ‘Standby’ and ‘Power ON’ modes.
- CH.
Ɗ
/
ƌ
: To switch channels or change the cursor position on the
application screen.
Standby/Power on Indications Lamp : Flashes red light in ‘Standby’ mode
and shows no light in ‘Power ON’ mode.
Indication Light : Flashes when a key on the Remote Control Unit (RCU) is
pressed.
USB : To connect USB devices such as Memory stick or external Hard Disk
Drive.
Smart Card Reader : Insert smart card for encrypted channel access.
7
6
5
4
32
1
2 4 7
3 5 6
1 3
6 9 12
4 7 10
2 5 8 11
1413
No. Name Connector Function
1 LNB INPUT IEC 169-24 FEMALE IF input from LNB to digital tuner
2 LOOP OUT IEC 169-24 FEMALE IF loop-through output from digital tuner
3 VIDEO RCA cinch Composite video output
4 AUDIO L RCA cinch Left audio output
5 AUDIO R RCA cinch Right audio output
6 S/PDIF RCA cinch Digital audio output
7 AUDIO L RCA cinch Left audio output
8 AUDIO R RCA cinch Right audio output
9 Y RCA cinch Component video output (Y)
10 Pb RCA cinch Component video output (Pb)
11 Pr RCA cinch Component video output (Pr)
12 RS-232C DB-9 Low speed serial port
13 LAN RJ-45 10/100Mbps Ethernet
14 HDMI HDMI Digital Video/Audio Output
