7. In case of normal VIDEO SIGNAL flowing out but abnormal AUDIO SIGNAL.
☞ Check that ADAC_L(U201 PIN2),ADAC_R(U201 PIN9) signals have normal inputting and
outputting from MAIN CPU. The signal is linked to SCART.

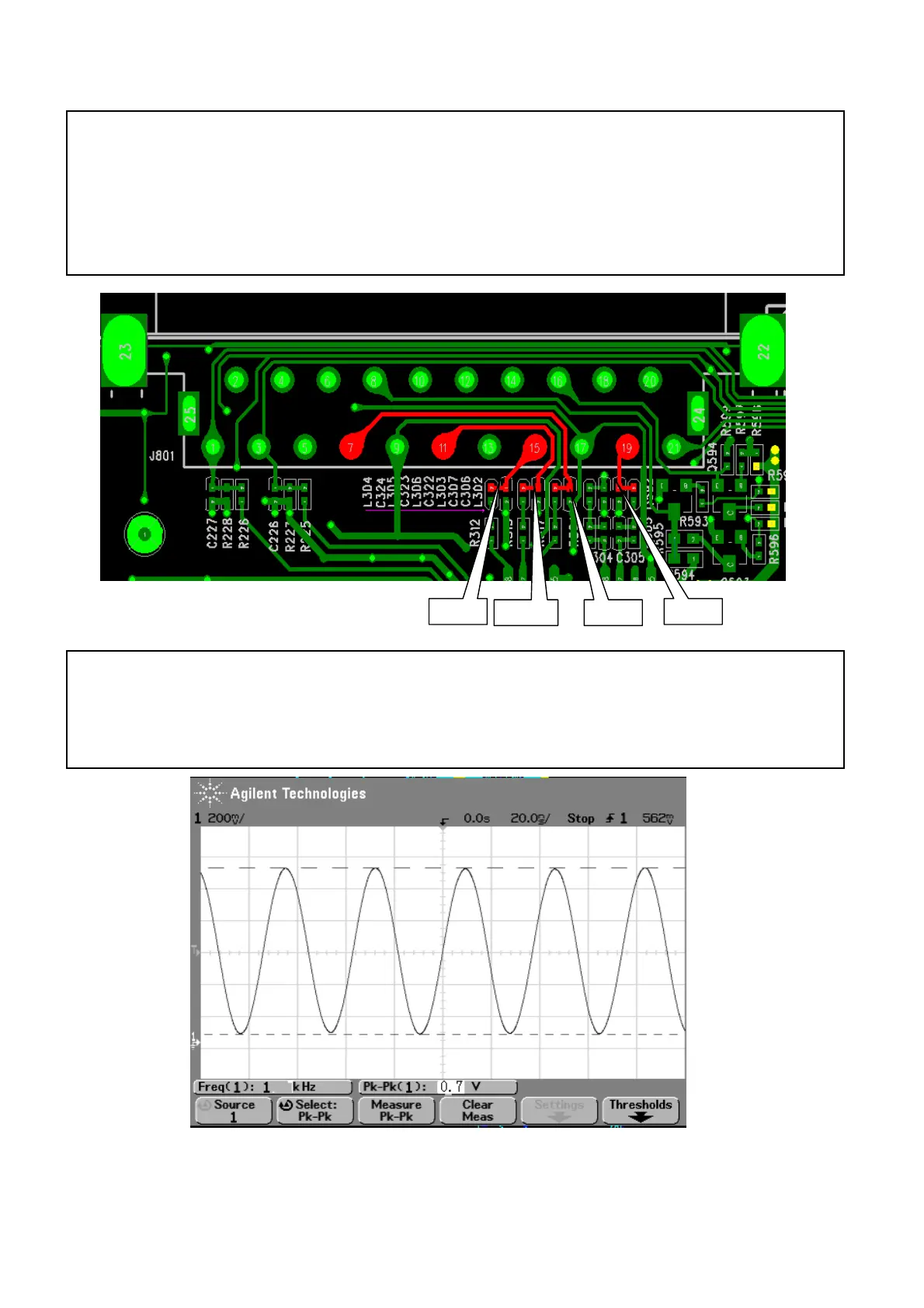

5. In case of no MPEG and no OSD at the same time.
☞ Check that 1Vp_p(0.7Vp_p for RGB) comes out normally from VIDEO PART(CVBS) of
MAIN CPU.
BLUEGREEN
RED CVBS
