4.2 USB – SIS3153 VME Space Data Rate
4.2.1 VME Data Rate measured with a Chrislin VME Memory
USB2.0
approximate continuous Data Rate
Write
Read
A32-D32
15 KByte/sec
15 KByte/sec
A32-DMA-D32
9 MByte/sec
9 Myte/sec
A32-BLT32
19 MByte/sec
25 Myte/sec
A32-MBLT64
19 MByte/sec
39 Myte/sec
USB3.0
approximate continuous Data Rate
Write
Read
A32-D32
81 KByte/sec
84 KByte/sec
A32-DMA-D32
9 MByte/sec
9 Myte/sec
A32-BLT32
25 MByte/sec
26 Myte/sec
A32-MBLT64
50 MByte/sec
54 Myte/sec

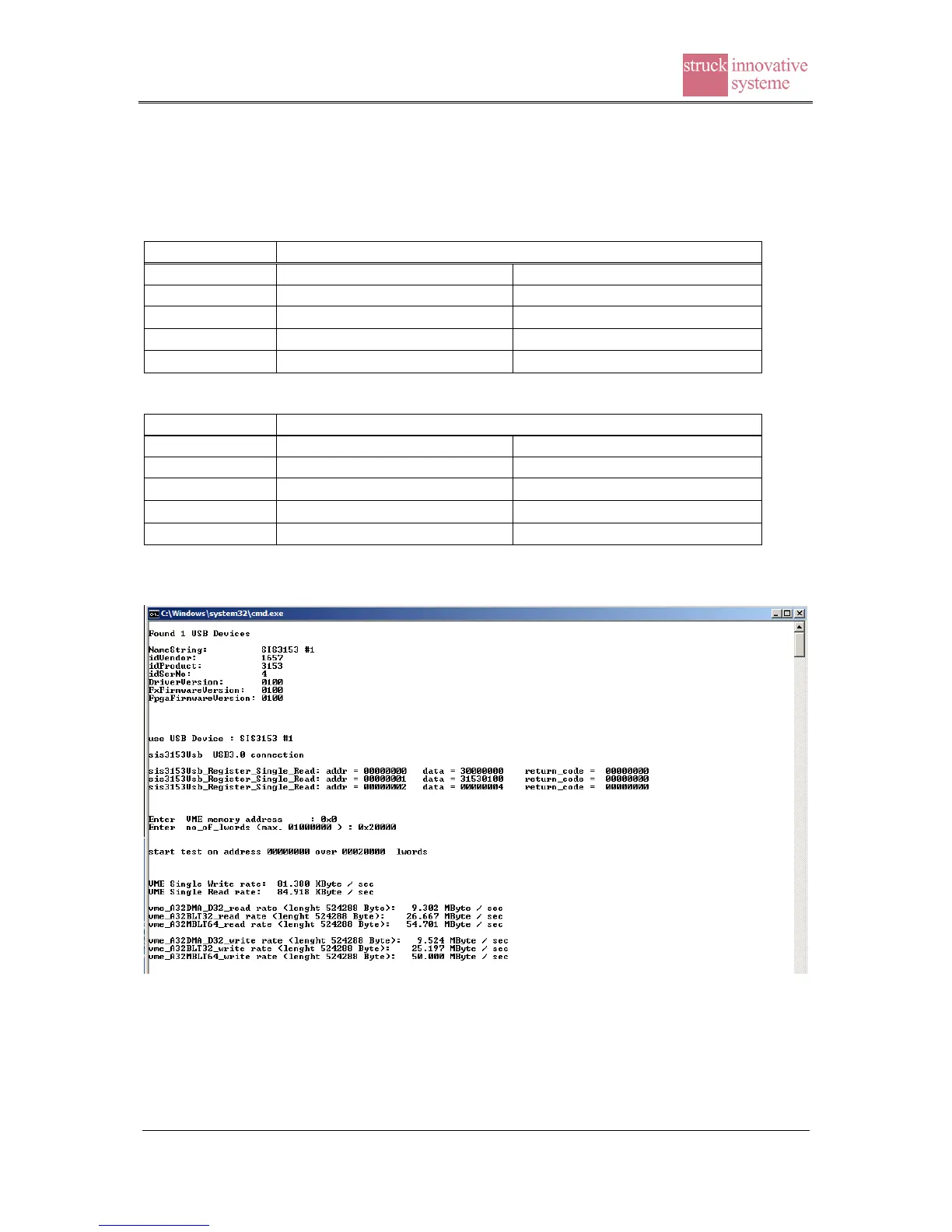

Screen shot of the test program with USB3.0 connection.
Note: The Chrislin memory is a legacy card, which does not have a state of the art VME slave
implementation, but provides means to test standard read/write cycles like A32 D32.
