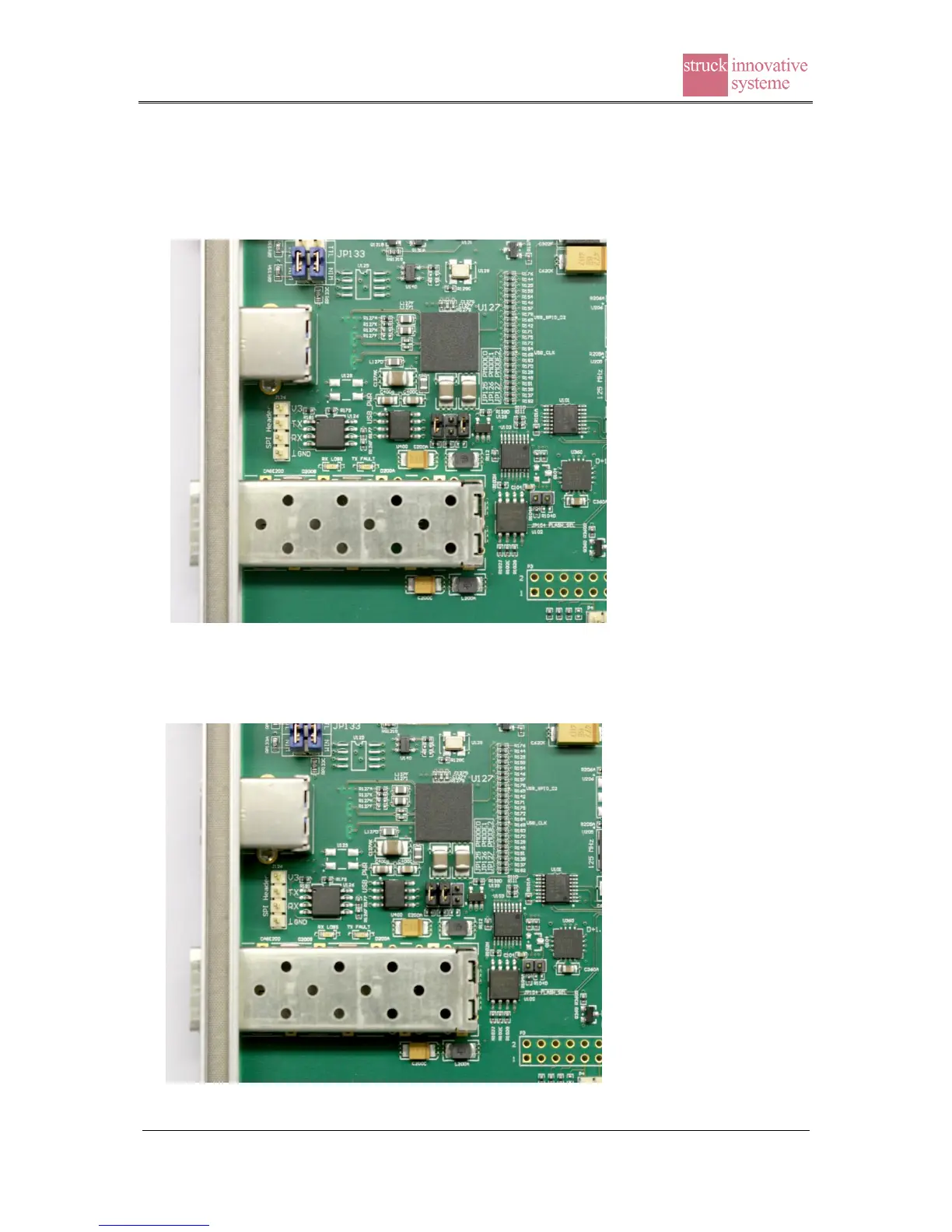

7.5 FX3 Boot mode (SIS3153 V2 / SN006 and above)
Normal operation (FX3 starts with a Struck bootloader after PowerUp)
PMODE0 and PMODE2 are closed
Force the FX3 to start with a “Cypress default bootloader”
PMODE0 and PMODE1 are closed
