Page 26 of 38

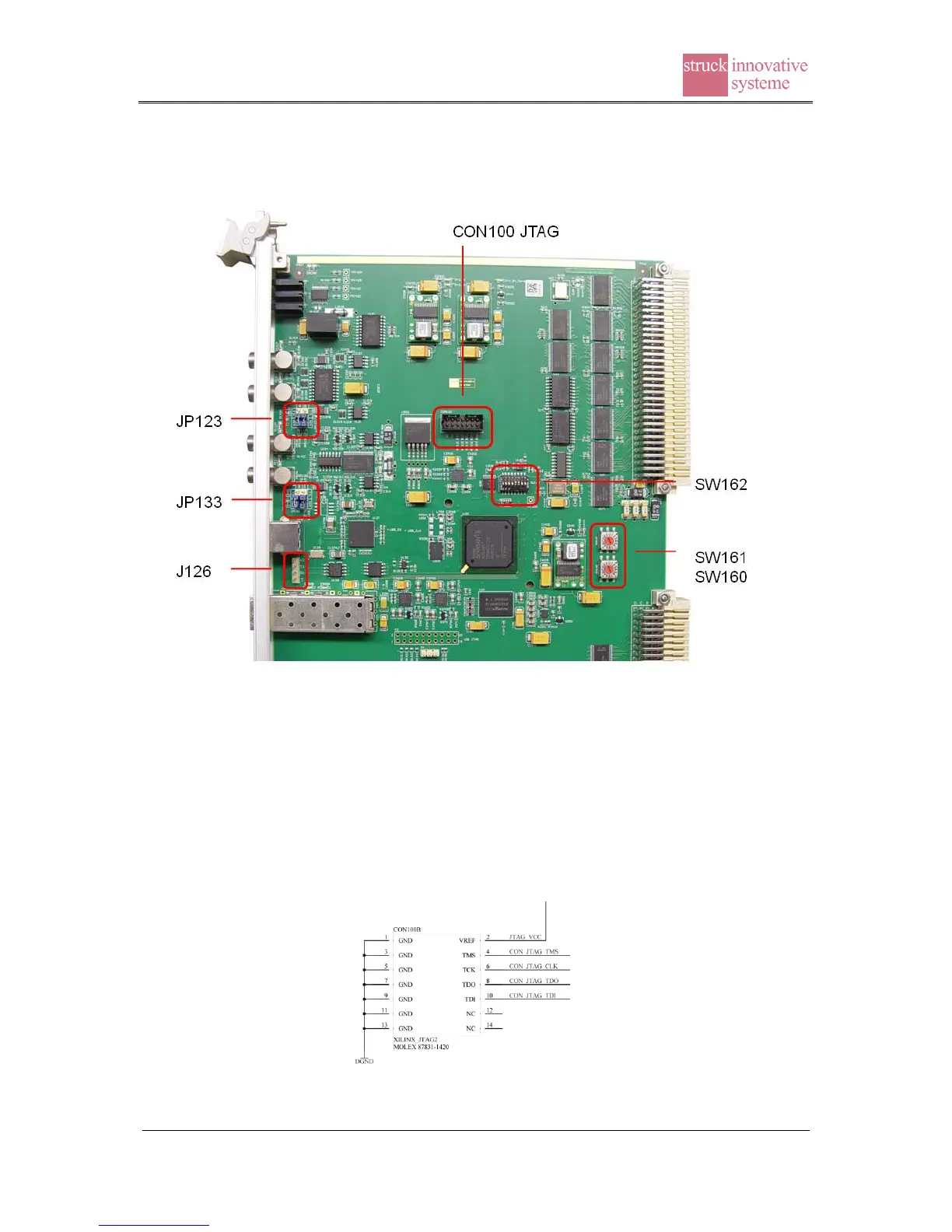

7 SIS3153 Jumpers, Switches and Connectors
The SIS3153 card has three jumper arrays, one DIP switch and two rotary switches.
7.1 CON100 JTAG
The SIS3153’s on board logic can load its firmware from a SPI Flashprom or via the JTAG
port on connector CON100.
Hardware like the HW-USB-II-G-JTAG in connection with the appropriate software will be
required for in field JTAG firmware upgrades.
CON100 is a 2mm (i.e. metric) 14 pin header that allows you to reprogram the firmware of
the SIS3153 board with a JTAG programmer. The pinout is shown in the schematic below. It
is compatible with the cable that comes with the XILINX HW-USB-II-G-JTAG platform
cable.
Note: The board has to be powered for reprogramming over JTAG
