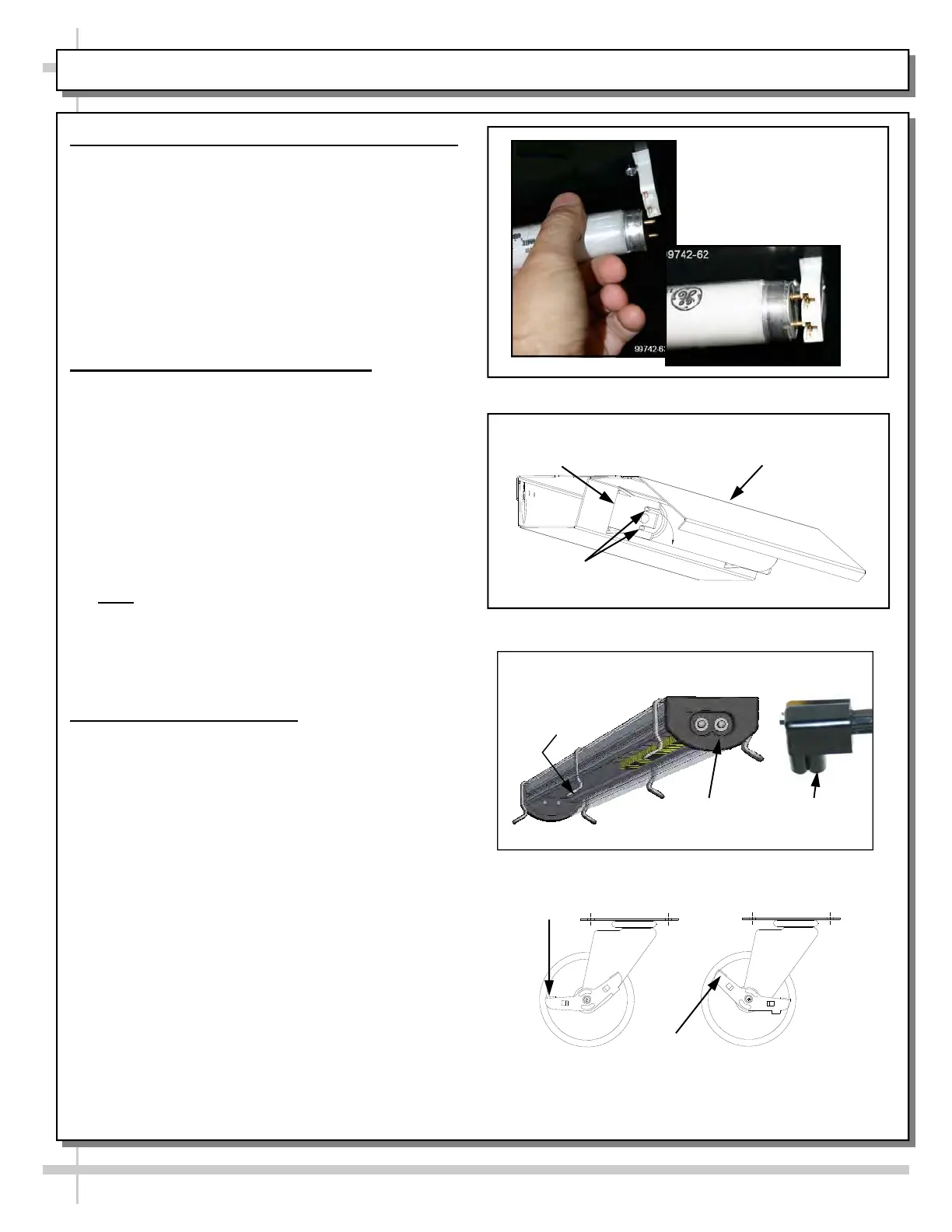

Structural Concepts CO47R - Maintenance Fundamentals: Light Fixtures; Caster Locks

14
1. Standard T-8 Fluorescent Style Light Fixtures
Removal of lamps:
 Grasp lamp firmly and carefully pull downward
and out from socket.
 See photos at mid-right.
Installation of lamp:
 Align pins with slot.
 Insert pins into socket and push upward into
place.
 See photos at mid-right.
2. LED Style Light Fixtures (Optional)
Removal of lamp:
 If case is provided with LED lights, they will
rarely require change-out.
 Contact Structural Concepts’ Technical Service
Department for replacement parts (see the
Technical Service section of operating manual).
Replacement of lamp:
 To replace LED Light Fixture, simply disconnect
the existing LED light from its brackets and/or
self-adhesive tape. Replace.
 Note: LED Light and Plug must be connected in
a specific manner or they will not work.
 Make certain flat edge of plug connects to flat
edge of LED light.
 See illustrations at lower right.
3. Caster Locking Operation
 To lock casters push down on lever, to unlock
pull up the lever all the way.
 See illustration at lower-right.
14
MAINTENANCE FUNDAMENTALS: LIGHT FIXTURES / CASTER LOCKS
Lamp Pins
Light Socket
Light Fixture
Standard T-8
Fluorescent
Light Fixtures
Locked
Unlocked
--- LED Plug & Light Fixture ---
LED’s
Oval Form
Plug’s Oval
Form
Retaining
Spring (Typ.)
