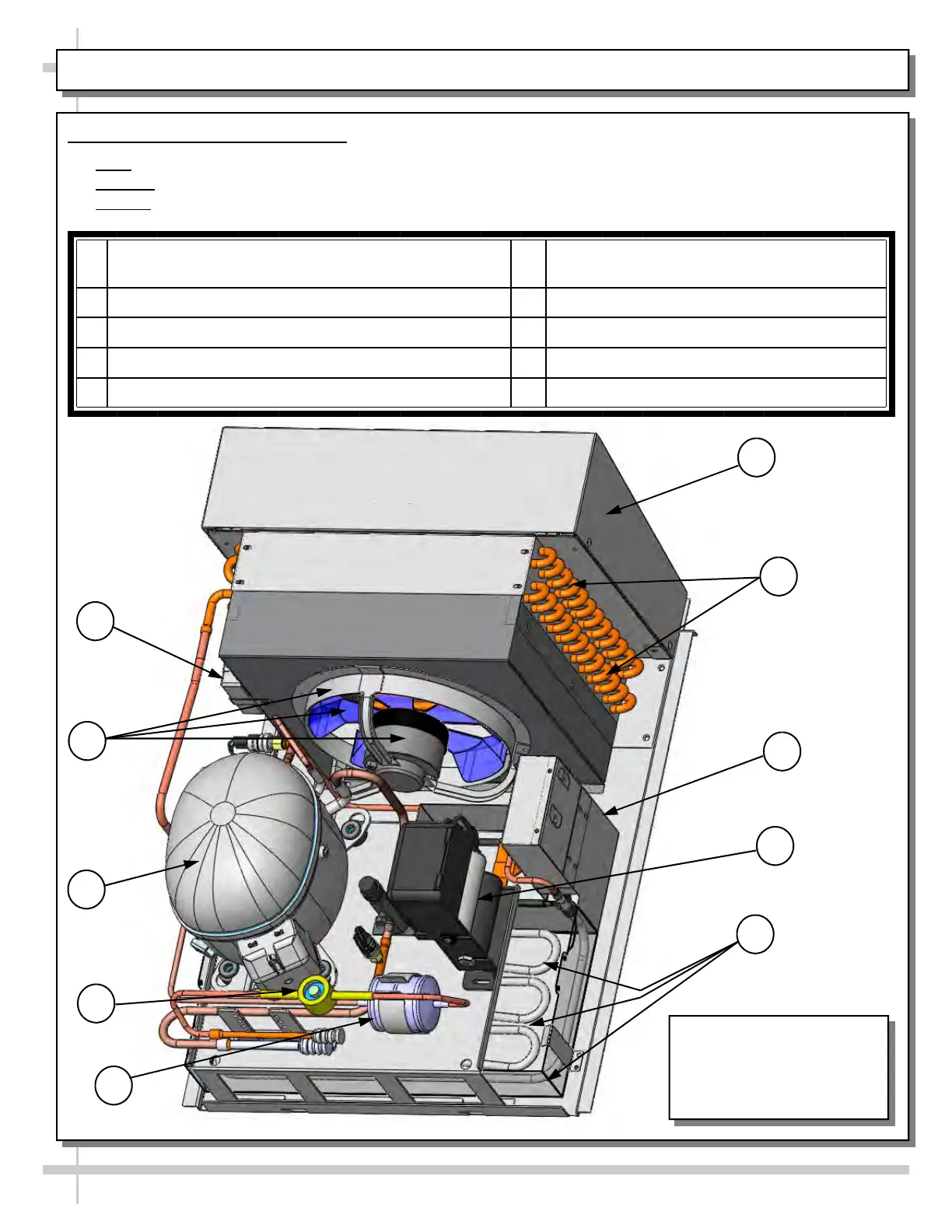

CONDENSER PACKAGE LAYOUT: MODELS CO35R AND CO37R ONLY
Typical Configurations, Continued
 Note: Unit shown below is for models CO35R & CO37R only. Your condenser package layout may vary.
 Caution: Only certified refrigeration/electrical engineers or contractors are to access condenser unit.
 Access: Remove front grille by lifting up and off (no screw removal required). Slide out.
6
8
9
10
1
3
5
2
1
Condenser Coil Shroud (Optional: May House Clean
Sweep™ Automatic Condenser Coil Cleaner)
6 Filter / Drier
2 Condenser Coil Tubing 7 Sight Glass
3 Electrical Coil Overflow Condensate Pan 8 Refrigeration Pump
4 Embraco® Start Components 9 Fan Motor & Fan Shroud
5 Hot Gas Condensate Pan & Serpentine Rods 10 Automatic Condenser Coil Cleaner Driver
EnergyWise Refrigeration
Package for Model CO35R
CO37R. See Following
Pages for Other Models.
