Structural Concepts CO47R - Models CO45 R, CO47 R, CO55 R & CO57 R

21

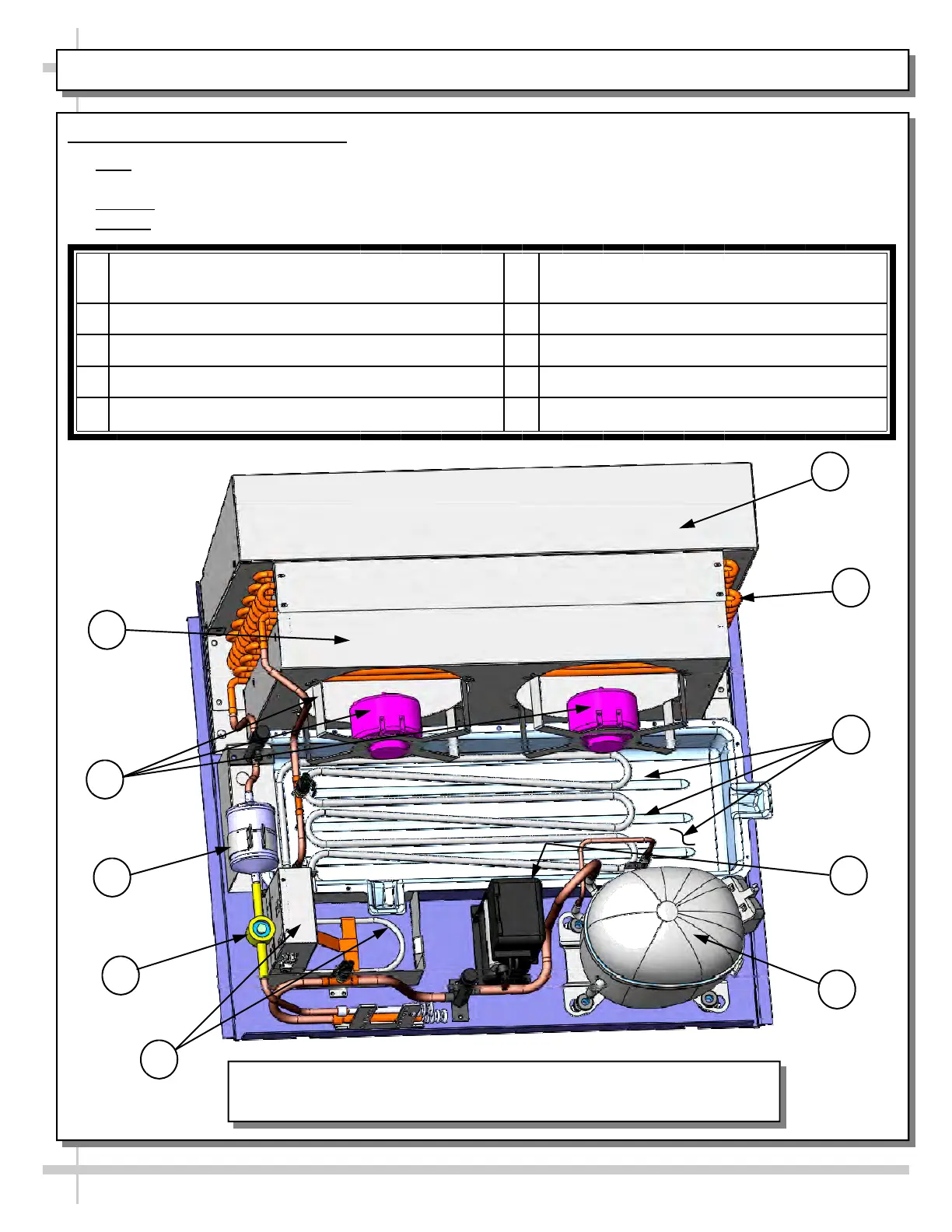

CONDENSER PACKAGE LAYOUT: MODELS CO45R, CO47R, CO55R & CO57R ONLY
Typical Configurations, Continued
 Note: Unit shown below is for Model CO45R, CO47R, CO55R & CO57R only.
 Your condenser package layout may vary.
 Caution: Only certified refrigeration/electrical engineers or contractors are to access condenser unit.
 Access: Remove front grille by lifting up and off (no screw removal required). Slide out.
6
8
9
10
1
3
5
2
1
Condenser Coil Shroud (Optional: May House Clean
Sweep™ Automatic Condenser Coil Cleaner)
6 Electrical Coil Overflow Condensate Pan
2 Condenser Coil Tubing 7 Sight Glass
3 Hot Gas Condensate Pan & Serpentine Rods 8 Filter / Drier
4 Embraco® Start Components 9 Fan Motors & Fan Shroud
5 Refrigeration Pump 10 Fan Shroud
EnergyWise Refrigeration Package for Model CO45R, CO47R, CO55R &
CO57R is Shown Above. See Accompanying Sheets for Other Models.
7
4
