EVAPORATOR COIL FANS ACCESS
Evaporator Coil Fans Access
 Remove all product.
 Remove display steps (if any).
 Remove deck pan for coil fans access.
 Caution! Turn off main power before accessing the evaporator coil / deck pan area. Rotating blades can
cause severe injury!

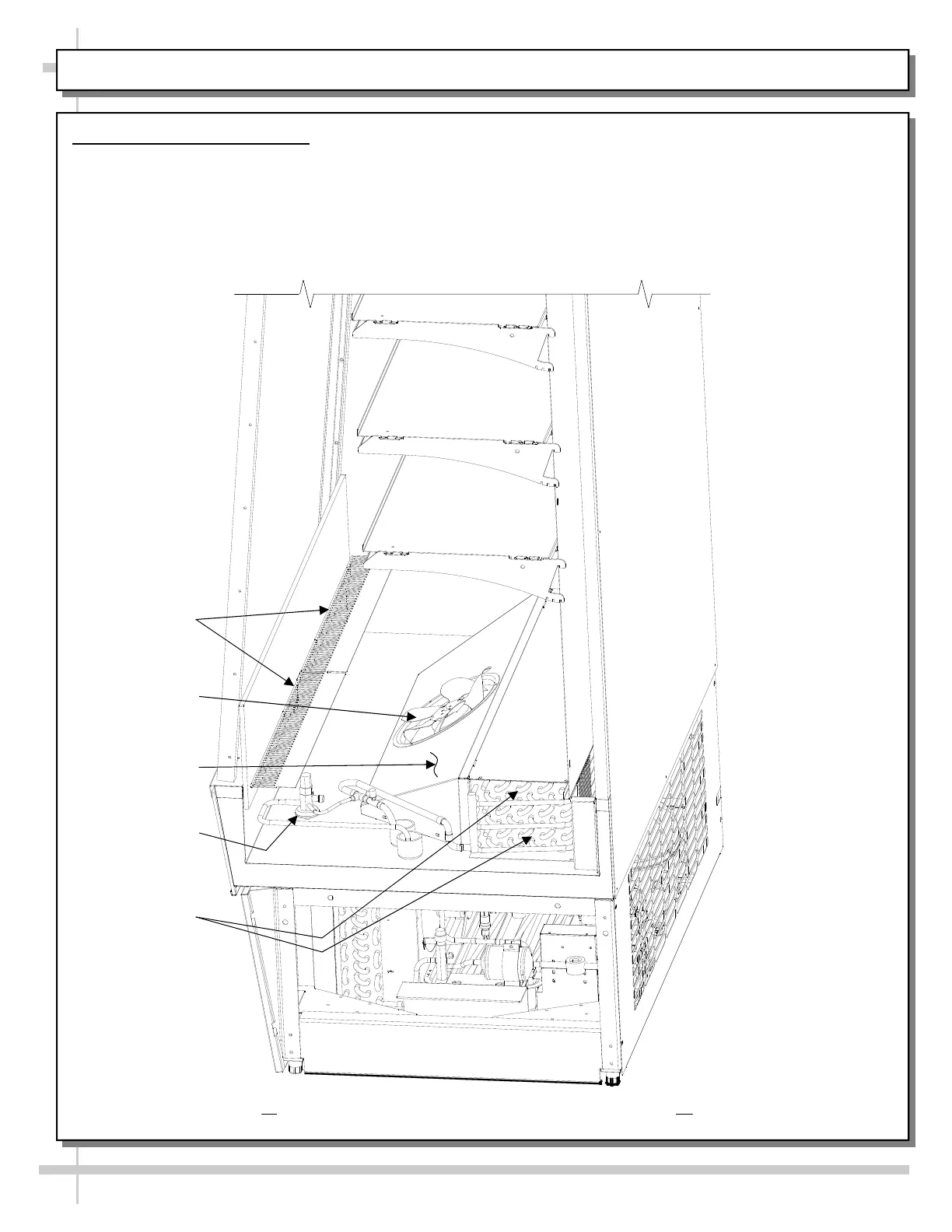

Model CO47R Shown Above. Your Model May Slightly Vary
Evaporator
Fans
Air Return
Grilles
Fan Shroud
TXV Valve
Evaporator
Coils
