Structural Concepts Oasis BV3632 - Condensate Package Layouts - Page 3 of 3

16
SELF-CONTAINED HOT GAS LOOP CONDENSATE PACKAGE LAYOUTS - PAGE 3 of 3
3. Self-Contained Hot Gas Loop Condensate Package
• Caution: Only trained service providers are to provide maintenance and service to unit.
• Warning! Disconnect power before providing maintenance and service to unit.
• Note: Illustration shown may not reflect your particular condensate package layout.

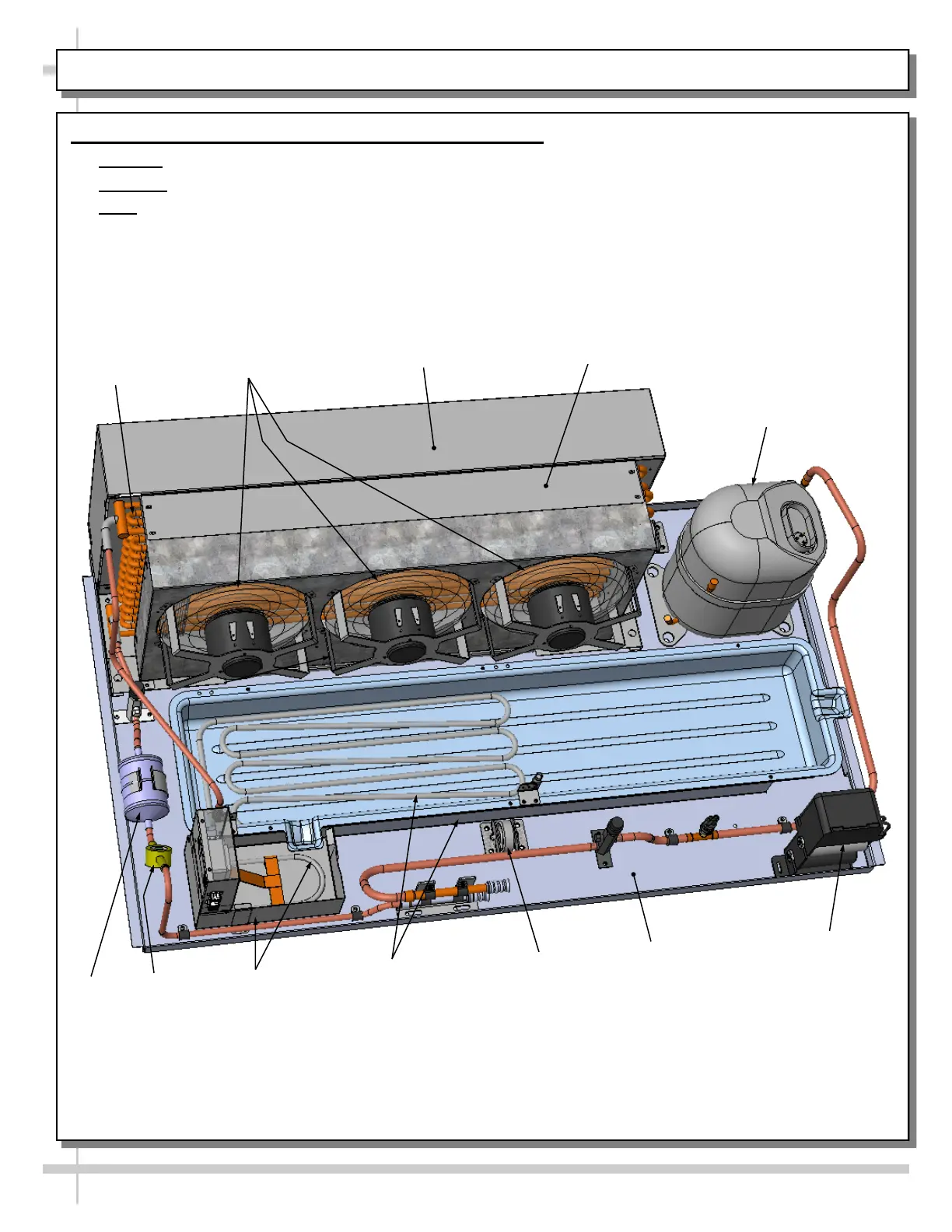

--- Model B6632SC.6241 Condenser Package Component Layout ---
Sight
Glass
Filter
Dryer
Embraco®
Starter Unit
Heater Rod
Overflow Pan
Hot Gas Condensate
Coils and Pan
Condenser Coil
Condenser Coil
Housing
Condenser Coil
Fans & Housing
Compressor
CleanSweep® Housing
Condenser Pan
Caster
Condenser
Pan
