Structural Concepts Oasis BV3632 - Product Loading and Temperature Management Guide; Load Leveling and Placement Cautions; Temperature Ranges by Case Location

MODEL B42 SIDE SHOWN (APPLIES TO ALL MODELS).
CASE IS PARTIALLY DISASSEMBLED AND FILLED
WITH PRODUCT FOR ILLUSTRATIVE PURPOSES ONLY.
17

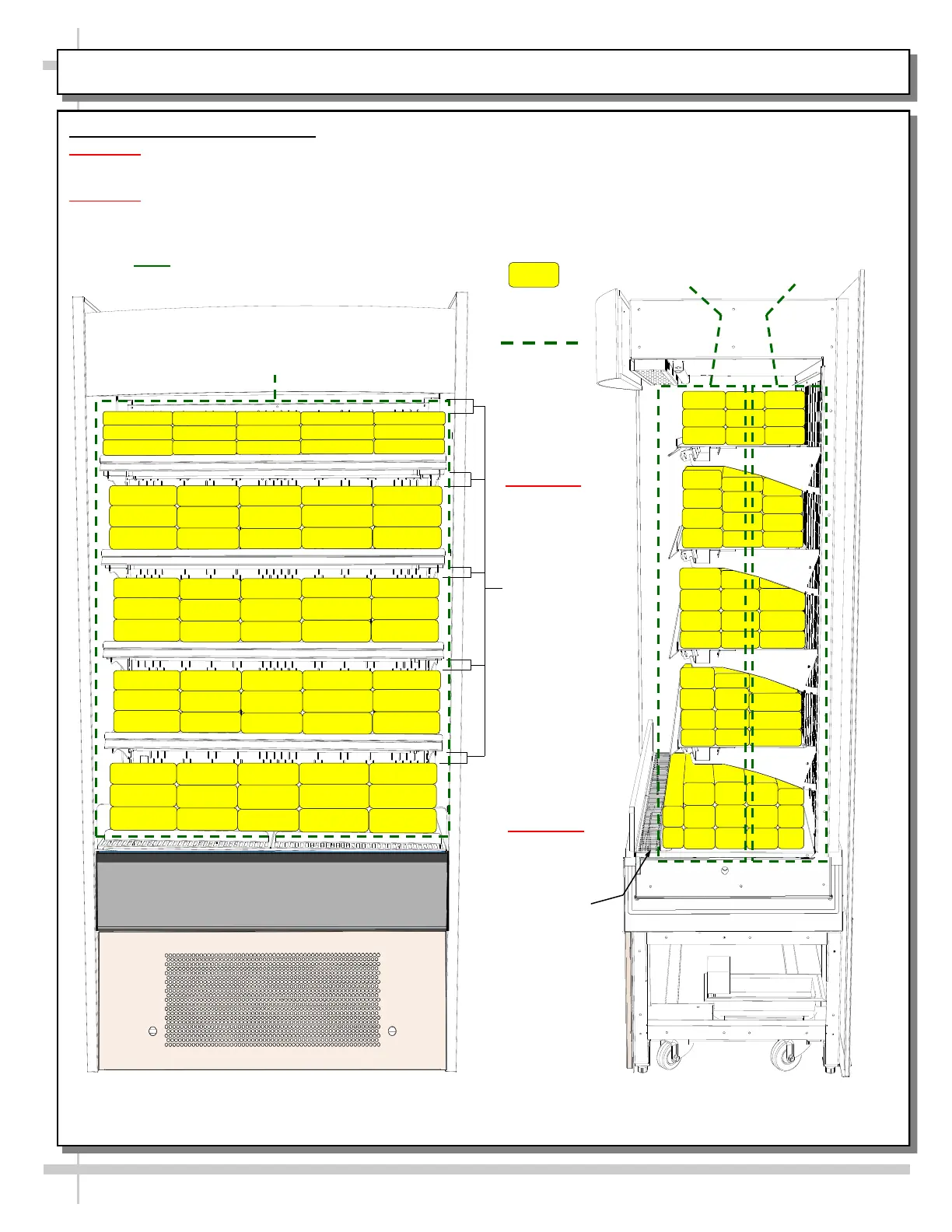

LOAD LEVEL GUIDE / TEMPERATURE GUIDE (MODEL B42 SHOWN / APPLICABLE TO OTHERS)
LOAD LEVEL & TEMPERATURE GUIDE
CAUTION 1: TO PREVENT PRODUCT FROM FREEZING OR BECOMING
OVERLY WARM, ALLOW AT LEAST 1” SPACE BETWEEN PRODUCT
AND UPPER SHELF LIGHTS.
CAUTION 2: TO PREVENT PRODUCT FROM FREEZING OR BECOMING
OVERLY WARM, DO NOT BLOCK AIR RETURN GRILLE WITH PRODUCT.
PACKAGED
PRODUCT
38 °F To 41 °F
PRODUCT AT CASE FRONT
TEMPERATURE
RANGE
MODEL B42 FRONT SHOWN (APPLIES TO ALL MODELS).
CASE IS FULLY ASSEMBLED AND FILLED
WITH PRODUCT FOR ILLUSTRATIVE PURPOSES ONLY.
CAUTION 1:
TO PREVENT
PRODUCT
FROM
FREEZING OR
BECOMING
OVERLY
WARM,
ALLOW AT
LEAST 1”
SPACE
BETWEEN
PRODUCT
AND UPPER
SHELF
LIGHTS.
• IMPROPER PRODUCT PLACEMENT PREVENTS PROP-
ER AIRFLOW CAUSING PRODUCT TO FREEZE OR
BECOME OVERLY WARM.
• FOLLOW THESE PRODUCT PLACEMENT GUIDELINES
TO MAINTAIN DESIRED PRODUCT TEMPERATURES.
CAUTION 2:
TO PREVENT
PRODUCT
FROM
FREEZING OR
BECOMING
OVERLY
WARM, DO
NOT BLOCK
AIR RETURN
GRILLE WITH
PRODUCT.
NOTE: SEE VIEW AT RIGHT FOR PRODUCT
TEMPERATURE RANGE AT FRONT vs. REAR OF CASE
38 °F To 41 °F
PRODUCT AT
CASE FRONT
28 °F To 35 °F
PRODUCT AT
CASE REAR
