1. With a flexible specimen holder mounted,
place a preparation surface on the
preparation disc.
2. Select the ‘thickest’ preparation surface to
be used and place it on the preparation
disc. Usually, this will be SiC Foil on an MD-
Gekko disc, or SiC Paper on an MD-Fuga
disc, or an MD-Alto.
3. Place a spacing disc at a height of 20 mm
on the preparation surface so that it is
below the edge of the flexible specimen
holder.

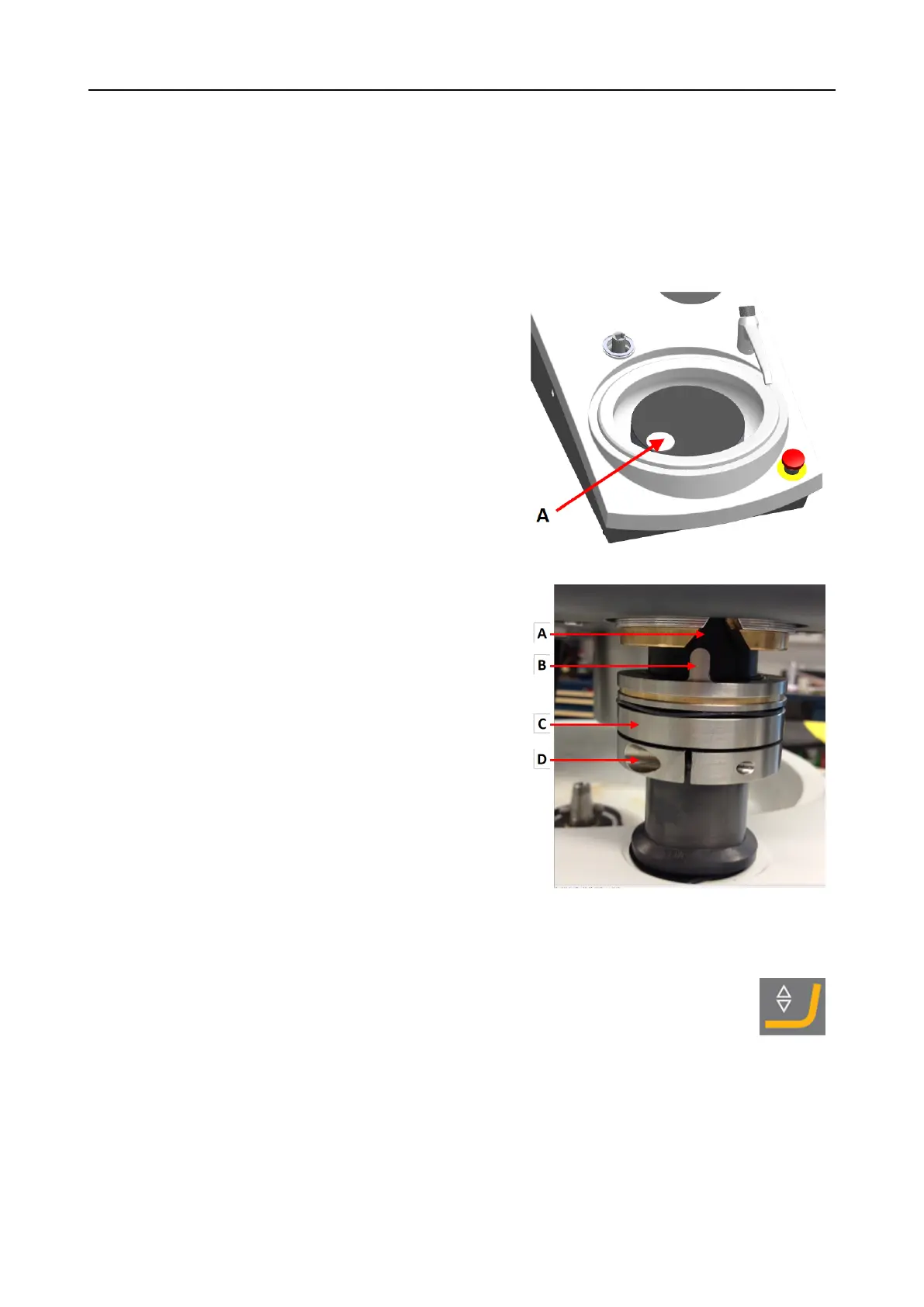

A Spacing disc
4. Support the LaboForce-100 head and
loosen the screw in the adjustment ring.
A V-shaped groove
B Pin
C Adjustment ring
D Fastening screw
5. Press the Lower/Raise button to lower the
specimen mover head. An error message
will appear as the specimen mover head is
not in contact with the adjustment ring.
18 LaboForce-100
5 Installation
