Product Description and Intended Use
11
The Coupler
The coupler threads on to the face of the camera head, enabling a scope
to be attached to the camera. It provides a focusing ring to adjust image
sharpness.

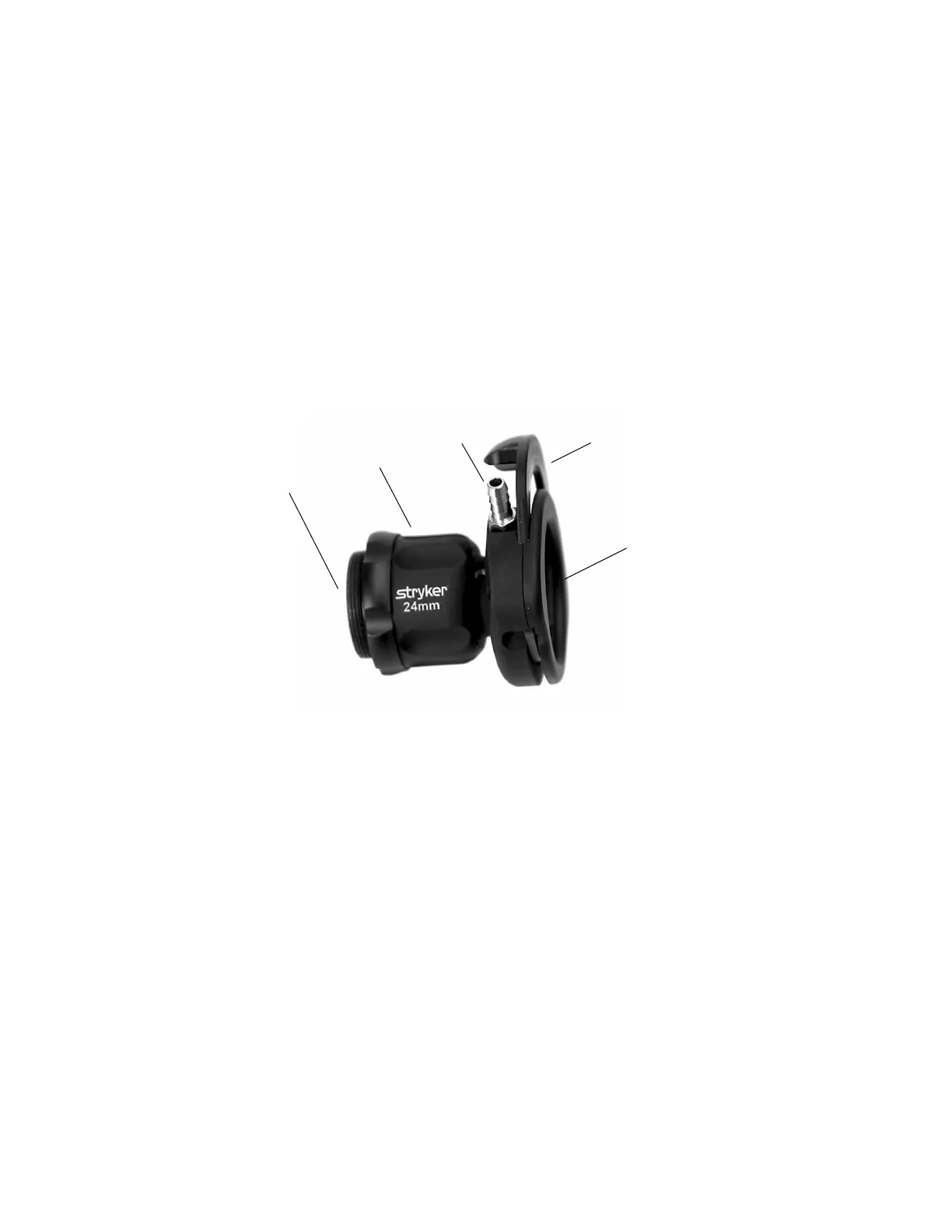

The features of the coupler are listed in Figure 3 below.
Figure 3: The coupler
1. Camera End: Threads onto the camera head
2. Focusing Ring: Adjusts the coupler focus
3. Ventilation Port: Provides ventilation for the coupler lens
4. Endobody Clamp: Secures the scope to the coupler
5. Scope End: Receives the endoscope
1
2
3
4
5
