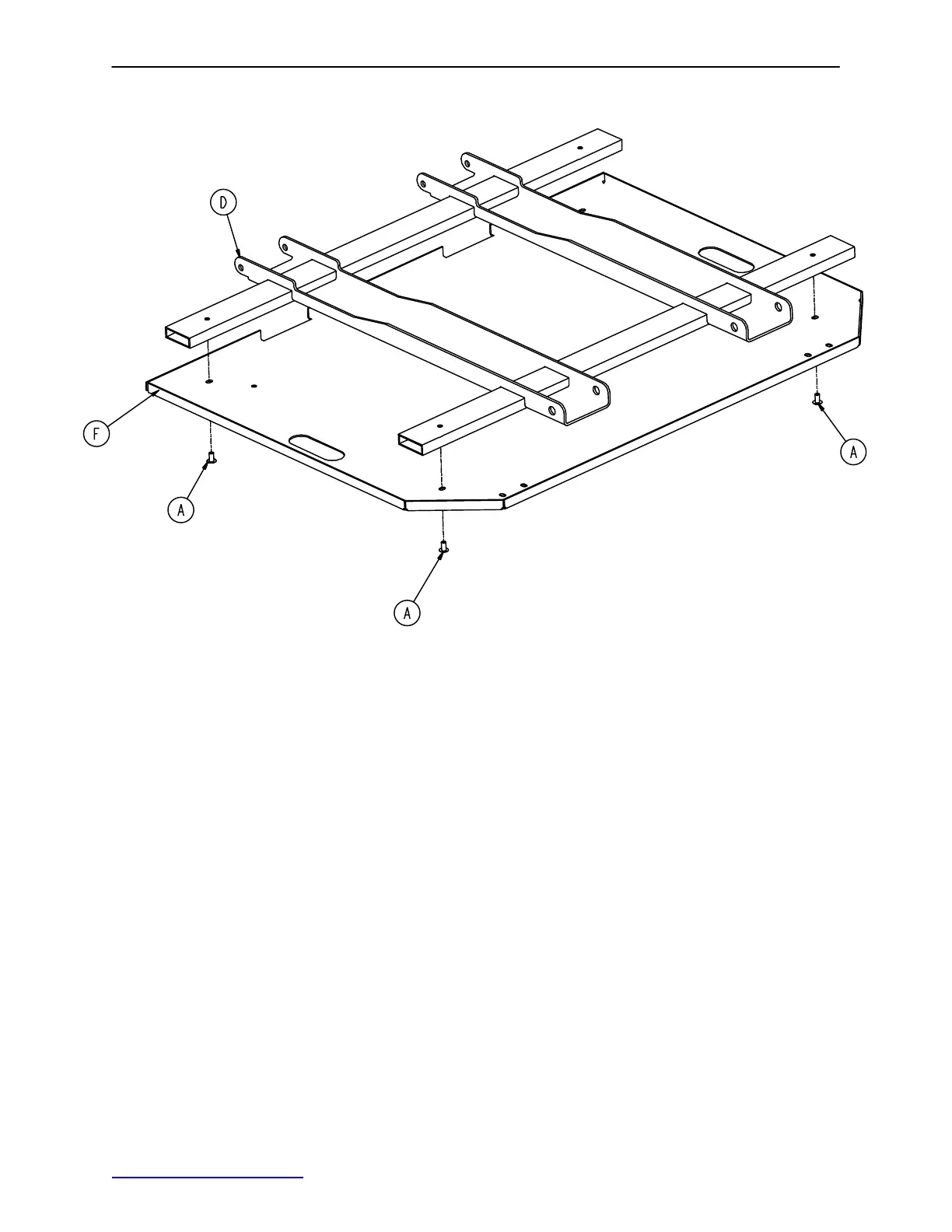

30” Calf Section
Assembly
104
Assembly part number 0785−015−301 (reference only)
Item
Part No.
Part
Name
Qty
.
A
0025−079−000
Rivet
4
D
0785−015−305
Calf Section W
eldment
1
F
0785−015−323
Calf Section Skin
1
Return to Table of Contents
