Service Information
18
SIDERAIL LATCH REPLACEMENT
Required Tools:
3/8” Drive Ratchet T40 Torx Bit
1. Using the foot pedal, raise the litter to maximum height.

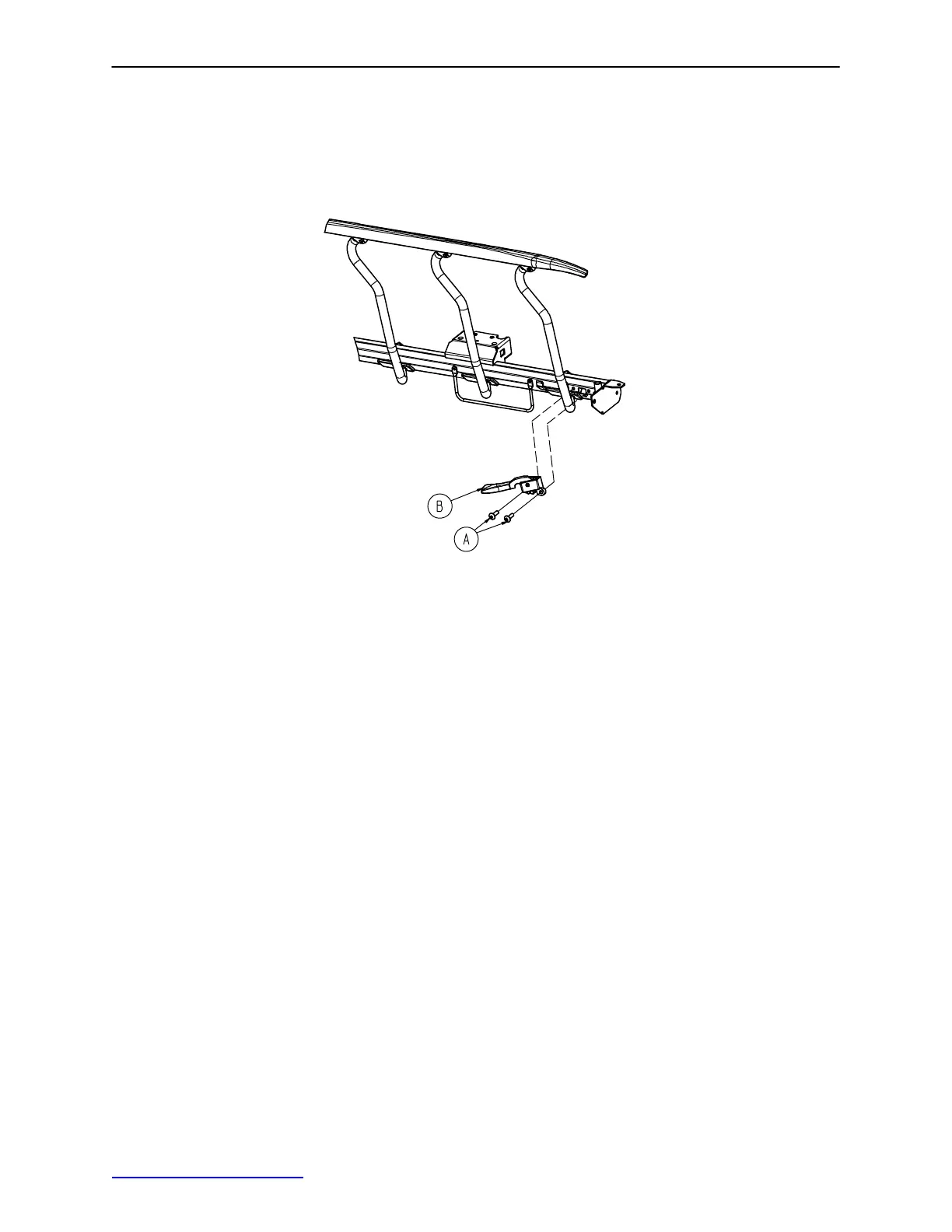

2. Remove the two bolts (A) holding the siderail latch (B) to the litter frame and discard the bolts and latch.
3. Using the new bolts provided in the kit, install the new siderail latch.
4. Verify proper latching and unlatching of the siderail before returning the stretcher to service.
