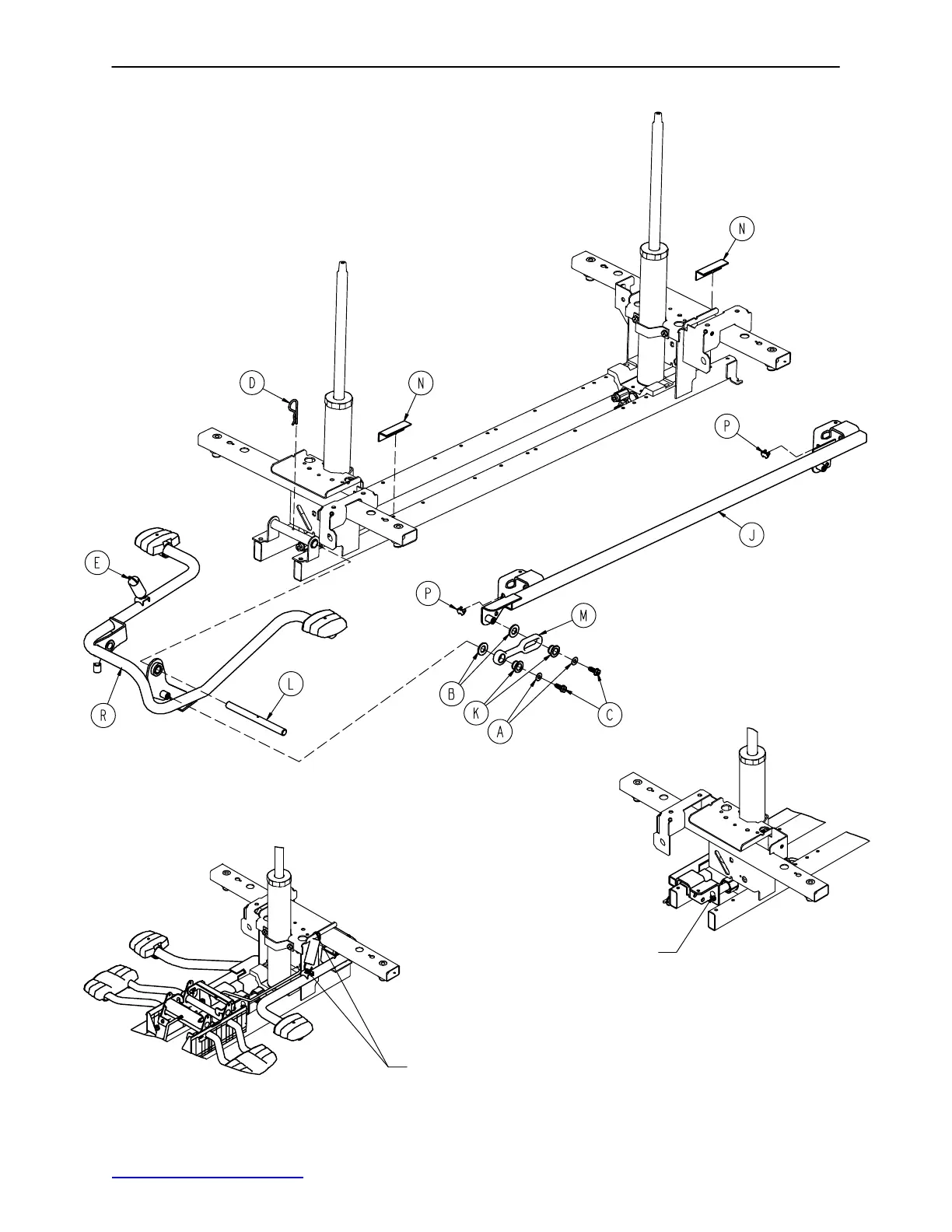

Base with Dual Side Hydraulics (Big Wheel Base)
37
Insert pump ram into keyhole
slot on both ends. Lower pump
connecting rod weldment onto
pump ram as shown
Insert spring hook thru slots in pump pedal
Attach other end onto jack tower as shown
Assembly part number 1040−005−500
(reference only)
